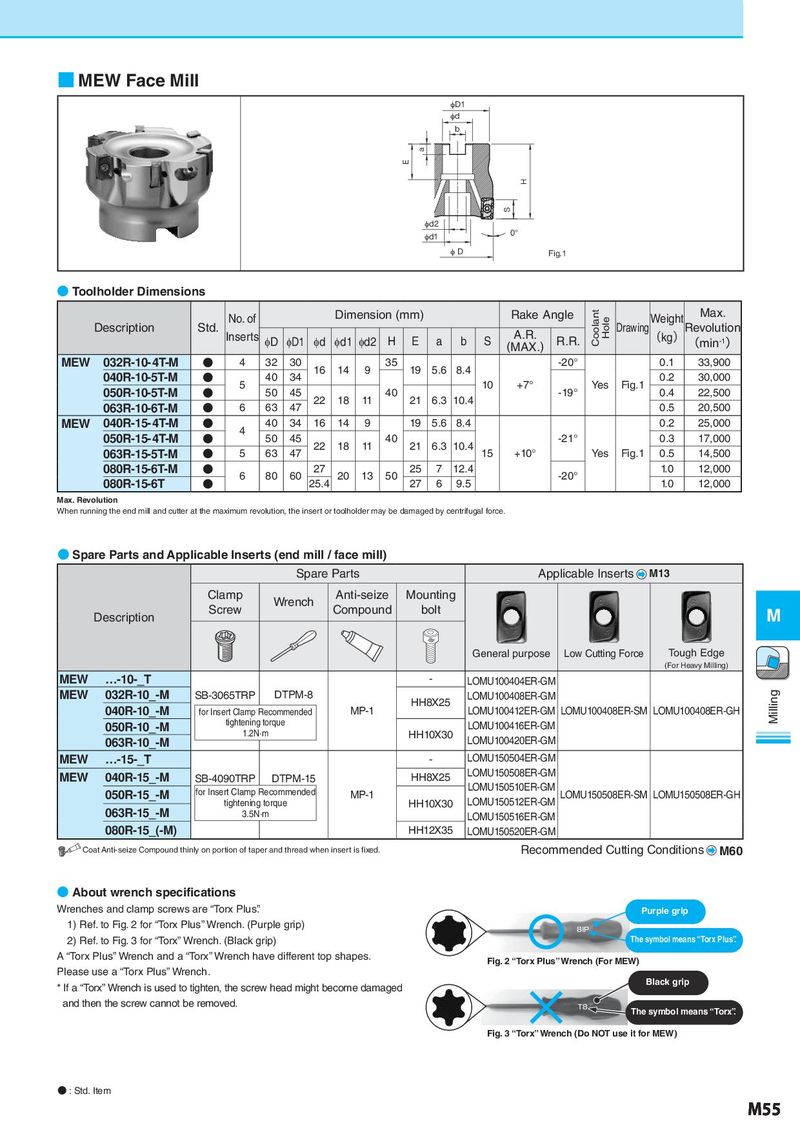

■ MEW Face Mill φD1 φd b a E H S φd2 φd1 0° φD Fig.1 ● Toolholder Dimensions No. of Dimension (mm) Rake Angle Coolant Hole Weight Max. Description Std. A.R. Drawing Revolution Inserts （kg） （min-1） φD φD1 φd φd1 φd2 H E a b S (MAX.) R.R. MEW 032R-10-4T-M ● 4 32 30 16 14 9 35 19 5.6 8.4 -20° 0.1 33,900 040R-10-5T-M ● 5 40 34 10 +7° Yes Fig.1 0.2 30,000 050R-10-5T-M ● 50 45 22 18 11 40 21 6.3 10.4 -19° 0.4 22,500 063R-10-6T-M ● 6 63 47 0.5 20,500 MEW 040R-15-4T-M ● 4 40 34 16 14 9 19 5.6 8.4 0.2 25,000 050R-15-4T-M ● 50 45 22 18 11 40 21 6.3 10.4 -21° 0.3 17,000 063R-15-5T-M ● 5 63 47 15 +10° Yes Fig.1 0.5 14,500 080R-15-6T-M ● 6 80 60 27 20 13 50 25 7 12.4 -20° 1.0 12,000 080R-15-6T ● 25.4 27 6 9.5 1.0 12,000 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. ● Spare Parts and Applicable Inserts (end mill / face mill) Spare Parts Applicable Inserts M13 Clamp Wrench Anti-seize Mounting Description Screw Compound bolt M General purpose Low Cutting Force Tough Edge (For Heavy Milling) MEW …-10-_T - LOMU100404ER-GM MEW 032R-10_-M SB-3065TRP DTPM-8 HH8X25 LOMU100408ER-GM Milling 040R-10_-M for Insert Clamp Recommended MP-1 LOMU100412ER-GM LOMU100408ER-SM LOMU100408ER-GH 050R-10_-M tightening torque LOMU100416ER-GM 1.2N·m HH10X30 LOMU100420ER-GM 063R-10_-M MEW …-15-_T - LOMU150504ER-GM MEW 040R-15_-M SB-4090TRP DTPM-15 HH8X25 LOMU150508ER-GM 050R-15_-M for Insert Clamp Recommended MP-1 LOMU150510ER-GM LOMU150508ER-SM LOMU150508ER-GH tightening torque HH10X30 LOMU150512ER-GM 063R-15_-M 3.5N·m LOMU150516ER-GM 080R-15_(-M) HH12X35 LOMU150520ER-GM Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions M60 ● About wrench specifications Wrenches and clamp screws are “Torx Plus”. Purple grip 1) Ref. to Fig. 2 for “Torx Plus” Wrench. (Purple grip) 8IP 2) Ref. to Fig. 3 for “Torx” Wrench. (Black grip) The symbol means “Torx Plus”. A “Torx Plus” Wrench and a “Torx” Wrench have different top shapes. Fig. 2 “Torx Plus” Wrench (For MEW) Please use a “Torx Plus” Wrench. * If a “Torx” Wrench is used to tighten, the screw head might become damaged Black grip and then the screw cannot be removed. Ｔ8 The symbol means “Torx”. Fig. 3 “Torx” Wrench (Do NOT use it for MEW) ● : Std. Item M55
