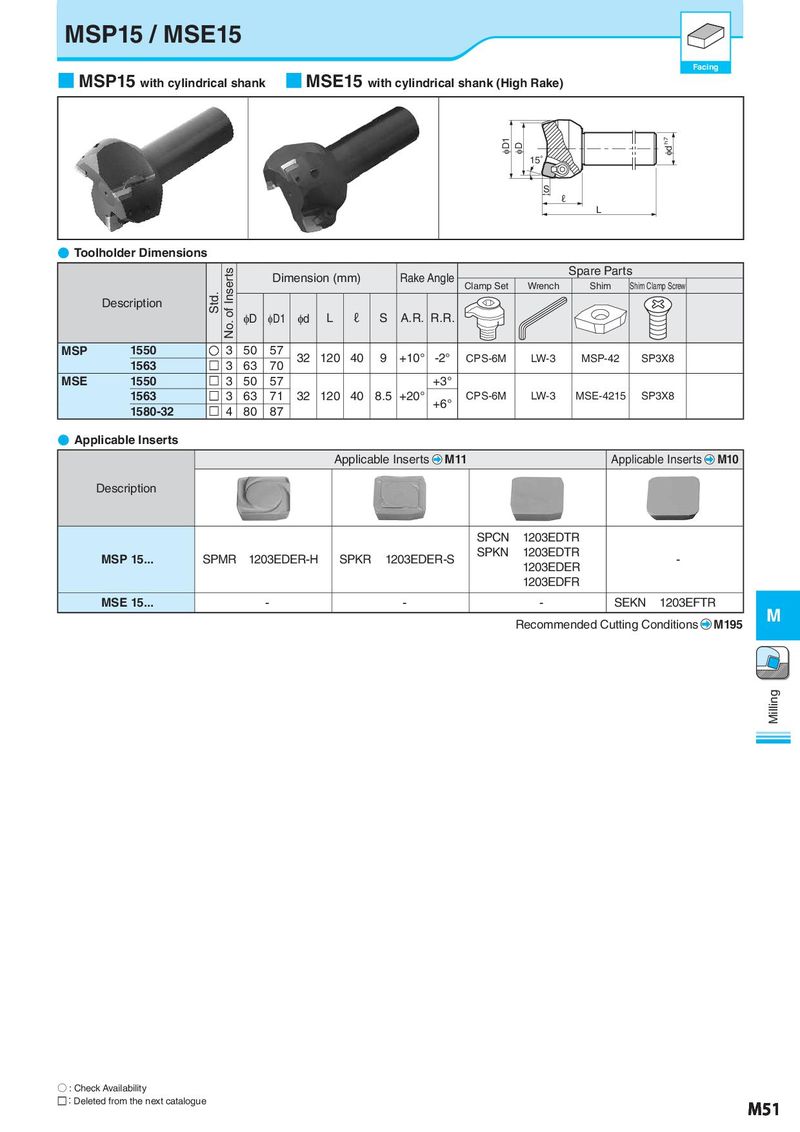

MSP15 / MSE15 Facing ■ MSP15 with cylindrical shank ■ MSE15 with cylindrical shank (High Rake) φD1 φD φd h7 15° S ℓ L ● Toolholder Dimensions No. of Inserts Dimension (mm) Rake Angle Spare Parts Clamp Set Wrench Shim Shim Clamp Screw Description Std. φD φD1 φd L ℓ S A.R. R.R. MSP 1550 ○ 3 50 57 32 120 40 9 +10° -2° CPS-6M LW-3 MSP-42 SP3X8 1563 U 3 63 70 MSE 1550 U 3 50 57 +3° 1563 U 3 63 71 32 120 40 8.5 +20° +6° CPS-6M LW-3 MSE-4215 SP3X8 1580-32 U 4 80 87 ● Applicable Inserts Applicable Inserts M11 Applicable Inserts M10 Description SPCN 1203EDTR MSP 15... SPMR 1203EDER-H SPKR 1203EDER-S SPKN 1203EDTR - 1203EDER 1203EDFR MSE 15... - - - SEKN 1203EFTR M Recommended Cutting Conditions M195 Milling ○ : Check Availability □：Deleted from the next catalogue M51
