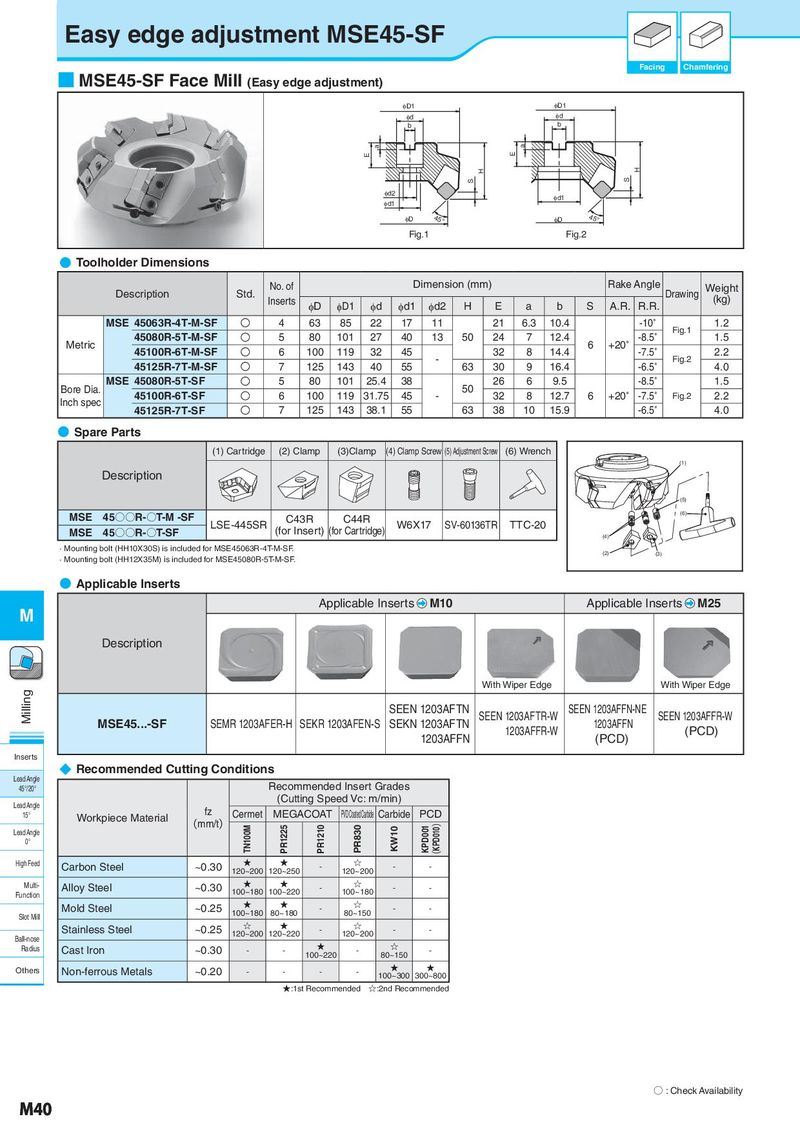

Easy edge adjustment MSE45-SF Facing Chamfering ■ MSE45-SF Face Mill (Easy edge adjustment) φD1 φD1 φd φd b b a a E E H 　　 H S S φd2 φd1 φd1 φD 45° φD 45° Fig.1 Fig.2 ● Toolholder Dimensions Description Std. No. of Dimension (mm) Rake Angle Drawing Weight Inserts φD φD1 φd φd1 φd2 H E a b S A.R. R.R. (kg) MSE 45063R-4T-M-SF O 4 63 85 22 17 11 21 6.3 10.4 -10ﾟ Fig.1 1.2 Metric 45080R-5T-M-SF O 5 80 101 27 40 13 50 24 7 12.4 6 +20ﾟ -8.5ﾟ 1.5 45100R-6T-M-SF O 6 100 119 32 45 - 32 8 14.4 -7.5ﾟ Fig.2 2.2 45125R-7T-M-SF O 7 125 143 40 55 63 30 9 16.4 -6.5ﾟ 4.0 Bore Dia. MSE 45080R-5T-SF O 5 80 101 25.4 38 50 26 6 9.5 -8.5ﾟ 1.5 Inch spec 45100R-6T-SF O 6 100 119 31.75 45 - 32 8 12.7 6 +20ﾟ -7.5ﾟ Fig.2 2.2 45125R-7T-SF O 7 125 143 38.1 55 63 38 10 15.9 -6.5ﾟ 4.0 ● Spare Parts (1) Cartridge (2) Clamp (3)Clamp (4) Clamp Screw (5) Adjustment Screw (6) Wrench (1) Description (5) MSE 45○○R-○T-M -SF C43R C44R (6) MSE 45○○R-○T-SF LSE-445SR (for Insert) (for Cartridge) W6X17 SV-60136TR TTC-20 (4) · Mounting bolt (HH10X30S) is included for MSE45063R-4T-M-SF. (2) (3) · Mounting bolt (HH12X35M) is included for MSE45080R-5T-M-SF. ● Applicable Inserts M Applicable Inserts M10 Applicable Inserts M25 Description With Wiper Edge With Wiper Edge Milling SEEN 1203AFTN SEEN 1203AFTR-W SEEN 1203AFFN-NE SEEN 1203AFFR-W MSE45...-SF SEMR 1203AFER-H SEKR 1203AFEN-S SEKN 1203AFTN 1203AFFR-W 1203AFFN (PCD) 1203AFFN (PCD) Inserts ◆ Recommended Cutting Conditions Lead Angle Recommended Insert Grades 45°/20° Lead Angle (Cutting Speed Vc: m/min) 15° Workpiece Material fz Cermet MEGACOAT PVDCoatedCarbide Carbide PCD Lead Angle （mm/t） TN100M PR1225 PR1210 PR830 KW10 KPD001 （KPD010） 0° High Feed Carbon Steel ~0.30 ★ ★ - ☆ - - 120~200 120~250 120~200 Multi- Alloy Steel ~0.30 ★ ★ - ☆ - - Function 100~180 100~220 100~180 Mold Steel ~0.25 ★ ★ - ☆ - - Slot Mill 100~180 80~180 80~150 Stainless Steel ~0.25 ☆ ★ - ☆ - - Ball-nose 120~200 120~220 120~200 Radius Cast Iron ~0.30 - - ★ - ☆ - 100~220 80~150 Others Non-ferrous Metals ~0.20 - - - - ★ ★ 100~300 300~800 ★:1st Recommended　☆:2nd Recommended ○ : Check Availability M40
