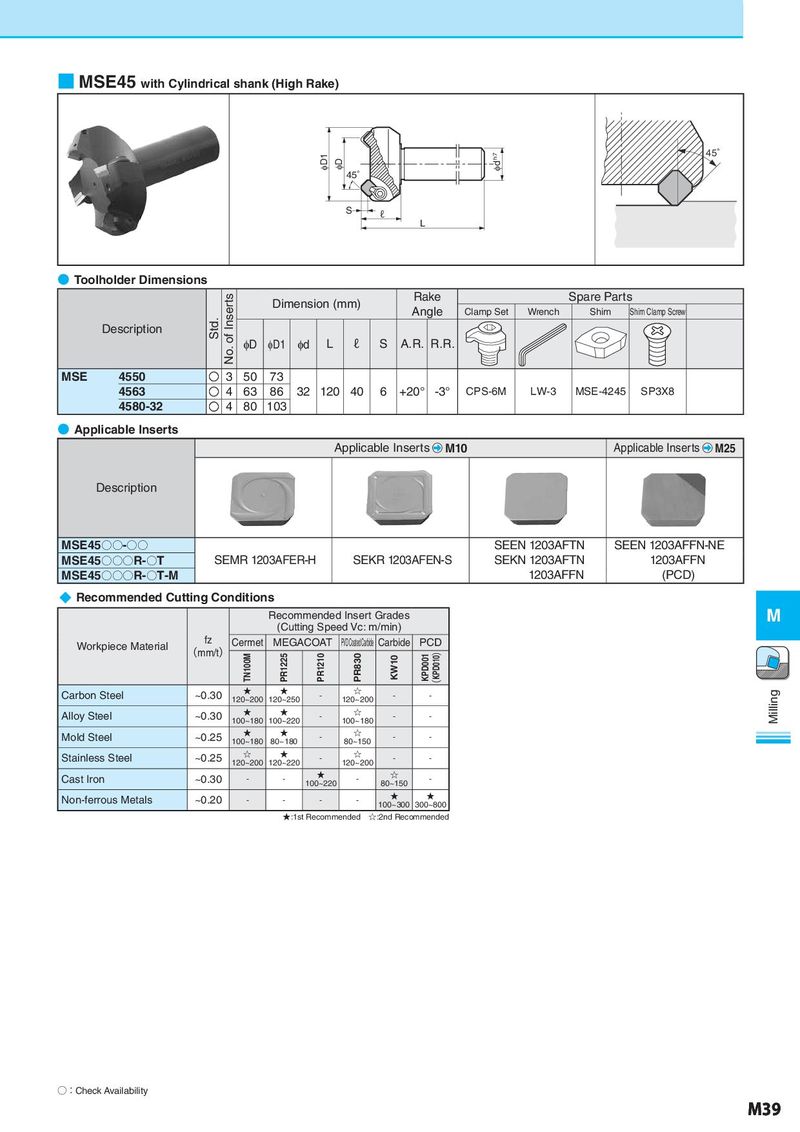

■ MSE45 with Cylindrical shank (High Rake) φD1 φd h7 45° φD 45° S ℓ L ● Toolholder Dimensions No. of Inserts Dimension (mm) Rake Spare Parts Angle Clamp Set Wrench Shim Shim Clamp Screw Description Std. φD φD1 φd L ℓ S A.R. R.R. MSE 4550 ○ 3 50 73 4563 ○ 4 63 86 32 120 40 6 +20° -3° CPS-6M LW-3 MSE-4245 SP3X8 4580-32 ○ 4 80 103 ● Applicable Inserts Applicable Inserts M10 Applicable Inserts M25 Description MSE45○○-○○ SEEN 1203AFTN SEEN 1203AFFN-NE MSE45○○○R-○T SEMR 1203AFER-H SEKR 1203AFEN-S SEKN 1203AFTN 1203AFFN MSE45○○○R-○T-M 1203AFFN (PCD) ◆ Recommended Cutting Conditions Recommended Insert Grades M (Cutting Speed Vc: m/min) Workpiece Material fz Cermet MEGACOAT PVDCoatedCarbide Carbide PCD （mm/t） TN100M PR1225 PR1210 PR830 KW10 KPD001 （KPD010） Carbon Steel ~0.30 ★ ★ - ☆ - - Milling 120~200 120~250 120~200 Alloy Steel ~0.30 ★ ★ - ☆ - - 100~180 100~220 100~180 Mold Steel ~0.25 ★ ★ - ☆ - - 100~180 80~180 80~150 Stainless Steel ~0.25 ☆ ★ - ☆ - - 120~200 120~220 120~200 Cast Iron ~0.30 - - ★ - ☆ - 100~220 80~150 Non-ferrous Metals ~0.20 - - - - ★ ★ 100~300 300~800 ★:1st Recommended　☆:2nd Recommended ○：Check Availability M39
