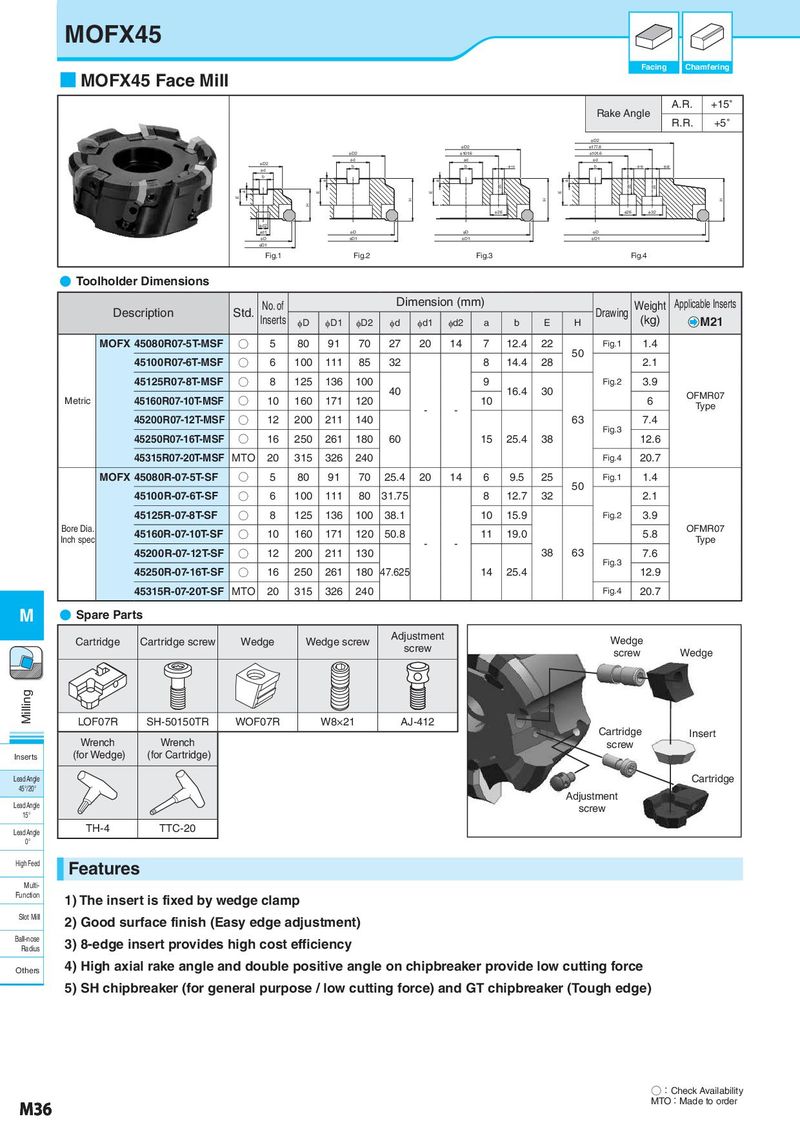

MOFX45 Facing Chamfering ■ MOFX45 Face Mill Rake Angle A.R. +15ﾟ R.R. +5ﾟ ID2 ID2 I177.8 ID2 I101.6 I101.6 Id Id Id ID2 b b I18 b I18 I22 Id b a a a 25 25 28 a E E E E H H H H I26 I26 I32 Id2 Id1 ID ID ID ID ID1 ID1 ID1 ID1 Fig.1 Fig.2 Fig.3 Fig.4 ● Toolholder Dimensions No. of Dimension (mm) Weight Applicable Inserts Description Std. Inserts φD φD1 φD2 φd φd1 φd2 a b E H Drawing (kg) M21 MOFX 45080R07-5T-MSF ◦ 5 80 91 70 27 20 14 7 12.4 22 Fig.1 1.4 45100R07-6T-MSF ◦ 6 100 111 85 32 8 14.4 28 50 2.1 45125R07-8T-MSF ◦ 8 125 136 100 9 Fig.2 3.9 45160R07-10T-MSF ◦ 10 160 171 120 40 10 16.4 30 6 OFMR07 Metric Type 45200R07-12T-MSF ◦ 12 200 211 140 - - 63 7.4 Fig.3 45250R07-16T-MSF ◦ 16 250 261 180 60 15 25.4 38 12.6 45315R07-20T-MSF MTO 20 315 326 240 Fig.4 20.7 MOFX 45080R-07-5T-SF ◦ 5 80 91 70 25.4 20 14 6 9.5 25 Fig.1 1.4 45100R-07-6T-SF ◦ 6 100 111 80 31.75 8 12.7 32 50 2.1 45125R-07-8T-SF ◦ 8 125 136 100 38.1 10 15.9 Fig.2 3.9 Bore Dia. 45160R-07-10T-SF ◦ 10 160 171 120 50.8 11 19.0 5.8 OFMR07 Inch spec - - Type 45200R-07-12T-SF ◦ 12 200 211 130 38 63 7.6 Fig.3 45250R-07-16T-SF ◦ 16 250 261 180 47.625 14 25.4 12.9 45315R-07-20T-SF MTO 20 315 326 240 Fig.4 20.7 M ● Spare Parts Cartridge Cartridge screw Wedge Wedge screw Adjustment Wedge screw screw Wedge Milling LOF07R SH-50150TR WOF07R W8×21 AJ-412 Cartridge Insert Wrench Wrench screw Inserts (for Wedge) (for Cartridge) Lead Angle Cartridge 45°/20° Adjustment Lead Angle screw 15° Lead Angle TH-4 TTC-20 0° High Feed Features Multi- Function 1) The insert is fixed by wedge clamp Slot Mill 2) Good surface finish (Easy edge adjustment) Ball-nose 3) 8-edge insert provides high cost efficiency Radius Others 4) High axial rake angle and double positive angle on chipbreaker provide low cutting force 5) SH chipbreaker (for general purpose / low cutting force) and GT chipbreaker (Tough edge) ◦：Check Availability M36 MTO：Made to order
