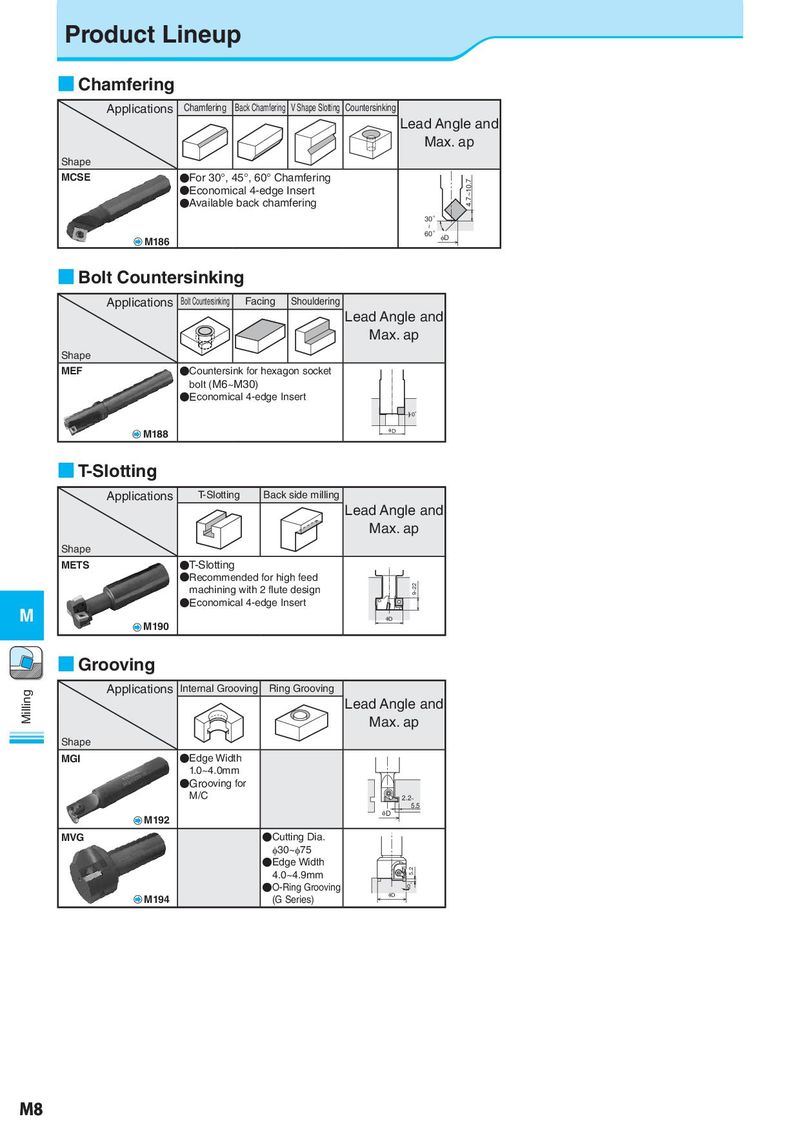

Product Lineup ■ Chamfering Applications Chamfering Back Chamfering V Shape Slotting Countersinking Lead Angle and Max. ap Shape MCSE ●For 30°, 45°, 60° Chamfering 4.7~10.7 ●Economical 4-edge Insert ●Available back chamfering 30° ~ M186 60° ID ■ Bolt Countersinking Applications Bolt Countersinking Facing Shouldering Lead Angle and Max. ap Shape MEF ●Countersink for hexagon socket bolt (M6~M30) ●Economical 4-edge Insert 0゜ M188 ID ■ T-Slotting Applications T-Slotting Back side milling Lead Angle and Max. ap Shape METS ●T-Slotting ●Recommended for high feed machining with 2 flute design 9~22 ●Economical 4-edge Insert M ID M190 ■ Grooving Milling Applications Internal Grooving Ring Grooving Lead Angle and Max. ap Shape MGI ●Edge Width 1.0~4.0mm ●Grooving for M/C 2.2~ 5.5 M192 ID MVG ●Cutting Dia. φ30~φ75 ●Edge Width 5.2 4.0~4.9mm ●O-Ring Grooving 0゜ M194 (G Series) ID M8
