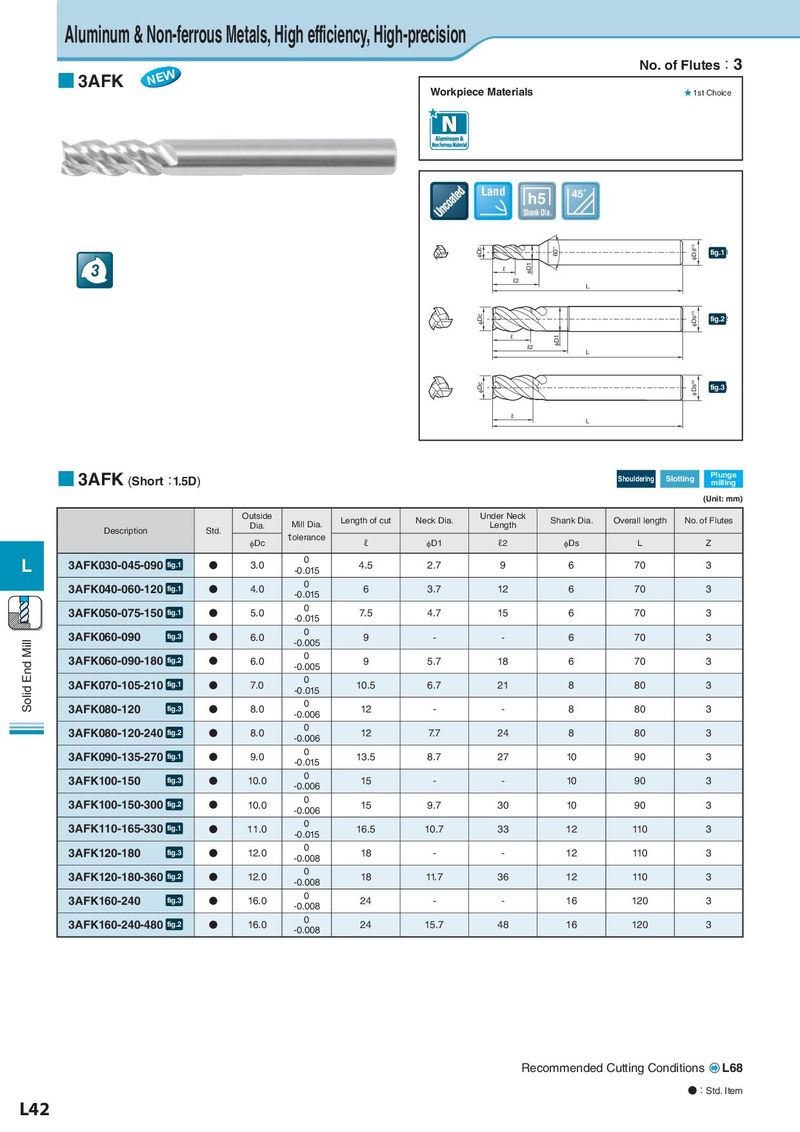

Aluminum & Non-ferrous Metals, High efficiency, High-precision ■ 3AFK　 1(: No. of Flutes：3 Workpiece Materials ★ 1st Choice Land h5 45˚ Shank Dia. φDc 60° φDsh5 fig図.13 3 ℓ φD1 ℓ2 L φDc φDsh5 fig図.22 ℓ φD1 ℓ2 L φDc φDsh5 fig図.31 ℓ L ■ 3AFK (Short：1.5D) 　 Shouldering Slotting Plunge milling (Unit: mm) Outside Length of cut Neck Dia. Under Neck Shank Dia. Overall length No. of Flutes Description Std. Dia. Mill Dia. Length φDc tolerance ℓ φD1 ℓ2 φDs L Z L 3AFK030-045-090 fig.1 N 3.0 0 4.5 2.7 9 6 70 3 -0.015 3AFK040-060-120 fig.1 N 4.0 0 6 3.7 12 6 70 3 -0.015 3AFK050-075-150 fig.1 N 5.0 0 7.5 4.7 15 6 70 3 -0.015 3AFK060-090 fig.3 N 6.0 0 9 - - 6 70 3 Solid End Mill -0.005 3AFK060-090-180 fig.2 N 6.0 0 9 5.7 18 6 70 3 -0.005 3AFK070-105-210 fig.1 N 7.0 0 10.5 6.7 21 8 80 3 -0.015 3AFK080-120 fig.3 N 8.0 0 12 - - 8 80 3 -0.006 3AFK080-120-240 fig.2 N 8.0 0 12 7.7 24 8 80 3 -0.006 3AFK090-135-270 fig.1 N 9.0 0 13.5 8.7 27 10 90 3 -0.015 3AFK100-150 fig.3 N 10.0 0 15 - - 10 90 3 -0.006 3AFK100-150-300 fig.2 N 10.0 0 15 9.7 30 10 90 3 -0.006 3AFK110-165-330 fig.1 N 11.0 0 16.5 10.7 33 12 110 3 -0.015 3AFK120-180 fig.3 N 12.0 0 18 - - 12 110 3 -0.008 3AFK120-180-360 fig.2 N 12.0 0 18 11.7 36 12 110 3 -0.008 3AFK160-240 fig.3 N 16.0 0 24 - - 16 120 3 -0.008 3AFK160-240-480 fig.2 N 16.0 0 24 15.7 48 16 120 3 -0.008 Recommended Cutting Conditions L68 ●：Std. Item L42
