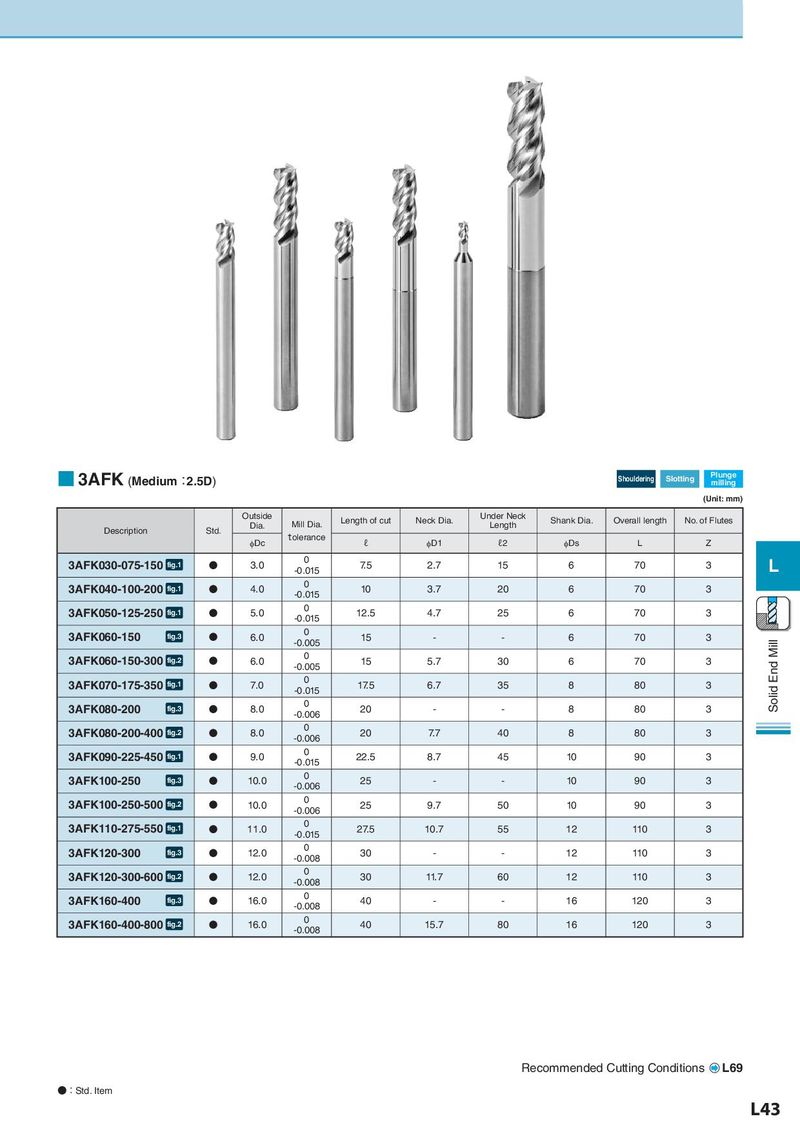

■ 3AFK (Medium：2.5D) 　 Shouldering Slotting Plunge milling (Unit: mm) Outside Length of cut Neck Dia. Under Neck Shank Dia. Overall length No. of Flutes Description Std. Dia. Mill Dia. Length φDc tolerance ℓ φD1 ℓ2 φDs L Z 3AFK030-075-150 fig.1 N 3.0 0 7.5 2.7 15 6 70 3 L -0.015 3AFK040-100-200 fig.1 N 4.0 0 10 3.7 20 6 70 3 -0.015 3AFK050-125-250 fig.1 N 5.0 0 12.5 4.7 25 6 70 3 -0.015 3AFK060-150 fig.3 N 6.0 0 15 - - 6 70 3 -0.005 Solid End Mill 3AFK060-150-300 fig.2 N 6.0 0 15 5.7 30 6 70 3 -0.005 3AFK070-175-350 fig.1 N 7.0 0 17.5 6.7 35 8 80 3 -0.015 3AFK080-200 fig.3 N 8.0 0 20 - - 8 80 3 -0.006 3AFK080-200-400 fig.2 N 8.0 0 20 7.7 40 8 80 3 -0.006 3AFK090-225-450 fig.1 N 9.0 0 22.5 8.7 45 10 90 3 -0.015 3AFK100-250 fig.3 N 10.0 0 25 - - 10 90 3 -0.006 3AFK100-250-500 fig.2 N 10.0 0 25 9.7 50 10 90 3 -0.006 3AFK110-275-550 fig.1 N 11.0 0 27.5 10.7 55 12 110 3 -0.015 3AFK120-300 fig.3 N 12.0 0 30 - - 12 110 3 -0.008 3AFK120-300-600 fig.2 N 12.0 0 30 11.7 60 12 110 3 -0.008 3AFK160-400 fig.3 N 16.0 0 40 - - 16 120 3 -0.008 3AFK160-400-800 fig.2 N 16.0 0 40 15.7 80 16 120 3 -0.008 Recommended Cutting Conditions L69 ●：Std. Item L43
