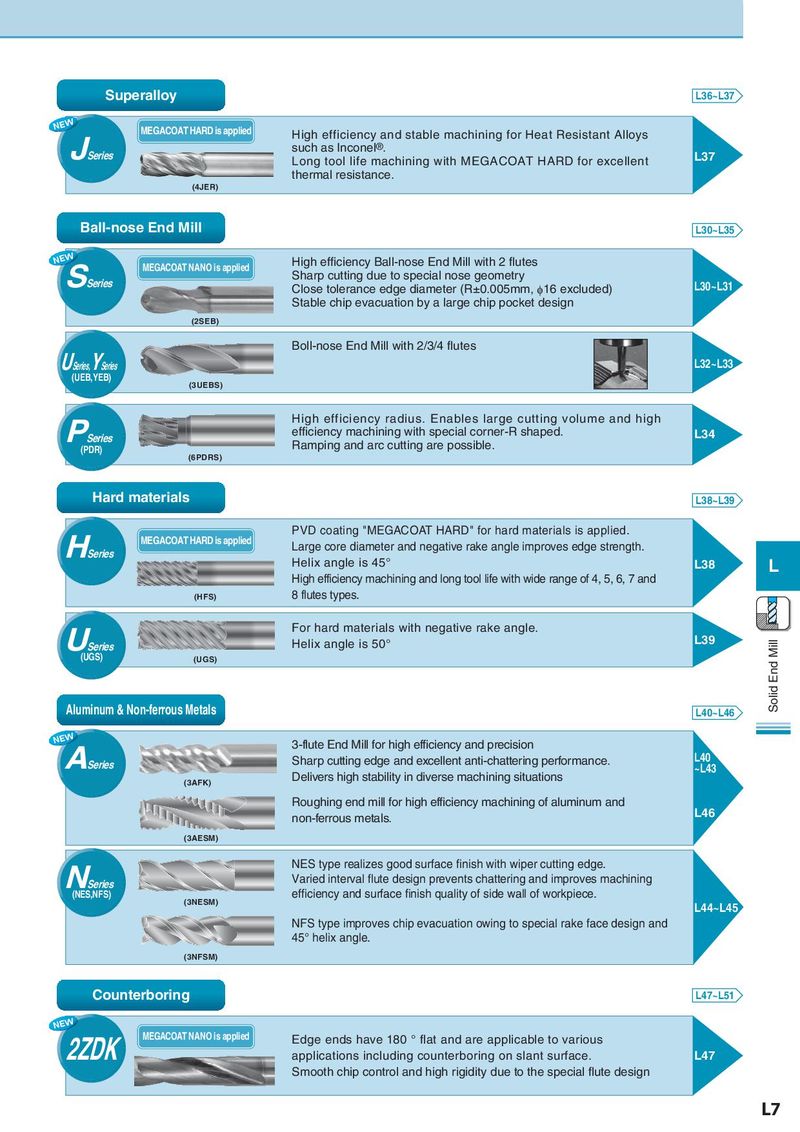

Superalloy L36~L37 1(: MEGACOAT HARD is applied High efficiency and stable machining for Heat Resistant Alloys JSeries such as Inconel®. L37 Long tool life machining with MEGACOAT HARD for excellent thermal resistance. (4JER) Ball-nose End Mill L30~L35 1(: MEGACOAT NANO is applied High efficiency Ball-nose End Mill with 2 flutes SSeries Sharp cutting due to special nose geometry Close tolerance edge diameter (R±0.005mm, φ16 excluded) L30~L31 Stable chip evacuation by a large chip pocket design (2SEB) Boll-nose End Mill with 2/3/4 flutes U Y Series, Series L32~L33 (UEB,YEB) (3UEBS) PSeries High efficiency radius. Enables large cutting volume and high efficiency machining with special corner-R shaped. L34 (PDR) Ramping and arc cutting are possible. (6PDRS) Hard materials L38~L39 HSeries MEGACOAT HARD is applied PVD coating "MEGACOAT HARD" for hard materials is applied. Large core diameter and negative rake angle improves edge strength. Helix angle is 45° L38 L High efficiency machining and long tool life with wide range of 4, 5, 6, 7 and (HFS) 8 flutes types. USeries For hard materials with negative rake angle. Helix angle is 50° L39 Solid End Mill (UGS) (UGS) Aluminum & Non-ferrous Metals L40~L46 1(: 3-flute End Mill for high efficiency and precision ASeries Sharp cutting edge and excellent anti-chattering performance. L40 ~L43 Delivers high stability in diverse machining situations (3AFK) Roughing end mill for high efficiency machining of aluminum and non-ferrous metals. L46 (3AESM) NSeries NES type realizes good surface finish with wiper cutting edge. Varied interval flute design prevents chattering and improves machining (NES,NFS) (3NESM) efficiency and surface finish quality of side wall of workpiece. L44~L45 NFS type improves chip evacuation owing to special rake face design and 45° helix angle. (3NFSM) Counterboring L47~L51 1(: 2ZDK MEGACOAT NANO is applied Edge ends have 180 ° flat and are applicable to various applications including counterboring on slant surface. L47 Smooth chip control and high rigidity due to the special flute design L7
