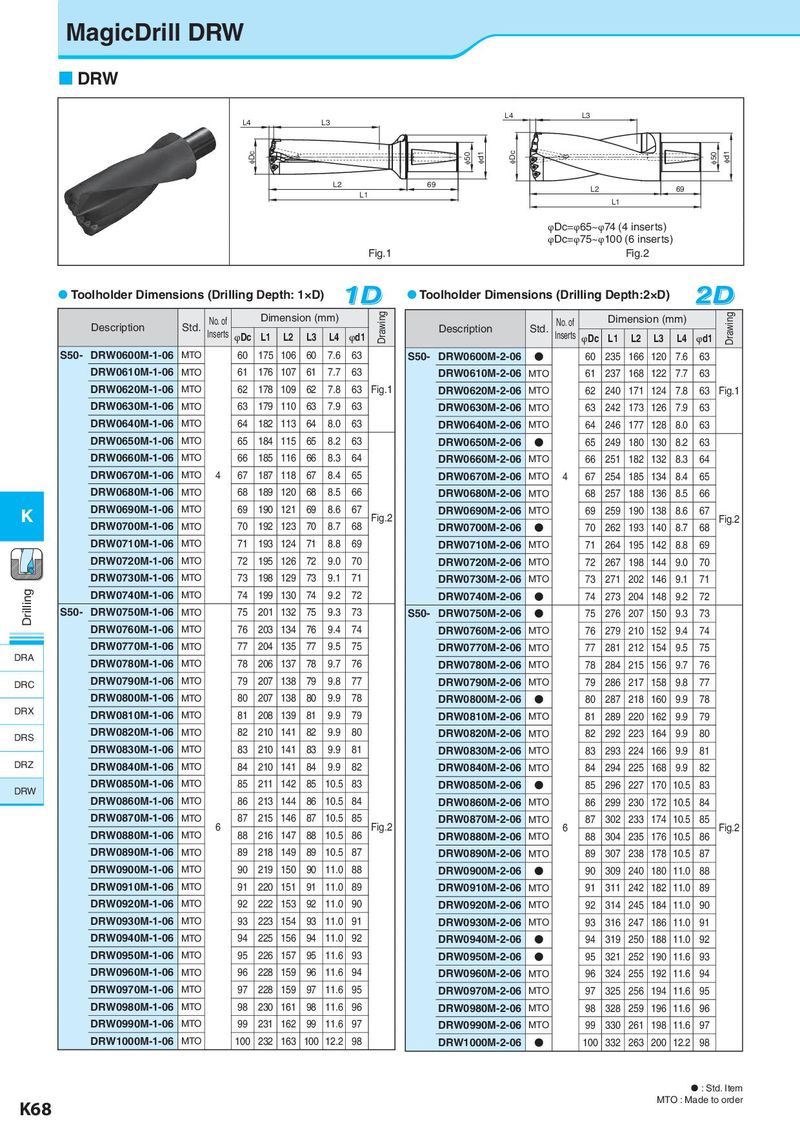

MagicDrill DRW  DRW L4 L3 L4 L3 φDc φ50 φd1 φDc φ50 φd1 L2 69 L2 69 L1 L1 φDc=φ65~φ74 (4 inserts) φDc=φ75~φ100 (6 inserts) Fig.1 Fig.2  Toolholder Dimensions (Drilling Depth: 1×D) 1D  Toolholder Dimensions (Drilling Depth:2×D) 2D Description Std. No. of Dimension (mm) Drawing No. of Dimension (mm) Drawing Inserts φDc L1 L2 L3 L4 φd1 Description Std. Inserts φDc L1 L2 L3 L4 φd1 S50- DRW0600M-1-06 MTO 60 175 106 60 7.6 63 S50- DRW0600M-2-06 ● 60 235 166 120 7.6 63 DRW0610M-1-06 MTO 61 176 107 61 7.7 63 DRW0610M-2-06 MTO 61 237 168 122 7.7 63 DRW0620M-1-06 MTO 62 178 109 62 7.8 63 Fig.1 DRW0620M-2-06 MTO 62 240 171 124 7.8 63 Fig.1 DRW0630M-1-06 MTO 63 179 110 63 7.9 63 DRW0630M-2-06 MTO 63 242 173 126 7.9 63 DRW0640M-1-06 MTO 64 182 113 64 8.0 63 DRW0640M-2-06 MTO 64 246 177 128 8.0 63 DRW0650M-1-06 MTO 65 184 115 65 8.2 63 DRW0650M-2-06 ● 65 249 180 130 8.2 63 DRW0660M-1-06 MTO 66 185 116 66 8.3 64 DRW0660M-2-06 MTO 66 251 182 132 8.3 64 DRW0670M-1-06 MTO 4 67 187 118 67 8.4 65 DRW0670M-2-06 MTO 4 67 254 185 134 8.4 65 DRW0680M-1-06 MTO 68 189 120 68 8.5 66 DRW0680M-2-06 MTO 68 257 188 136 8.5 66 K DRW0690M-1-06 MTO 69 190 121 69 8.6 67 Fig.2 DRW0690M-2-06 MTO 69 259 190 138 8.6 67 DRW0700M-1-06 MTO 70 192 123 70 8.7 68 DRW0700M-2-06 ● 70 262 193 140 8.7 68 Fig.2 DRW0710M-1-06 MTO 71 193 124 71 8.8 69 DRW0710M-2-06 MTO 71 264 195 142 8.8 69 DRW0720M-1-06 MTO 72 195 126 72 9.0 70 DRW0720M-2-06 MTO 72 267 198 144 9.0 70 DRW0730M-1-06 MTO 73 198 129 73 9.1 71 DRW0730M-2-06 MTO 73 271 202 146 9.1 71 Drilling DRW0740M-1-06 MTO 74 199 130 74 9.2 72 DRW0740M-2-06 ● 74 273 204 148 9.2 72 S50- DRW0750M-1-06 MTO 75 201 132 75 9.3 73 S50- DRW0750M-2-06 ● 75 276 207 150 9.3 73 DRW0760M-1-06 MTO 76 203 134 76 9.4 74 DRW0760M-2-06 MTO 76 279 210 152 9.4 74 DRW0770M-1-06 MTO 77 204 135 77 9.5 75 DRW0770M-2-06 MTO 77 281 212 154 9.5 75 DRA DRW0780M-1-06 MTO 78 206 137 78 9.7 76 DRW0780M-2-06 MTO 78 284 215 156 9.7 76 DRC DRW0790M-1-06 MTO 79 207 138 79 9.8 77 DRW0790M-2-06 MTO 79 286 217 158 9.8 77 DRW0800M-1-06 MTO 80 207 138 80 9.9 78 DRW0800M-2-06 ● 80 287 218 160 9.9 78 DRX DRW0810M-1-06 MTO 81 208 139 81 9.9 79 DRW0810M-2-06 MTO 81 289 220 162 9.9 79 DRS DRW0820M-1-06 MTO 82 210 141 82 9.9 80 DRW0820M-2-06 MTO 82 292 223 164 9.9 80 DRW0830M-1-06 MTO 83 210 141 83 9.9 81 DRW0830M-2-06 MTO 83 293 224 166 9.9 81 DRZ DRW0840M-1-06 MTO 84 210 141 84 9.9 82 DRW0840M-2-06 MTO 84 294 225 168 9.9 82 DRW DRW0850M-1-06 MTO 85 211 142 85 10.5 83 DRW0850M-2-06 ● 85 296 227 170 10.5 83 DRW0860M-1-06 MTO 86 213 144 86 10.5 84 DRW0860M-2-06 MTO 86 299 230 172 10.5 84 DRW0870M-1-06 MTO 6 87 215 146 87 10.5 85 Fig.2 DRW0870M-2-06 MTO 87 302 233 174 10.5 85 DRW0880M-1-06 MTO 88 216 147 88 10.5 86 DRW0880M-2-06 MTO 6 88 304 235 176 10.5 86 Fig.2 DRW0890M-1-06 MTO 89 218 149 89 10.5 87 DRW0890M-2-06 MTO 89 307 238 178 10.5 87 DRW0900M-1-06 MTO 90 219 150 90 11.0 88 DRW0900M-2-06 ● 90 309 240 180 11.0 88 DRW0910M-1-06 MTO 91 220 151 91 11.0 89 DRW0910M-2-06 MTO 91 311 242 182 11.0 89 DRW0920M-1-06 MTO 92 222 153 92 11.0 90 DRW0920M-2-06 MTO 92 314 245 184 11.0 90 DRW0930M-1-06 MTO 93 223 154 93 11.0 91 DRW0930M-2-06 MTO 93 316 247 186 11.0 91 DRW0940M-1-06 MTO 94 225 156 94 11.0 92 DRW0940M-2-06 ● 94 319 250 188 11.0 92 DRW0950M-1-06 MTO 95 226 157 95 11.6 93 DRW0950M-2-06 ● 95 321 252 190 11.6 93 DRW0960M-1-06 MTO 96 228 159 96 11.6 94 DRW0960M-2-06 MTO 96 324 255 192 11.6 94 DRW0970M-1-06 MTO 97 228 159 97 11.6 95 DRW0970M-2-06 MTO 97 325 256 194 11.6 95 DRW0980M-1-06 MTO 98 230 161 98 11.6 96 DRW0980M-2-06 MTO 98 328 259 196 11.6 96 DRW0990M-1-06 MTO 99 231 162 99 11.6 97 DRW0990M-2-06 MTO 99 330 261 198 11.6 97 DRW1000M-1-06 MTO 100 232 163 100 12.2 98 DRW1000M-2-06 ● 100 332 263 200 12.2 98  : Std. Item K68 MTO : Made to order
