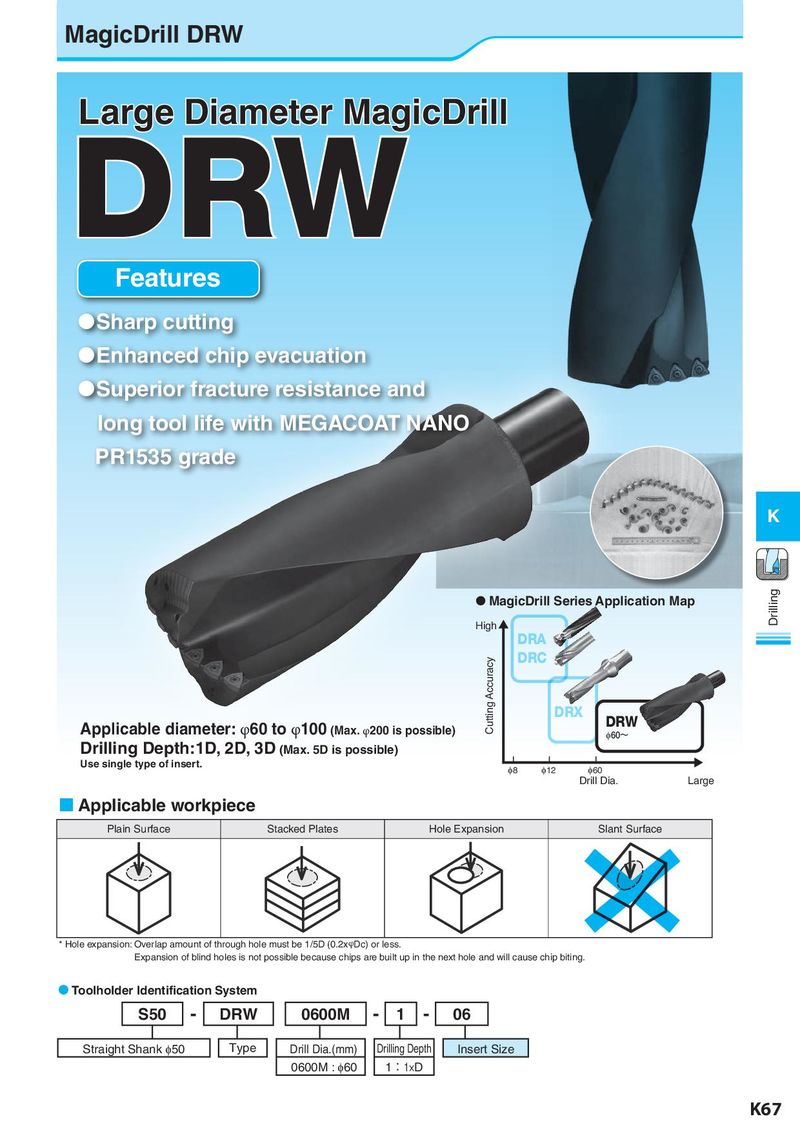

MagicDrill DRW Large Diameter MagicDrill DRW Features Sharp cutting Enhanced chip evacuation Superior fracture resistance and long tool life with MEGACOAT NANO PR1535 grade K  MagicDrill Series Application Map Drilling High DRA Cutting Accuracy DRC DRX DRW Applicable diameter: φ60 to φ100 (Max. φ200 is possible) φ60～ Drilling Depth:1D, 2D, 3D (Max. 5D is possible) Use single type of insert. φ8 φ12 φ60 Drill Dia. Large  Applicable workpiece Plain Surface Stacked Plates Hole Expansion Slant Surface * Hole expansion: Overlap amount of through hole must be 1/5D (0.2xφDc) or less. Expansion of blind holes is not possible because chips are built up in the next hole and will cause chip biting.  Toolholder Identification System S50 - DRW 0600M - 1 - 06 Straight Shank I50 Type Drill Dia.(mm) Drilling Depth Insert Size 0600M : I60 1：1×D K67
