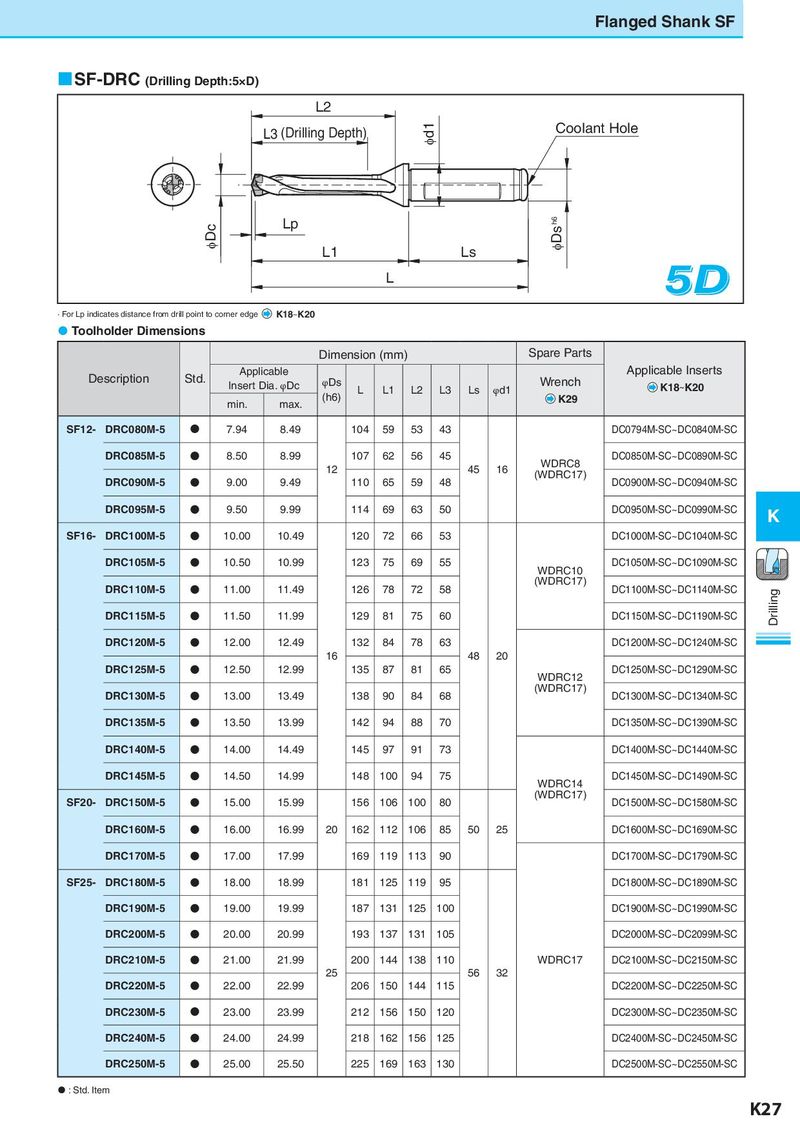

Flanged Shank SF  SF-DRC (Drilling Depth:5×D) L2 L3 (Drilling Depth) φd1 Coolant Hole φDc Lp φDsh6 L1 Ls L 5D · For Lp indicates distance from drill point to corner edge K18~K20  Toolholder Dimensions Dimension (mm) Spare Parts Description Std. Applicable Applicable Inserts Insert Dia. φDc φDs L L1 L2 L3 Ls φd1 Wrench K18~K20 min. max. (h6) K29 SF12- DRC080M-5 N 7.94 8.49 104 59 53 43 DC0794M-SC~DC0840M-SC DRC085M-5 N 8.50 8.99 107 62 56 45 WDRC8 DC0850M-SC~DC0890M-SC 12 45 16 (WDRC17) DRC090M-5 N 9.00 9.49 110 65 59 48 DC0900M-SC~DC0940M-SC DRC095M-5 N 9.50 9.99 114 69 63 50 DC0950M-SC~DC0990M-SC K SF16- DRC100M-5 N 10.00 10.49 120 72 66 53 DC1000M-SC~DC1040M-SC DRC105M-5 N 10.50 10.99 123 75 69 55 WDRC10 DC1050M-SC~DC1090M-SC DRC110M-5 N 11.00 11.49 126 78 72 58 (WDRC17) DC1100M-SC~DC1140M-SC DRC115M-5 N 11.50 11.99 129 81 75 60 DC1150M-SC~DC1190M-SC Drilling DRC120M-5 N 12.00 12.49 132 84 78 63 DC1200M-SC~DC1240M-SC 16 48 20 DRC125M-5 N 12.50 12.99 135 87 81 65 WDRC12 DC1250M-SC~DC1290M-SC DRC130M-5 N 13.00 13.49 138 90 84 68 (WDRC17) DC1300M-SC~DC1340M-SC DRC135M-5 N 13.50 13.99 142 94 88 70 DC1350M-SC~DC1390M-SC DRC140M-5 N 14.00 14.49 145 97 91 73 DC1400M-SC~DC1440M-SC DRC145M-5 N 14.50 14.99 148 100 94 75 WDRC14 DC1450M-SC~DC1490M-SC SF20- DRC150M-5 N 15.00 15.99 156 106 100 80 (WDRC17) DC1500M-SC~DC1580M-SC DRC160M-5 N 16.00 16.99 20 162 112 106 85 50 25 DC1600M-SC~DC1690M-SC DRC170M-5 N 17.00 17.99 169 119 113 90 DC1700M-SC~DC1790M-SC SF25- DRC180M-5 N 18.00 18.99 181 125 119 95 DC1800M-SC~DC1890M-SC DRC190M-5 N 19.00 19.99 187 131 125 100 DC1900M-SC~DC1990M-SC DRC200M-5 N 20.00 20.99 193 137 131 105 DC2000M-SC~DC2099M-SC DRC210M-5 N 21.00 21.99 200 144 138 110 WDRC17 DC2100M-SC~DC2150M-SC 25 56 32 DRC220M-5 N 22.00 22.99 206 150 144 115 DC2200M-SC~DC2250M-SC DRC230M-5 N 23.00 23.99 212 156 150 120 DC2300M-SC~DC2350M-SC DRC240M-5 N 24.00 24.99 218 162 156 125 DC2400M-SC~DC2450M-SC DRC250M-5 N 25.00 25.50 225 169 163 130 DC2500M-SC~DC2550M-SC  : Std. Item K27
