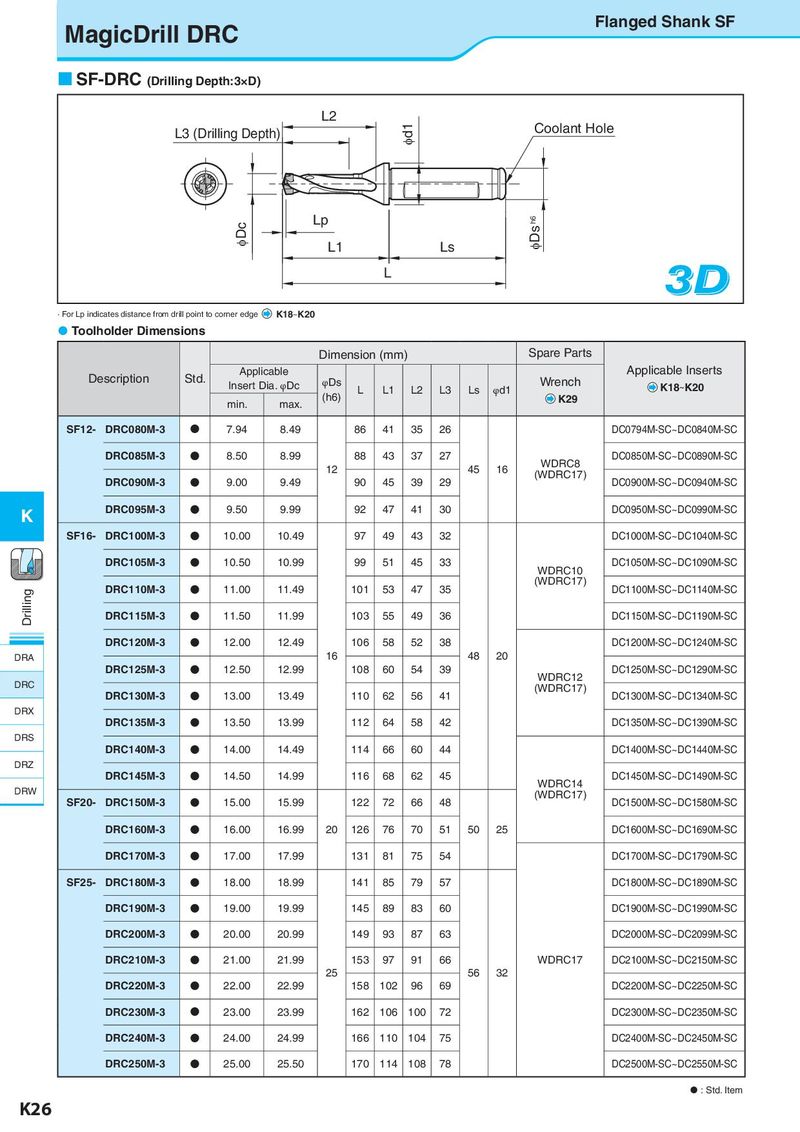

MagicDrill DRC Flanged Shank SF  SF-DRC (Drilling Depth:3×D) L2 Id1 L3 (Drilling Depth) Coolant Hole IDc Lp IDs h6 L1 Ls L 3D · For Lp indicates distance from drill point to corner edge K18~K20  Toolholder Dimensions Dimension (mm) Spare Parts Description Std. Applicable Applicable Inserts Insert Dia. φDc φDs L L1 L2 L3 Ls φd1 Wrench K18~K20 min. max. (h6) K29 SF12- DRC080M-3 N 7.94 8.49 86 41 35 26 DC0794M-SC~DC0840M-SC DRC085M-3 N 8.50 8.99 88 43 37 27 WDRC8 DC0850M-SC~DC0890M-SC 12 45 16 (WDRC17) DRC090M-3 N 9.00 9.49 90 45 39 29 DC0900M-SC~DC0940M-SC K DRC095M-3 N 9.50 9.99 92 47 41 30 DC0950M-SC~DC0990M-SC SF16- DRC100M-3 N 10.00 10.49 97 49 43 32 DC1000M-SC~DC1040M-SC DRC105M-3 N 10.50 10.99 99 51 45 33 WDRC10 DC1050M-SC~DC1090M-SC DRC110M-3 N 11.00 11.49 101 53 47 35 (WDRC17) DC1100M-SC~DC1140M-SC Drilling DRC115M-3 N 11.50 11.99 103 55 49 36 DC1150M-SC~DC1190M-SC DRC120M-3 N 12.00 12.49 106 58 52 38 DC1200M-SC~DC1240M-SC DRA 16 48 20 DRC125M-3 N 12.50 12.99 108 60 54 39 WDRC12 DC1250M-SC~DC1290M-SC DRC (WDRC17) DRC130M-3 N 13.00 13.49 110 62 56 41 DC1300M-SC~DC1340M-SC DRX DRC135M-3 N 13.50 13.99 112 64 58 42 DC1350M-SC~DC1390M-SC DRS DRC140M-3 N 14.00 14.49 114 66 60 44 DC1400M-SC~DC1440M-SC DRZ DRC145M-3 N 14.50 14.99 116 68 62 45 WDRC14 DC1450M-SC~DC1490M-SC DRW (WDRC17) SF20- DRC150M-3 N 15.00 15.99 122 72 66 48 DC1500M-SC~DC1580M-SC DRC160M-3 N 16.00 16.99 20 126 76 70 51 50 25 DC1600M-SC~DC1690M-SC DRC170M-3 N 17.00 17.99 131 81 75 54 DC1700M-SC~DC1790M-SC SF25- DRC180M-3 N 18.00 18.99 141 85 79 57 DC1800M-SC~DC1890M-SC DRC190M-3 N 19.00 19.99 145 89 83 60 DC1900M-SC~DC1990M-SC DRC200M-3 N 20.00 20.99 149 93 87 63 DC2000M-SC~DC2099M-SC DRC210M-3 N 21.00 21.99 153 97 91 66 WDRC17 DC2100M-SC~DC2150M-SC 25 56 32 DRC220M-3 N 22.00 22.99 158 102 96 69 DC2200M-SC~DC2250M-SC DRC230M-3 N 23.00 23.99 162 106 100 72 DC2300M-SC~DC2350M-SC DRC240M-3 N 24.00 24.99 166 110 104 75 DC2400M-SC~DC2450M-SC DRC250M-3 N 25.00 25.50 170 114 108 78 DC2500M-SC~DC2550M-SC  : Std. Item K26
