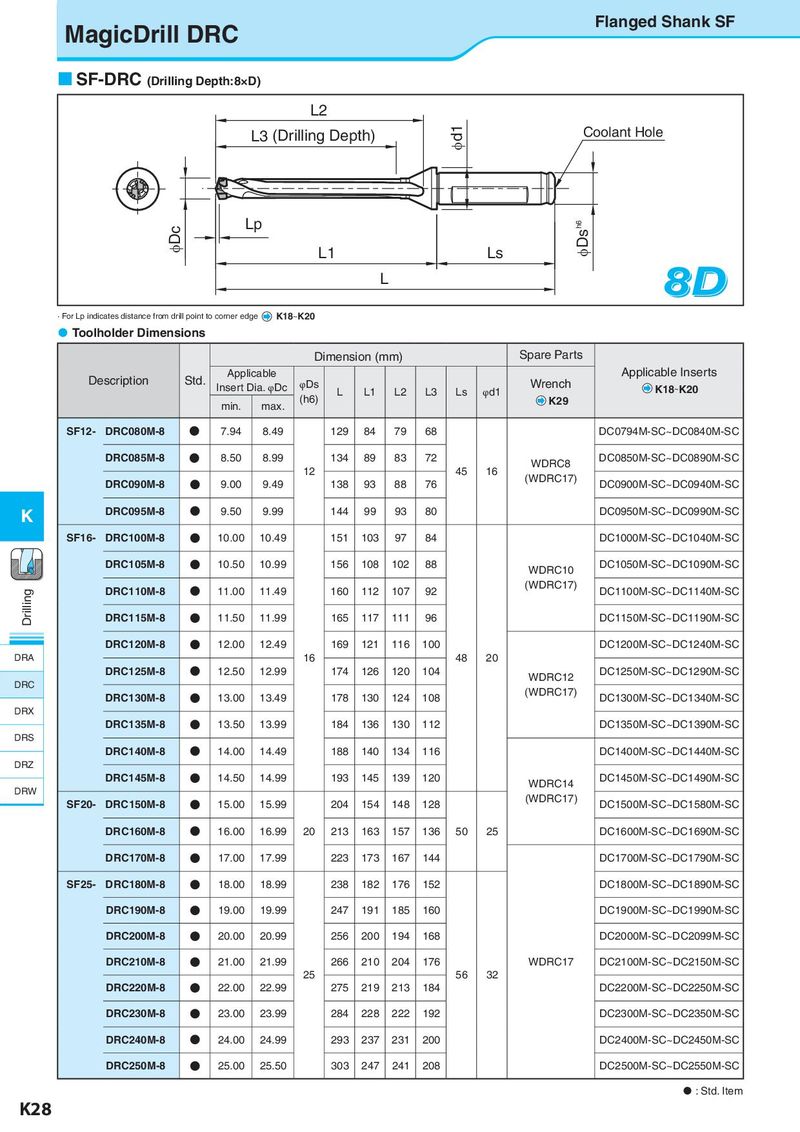

MagicDrill DRC Flanged Shank SF  SF-DRC (Drilling Depth:8×D) L2 L3 (Drilling Depth) φd1 Coolant Hole φDc Lp φDsh6 L1 Ls L 8D · For Lp indicates distance from drill point to corner edge K18~K20　  Toolholder Dimensions Dimension (mm) Spare Parts Description Std. Applicable Applicable Inserts Insert Dia. φDc φDs L L1 L2 L3 Ls φd1 Wrench K18~K20 min. max. (h6) K29 SF12- DRC080M-8 ● 7.94 8.49 129 84 79 68 DC0794M-SC~DC0840M-SC DRC085M-8 ● 8.50 8.99 134 89 83 72 WDRC8 DC0850M-SC~DC0890M-SC 12 45 16 (WDRC17) DRC090M-8 ● 9.00 9.49 138 93 88 76 DC0900M-SC~DC0940M-SC K DRC095M-8 ● 9.50 9.99 144 99 93 80 DC0950M-SC~DC0990M-SC SF16- DRC100M-8 ● 10.00 10.49 151 103 97 84 DC1000M-SC~DC1040M-SC DRC105M-8 ● 10.50 10.99 156 108 102 88 WDRC10 DC1050M-SC~DC1090M-SC Drilling DRC110M-8 ● 11.00 11.49 160 112 107 92 (WDRC17) DC1100M-SC~DC1140M-SC DRC115M-8 ● 11.50 11.99 165 117 111 96 DC1150M-SC~DC1190M-SC DRC120M-8 ● 12.00 12.49 169 121 116 100 DC1200M-SC~DC1240M-SC DRA 16 48 20 DRC125M-8 ● 12.50 12.99 174 126 120 104 WDRC12 DC1250M-SC~DC1290M-SC DRC (WDRC17) DRC130M-8 ● 13.00 13.49 178 130 124 108 DC1300M-SC~DC1340M-SC DRX DRC135M-8 ● 13.50 13.99 184 136 130 112 DC1350M-SC~DC1390M-SC DRS DRC140M-8 ● 14.00 14.49 188 140 134 116 DC1400M-SC~DC1440M-SC DRZ DRC145M-8 ● 14.50 14.99 193 145 139 120 WDRC14 DC1450M-SC~DC1490M-SC DRW (WDRC17) SF20- DRC150M-8 ● 15.00 15.99 204 154 148 128 DC1500M-SC~DC1580M-SC DRC160M-8 ● 16.00 16.99 20 213 163 157 136 50 25 DC1600M-SC~DC1690M-SC DRC170M-8 ● 17.00 17.99 223 173 167 144 DC1700M-SC~DC1790M-SC SF25- DRC180M-8 ● 18.00 18.99 238 182 176 152 DC1800M-SC~DC1890M-SC DRC190M-8 ● 19.00 19.99 247 191 185 160 DC1900M-SC~DC1990M-SC DRC200M-8 ● 20.00 20.99 256 200 194 168 DC2000M-SC~DC2099M-SC DRC210M-8 ● 21.00 21.99 266 210 204 176 WDRC17 DC2100M-SC~DC2150M-SC 25 56 32 DRC220M-8 ● 22.00 22.99 275 219 213 184 DC2200M-SC~DC2250M-SC DRC230M-8 ● 23.00 23.99 284 228 222 192 DC2300M-SC~DC2350M-SC DRC240M-8 ● 24.00 24.99 293 237 231 200 DC2400M-SC~DC2450M-SC DRC250M-8 ● 25.00 25.50 303 247 241 208 DC2500M-SC~DC2550M-SC  : Std. Item K28
