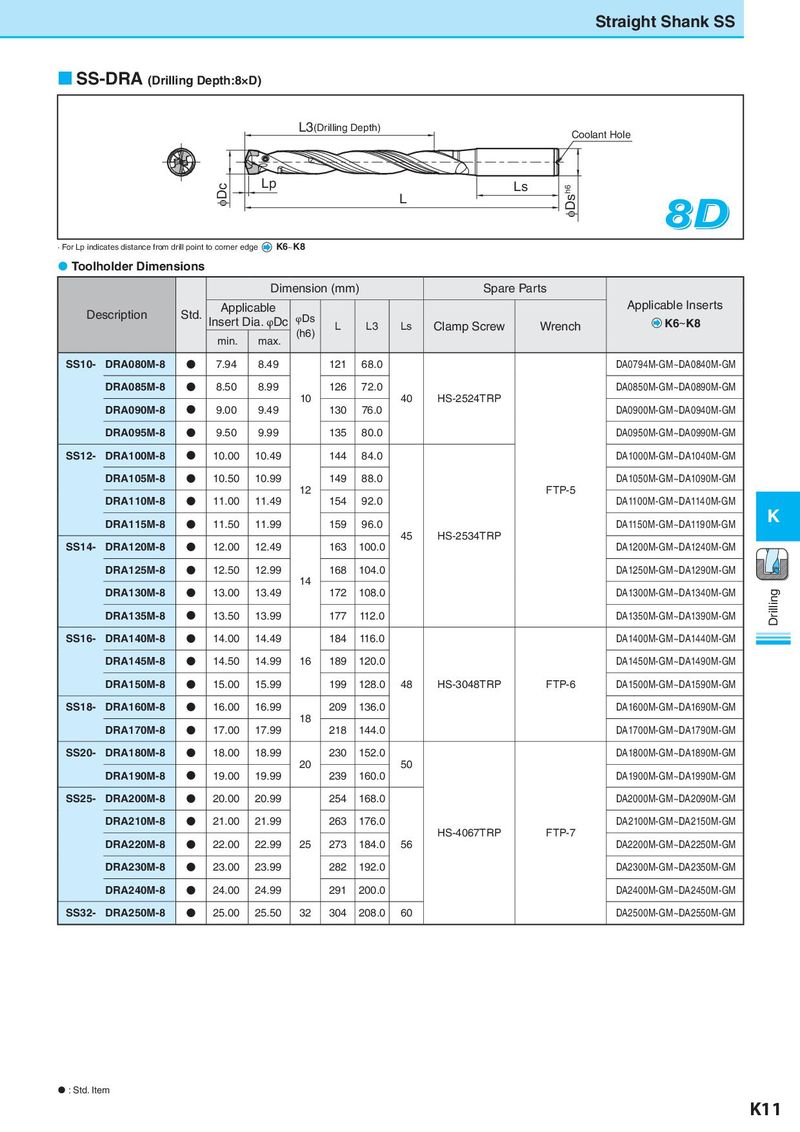

Straight Shank SS  SS-DRA (Drilling Depth:8×D) 8D L3(Drilling Depth) Coolant Hole φDc Lp Ls φDsh6 L 8D · For Lp indicates distance from drill point to corner edge K6~K8  Toolholder Dimensions Dimension (mm) Spare Parts Description Std. Applicable Applicable Inserts Insert Dia. φDc φDs L L3 Ls Clamp Screw Wrench K6~K8 min. max. (h6) SS10- DRA080M-8 N 7.94 8.49 121 68.0 DA0794M-GM~DA0840M-GM DRA085M-8 N 8.50 8.99 126 72.0 DA0850M-GM~DA0890M-GM 10 40 HS-2524TRP DRA090M-8 N 9.00 9.49 130 76.0 DA0900M-GM~DA0940M-GM DRA095M-8 N 9.50 9.99 135 80.0 DA0950M-GM~DA0990M-GM SS12- DRA100M-8 N 10.00 10.49 144 84.0 DA1000M-GM~DA1040M-GM DRA105M-8 N 10.50 10.99 149 88.0 DA1050M-GM~DA1090M-GM 12 FTP-5 DRA110M-8 N 11.00 11.49 154 92.0 DA1100M-GM~DA1140M-GM DRA115M-8 N 11.50 11.99 159 96.0 DA1150M-GM~DA1190M-GM K 45 HS-2534TRP SS14- DRA120M-8 N 12.00 12.49 163 100.0 DA1200M-GM~DA1240M-GM DRA125M-8 N 12.50 12.99 168 104.0 DA1250M-GM~DA1290M-GM 14 DRA130M-8 N 13.00 13.49 172 108.0 DA1300M-GM~DA1340M-GM Drilling DRA135M-8 N 13.50 13.99 177 112.0 DA1350M-GM~DA1390M-GM SS16- DRA140M-8 N 14.00 14.49 184 116.0 DA1400M-GM~DA1440M-GM DRA145M-8 N 14.50 14.99 16 189 120.0 DA1450M-GM~DA1490M-GM DRA150M-8 N 15.00 15.99 199 128.0 48 HS-3048TRP FTP-6 DA1500M-GM~DA1590M-GM SS18- DRA160M-8 N 16.00 16.99 209 136.0 DA1600M-GM~DA1690M-GM 18 DRA170M-8 N 17.00 17.99 218 144.0 DA1700M-GM~DA1790M-GM SS20- DRA180M-8 N 18.00 18.99 230 152.0 DA1800M-GM~DA1890M-GM 20 50 DRA190M-8 N 19.00 19.99 239 160.0 DA1900M-GM~DA1990M-GM SS25- DRA200M-8 N 20.00 20.99 254 168.0 DA2000M-GM~DA2090M-GM DRA210M-8 N 21.00 21.99 263 176.0 DA2100M-GM~DA2150M-GM HS-4067TRP FTP-7 DRA220M-8 N 22.00 22.99 25 273 184.0 56 DA2200M-GM~DA2250M-GM DRA230M-8 N 23.00 23.99 282 192.0 DA2300M-GM~DA2350M-GM DRA240M-8 N 24.00 24.99 291 200.0 DA2400M-GM~DA2450M-GM SS32- DRA250M-8 N 25.00 25.50 32 304 208.0 60 DA2500M-GM~DA2550M-GM  : Std. Item K11
