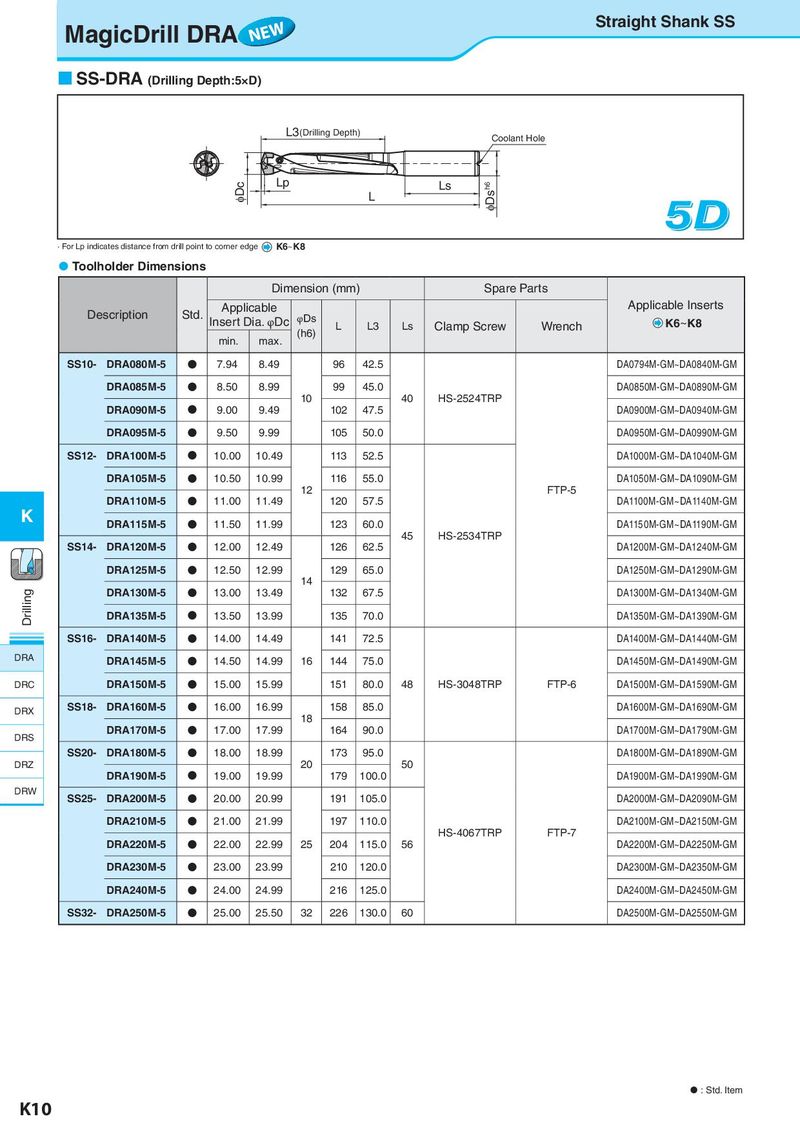

MagicDrill DRA NEW Straight Shank SS  SS-DRA (Drilling Depth:5×D) 5D L3(Drilling Depth) Coolant Hole φDc Lp Ls φDsh6 L 5D · For Lp indicates distance from drill point to corner edge K6~K8  Toolholder Dimensions Dimension (mm) Spare Parts Description Std. Applicable Applicable Inserts Insert Dia. φDc φDs L L3 Ls Clamp Screw Wrench K6~K8 min. max. (h6) SS10- DRA080M-5 N 7.94 8.49 96 42.5 DA0794M-GM~DA0840M-GM DRA085M-5 N 8.50 8.99 99 45.0 DA0850M-GM~DA0890M-GM 10 40 HS-2524TRP DRA090M-5 N 9.00 9.49 102 47.5 DA0900M-GM~DA0940M-GM DRA095M-5 N 9.50 9.99 105 50.0 DA0950M-GM~DA0990M-GM SS12- DRA100M-5 N 10.00 10.49 113 52.5 DA1000M-GM~DA1040M-GM DRA105M-5 N 10.50 10.99 116 55.0 DA1050M-GM~DA1090M-GM 12 FTP-5 DRA110M-5 N 11.00 11.49 120 57.5 DA1100M-GM~DA1140M-GM K DRA115M-5 N 11.50 11.99 123 60.0 DA1150M-GM~DA1190M-GM 45 HS-2534TRP SS14- DRA120M-5 N 12.00 12.49 126 62.5 DA1200M-GM~DA1240M-GM DRA125M-5 N 12.50 12.99 129 65.0 DA1250M-GM~DA1290M-GM 14 Drilling DRA130M-5 N 13.00 13.49 132 67.5 DA1300M-GM~DA1340M-GM DRA135M-5 N 13.50 13.99 135 70.0 DA1350M-GM~DA1390M-GM SS16- DRA140M-5 N 14.00 14.49 141 72.5 DA1400M-GM~DA1440M-GM DRA DRA145M-5 N 14.50 14.99 16 144 75.0 DA1450M-GM~DA1490M-GM DRC DRA150M-5 N 15.00 15.99 151 80.0 48 HS-3048TRP FTP-6 DA1500M-GM~DA1590M-GM DRX SS18- DRA160M-5 N 16.00 16.99 158 85.0 DA1600M-GM~DA1690M-GM 18 DRS DRA170M-5 N 17.00 17.99 164 90.0 DA1700M-GM~DA1790M-GM SS20- DRA180M-5 N 18.00 18.99 173 95.0 DA1800M-GM~DA1890M-GM DRZ 20 50 DRA190M-5 N 19.00 19.99 179 100.0 DA1900M-GM~DA1990M-GM DRW SS25- DRA200M-5 N 20.00 20.99 191 105.0 DA2000M-GM~DA2090M-GM DRA210M-5 N 21.00 21.99 197 110.0 DA2100M-GM~DA2150M-GM HS-4067TRP FTP-7 DRA220M-5 N 22.00 22.99 25 204 115.0 56 DA2200M-GM~DA2250M-GM DRA230M-5 N 23.00 23.99 210 120.0 DA2300M-GM~DA2350M-GM DRA240M-5 N 24.00 24.99 216 125.0 DA2400M-GM~DA2450M-GM SS32- DRA250M-5 N 25.00 25.50 32 226 130.0 60 DA2500M-GM~DA2550M-GM  : Std. Item K10
