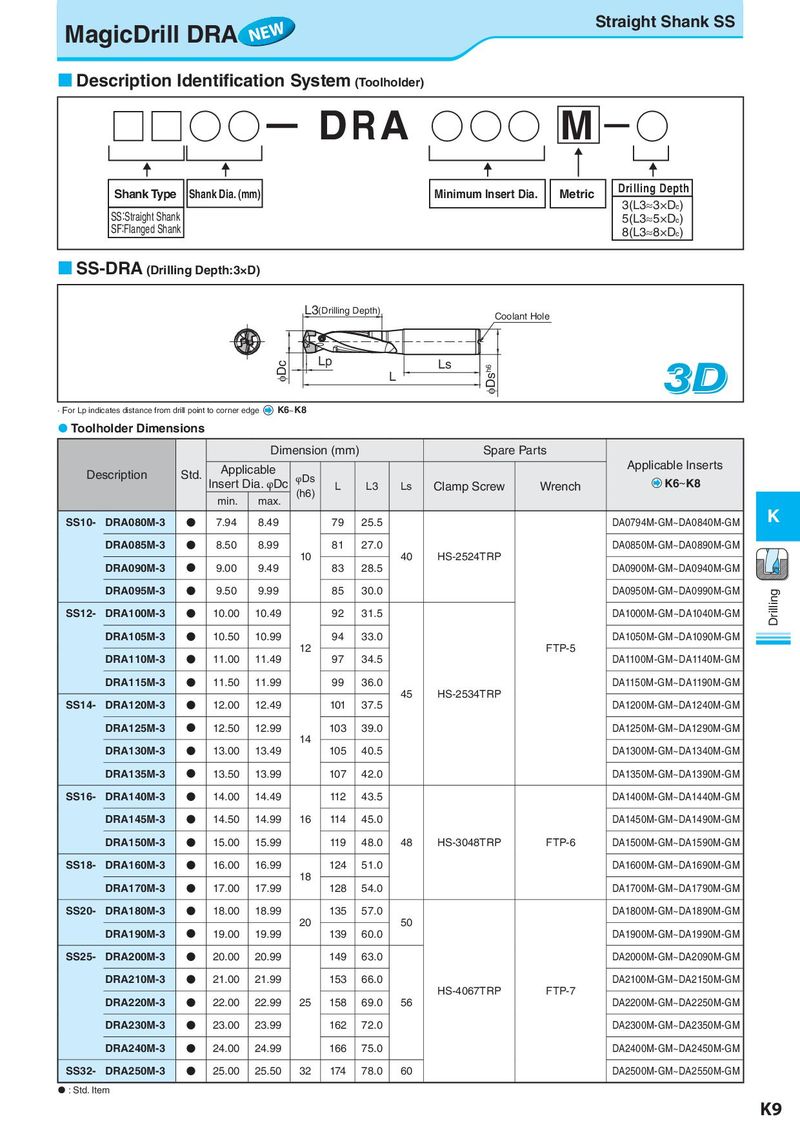

MagicDrill DRA NEW Straight Shank SS  Description Identification System (Toolholder) □□○○ー DRA ○○○ M −○ Shank Type Shank Dia. (mm) Minimum Insert Dia. Metric Drilling Depth 3(L3|3×Dc) SS：Straight Shank 5(L3|5×Dc) SF：Flanged Shank 8(L3|8×Dc)  SS-DRA (Drilling Depth:3×D) 3D L3(Drilling Depth) Coolant Hole φDc Lp Ls φDsh6 3D L · For Lp indicates distance from drill point to corner edge K6~K8  Toolholder Dimensions Dimension (mm) Spare Parts Description Std. Applicable Applicable Inserts Insert Dia. φDc φDs L L3 Ls Clamp Screw Wrench K6~K8 min. max. (h6) SS10- DRA080M-3 N 7.94 8.49 79 25.5 DA0794M-GM~DA0840M-GM K DRA085M-3 N 8.50 8.99 81 27.0 DA0850M-GM~DA0890M-GM 10 40 HS-2524TRP DRA090M-3 N 9.00 9.49 83 28.5 DA0900M-GM~DA0940M-GM DRA095M-3 N 9.50 9.99 85 30.0 DA0950M-GM~DA0990M-GM Drilling SS12- DRA100M-3 N 10.00 10.49 92 31.5 DA1000M-GM~DA1040M-GM DRA105M-3 N 10.50 10.99 94 33.0 DA1050M-GM~DA1090M-GM 12 FTP-5 DRA110M-3 N 11.00 11.49 97 34.5 DA1100M-GM~DA1140M-GM DRA115M-3 N 11.50 11.99 99 36.0 DA1150M-GM~DA1190M-GM 45 HS-2534TRP SS14- DRA120M-3 N 12.00 12.49 101 37.5 DA1200M-GM~DA1240M-GM DRA125M-3 N 12.50 12.99 103 39.0 DA1250M-GM~DA1290M-GM 14 DRA130M-3 N 13.00 13.49 105 40.5 DA1300M-GM~DA1340M-GM DRA135M-3 N 13.50 13.99 107 42.0 DA1350M-GM~DA1390M-GM SS16- DRA140M-3 N 14.00 14.49 112 43.5 DA1400M-GM~DA1440M-GM DRA145M-3 N 14.50 14.99 16 114 45.0 DA1450M-GM~DA1490M-GM DRA150M-3 N 15.00 15.99 119 48.0 48 HS-3048TRP FTP-6 DA1500M-GM~DA1590M-GM SS18- DRA160M-3 N 16.00 16.99 124 51.0 DA1600M-GM~DA1690M-GM 18 DRA170M-3 N 17.00 17.99 128 54.0 DA1700M-GM~DA1790M-GM SS20- DRA180M-3 N 18.00 18.99 135 57.0 DA1800M-GM~DA1890M-GM 20 50 DRA190M-3 N 19.00 19.99 139 60.0 DA1900M-GM~DA1990M-GM SS25- DRA200M-3 N 20.00 20.99 149 63.0 DA2000M-GM~DA2090M-GM DRA210M-3 N 21.00 21.99 153 66.0 DA2100M-GM~DA2150M-GM HS-4067TRP FTP-7 DRA220M-3 N 22.00 22.99 25 158 69.0 56 DA2200M-GM~DA2250M-GM DRA230M-3 N 23.00 23.99 162 72.0 DA2300M-GM~DA2350M-GM DRA240M-3 N 24.00 24.99 166 75.0 DA2400M-GM~DA2450M-GM SS32- DRA250M-3 N 25.00 25.50 32 174 78.0 60 DA2500M-GM~DA2550M-GM  : Std. Item K9
