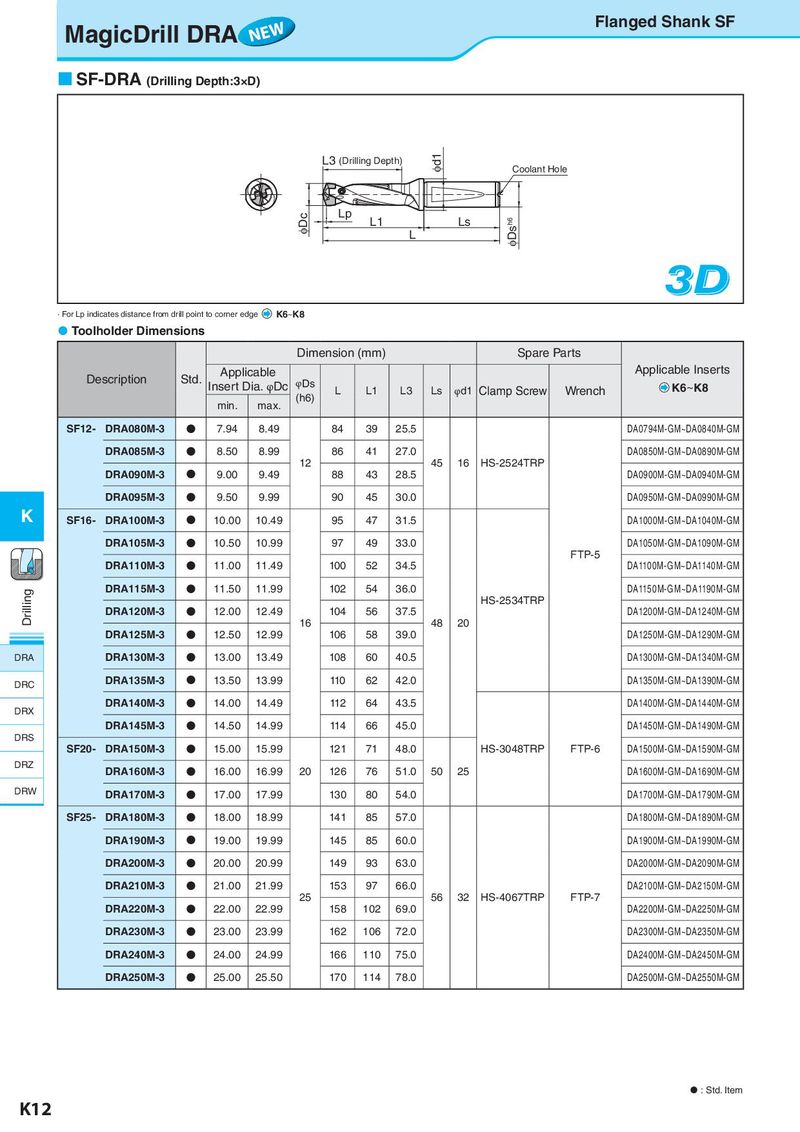

MagicDrill DRA NEW Flanged Shank SF  SF-DRA (Drilling Depth:3×D) 3D L3 (Drilling Depth) φd1 Coolant Hole φDc Lp L1 Ls φDsh6 L 3D · For Lp indicates distance from drill point to corner edge K6~K8  Toolholder Dimensions Dimension (mm) Spare Parts Description Std. Applicable Applicable Inserts Insert Dia. φDc φDs L L1 L3 Ls φd1 Clamp Screw Wrench K6~K8 min. max. (h6) SF12- DRA080M-3 N 7.94 8.49 84 39 25.5 DA0794M-GM~DA0840M-GM DRA085M-3 N 8.50 8.99 86 41 27.0 DA0850M-GM~DA0890M-GM 12 45 16 HS-2524TRP DRA090M-3 N 9.00 9.49 88 43 28.5 DA0900M-GM~DA0940M-GM DRA095M-3 N 9.50 9.99 90 45 30.0 DA0950M-GM~DA0990M-GM K SF16- DRA100M-3 N 10.00 10.49 95 47 31.5 DA1000M-GM~DA1040M-GM DRA105M-3 N 10.50 10.99 97 49 33.0 DA1050M-GM~DA1090M-GM FTP-5 DRA110M-3 N 11.00 11.49 100 52 34.5 DA1100M-GM~DA1140M-GM Drilling DRA115M-3 N 11.50 11.99 102 54 36.0 DA1150M-GM~DA1190M-GM HS-2534TRP DRA120M-3 N 12.00 12.49 104 56 37.5 DA1200M-GM~DA1240M-GM 16 48 20 DRA125M-3 N 12.50 12.99 106 58 39.0 DA1250M-GM~DA1290M-GM DRA DRA130M-3 N 13.00 13.49 108 60 40.5 DA1300M-GM~DA1340M-GM DRC DRA135M-3 N 13.50 13.99 110 62 42.0 DA1350M-GM~DA1390M-GM DRX DRA140M-3 N 14.00 14.49 112 64 43.5 DA1400M-GM~DA1440M-GM DRA145M-3 N 14.50 14.99 114 66 45.0 DA1450M-GM~DA1490M-GM DRS SF20- DRA150M-3 N 15.00 15.99 121 71 48.0 HS-3048TRP FTP-6 DA1500M-GM~DA1590M-GM DRZ DRA160M-3 N 16.00 16.99 20 126 76 51.0 50 25 DA1600M-GM~DA1690M-GM DRW DRA170M-3 N 17.00 17.99 130 80 54.0 DA1700M-GM~DA1790M-GM SF25- DRA180M-3 N 18.00 18.99 141 85 57.0 DA1800M-GM~DA1890M-GM DRA190M-3 N 19.00 19.99 145 85 60.0 DA1900M-GM~DA1990M-GM DRA200M-3 N 20.00 20.99 149 93 63.0 DA2000M-GM~DA2090M-GM DRA210M-3 N 21.00 21.99 153 97 66.0 DA2100M-GM~DA2150M-GM 25 56 32 HS-4067TRP FTP-7 DRA220M-3 N 22.00 22.99 158 102 69.0 DA2200M-GM~DA2250M-GM DRA230M-3 N 23.00 23.99 162 106 72.0 DA2300M-GM~DA2350M-GM DRA240M-3 N 24.00 24.99 166 110 75.0 DA2400M-GM~DA2450M-GM DRA250M-3 N 25.00 25.50 170 114 78.0 DA2500M-GM~DA2550M-GM  : Std. Item K12
