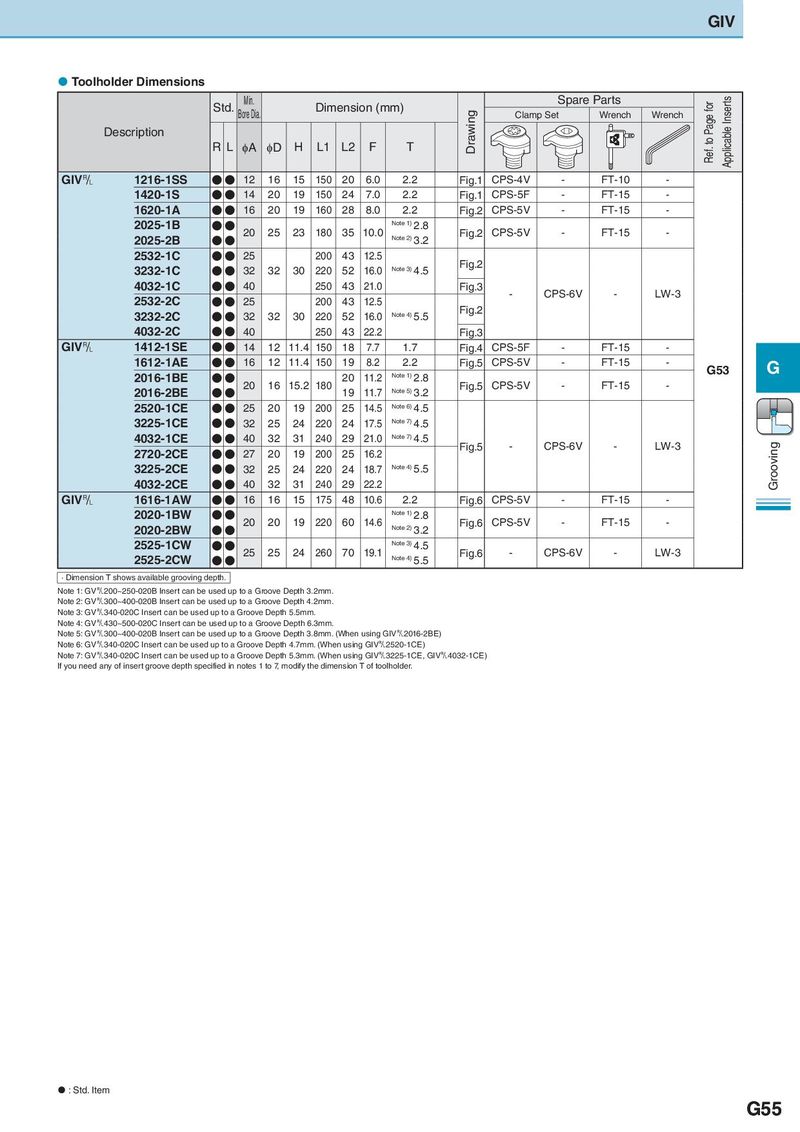

GIV  Toolholder Dimensions Std. Min. Dimension (mm) Spare Parts Ref. to Page for Applicable Inserts Bore Dia. Drawing Clamp Set Wrench Wrench Description RL φA φD H L1 L2 F T GIV& 1216-1SS ●● 12 16 15 150 20 6.0 2.2 Fig.1 CPS-4V - FT-10 - 1420-1S ●● 14 20 19 150 24 7.0 2.2 Fig.1 CPS-5F - FT-15 - 1620-1A ●● 16 20 19 160 28 8.0 2.2 Fig.2 CPS-5V - FT-15 - 2025-1B ●● 20 25 23 180 35 10.0 Note 1) 2.8 Fig.2 CPS-5V - FT-15 - 2025-2B ●● Note 2) 3.2 2532-1C ●● 25 200 43 12.5 Fig.2 3232-1C ●● 32 32 30 220 52 16.0 Note 3) 4.5 4032-1C ●● 40 250 43 21.0 Fig.3 - CPS-6V - LW-3 2532-2C ●● 25 200 43 12.5 Fig.2 3232-2C ●● 32 32 30 220 52 16.0 Note 4) 5.5 4032-2C ●● 40 250 43 22.2 Fig.3 GIV& 1412-1SE ●● 14 12 11.4 150 18 7.7 1.7 Fig.4 CPS-5F - FT-15 - 1612-1AE ●● 16 12 11.4 150 19 8.2 2.2 Fig.5 CPS-5V - FT-15 - G53 G 2016-1BE ●● 20 16 15.2 180 20 11.2 Note 1) 2.8 Fig.5 CPS-5V - FT-15 - 2016-2BE ●● 19 11.7 Note 5) 3.2 2520-1CE ●● 25 20 19 200 25 14.5 Note 6) 4.5 3225-1CE ●● 32 25 24 220 24 17.5 Note 7) 4.5 4032-1CE ●● 40 32 31 240 29 21.0 Note 7) 4.5 Fig.5 - CPS-6V - LW-3 Grooving 2720-2CE ●● 27 20 19 200 25 16.2 3225-2CE ●● 32 25 24 220 24 18.7 Note 4) 5.5 4032-2CE ●● 40 32 31 240 29 22.2 GIV& 1616-1AW ●● 16 16 15 175 48 10.6 2.2 Fig.6 CPS-5V - FT-15 - 2020-1BW ●● 20 20 19 220 60 14.6 Note 1) 2.8 Fig.6 CPS-5V - FT-15 - 2020-2BW ●● Note 2) 3.2 2525-1CW ●● 25 25 24 260 70 19.1 Note 3) 4.5 Fig.6 - CPS-6V - LW-3 2525-2CW ●● Note 4) 5.5 · Dimension T shows available grooving depth. Note 1: GV&200~250-020B Insert can be used up to a Groove Depth 3.2mm. Note 2: GV&300~400-020B Insert can be used up to a Groove Depth 4.2mm. Note 3: GV&340-020C Insert can be used up to a Groove Depth 5.5mm. Note 4: GV&430~500-020C Insert can be used up to a Groove Depth 6.3mm. Note 5: GV&300~400-020B Insert can be used up to a Groove Depth 3.8mm. (When using GIV&2016-2BE) Note 6: GV&340-020C Insert can be used up to a Groove Depth 4.7mm. (When using GIV&2520-1CE) Note 7: GV&340-020C Insert can be used up to a Groove Depth 5.3mm. (When using GIV&3225-1CE, GIV&4032-1CE) If you need any of insert groove depth specified in notes 1 to 7, modify the dimension T of toolholder.  : Std. Item G55
