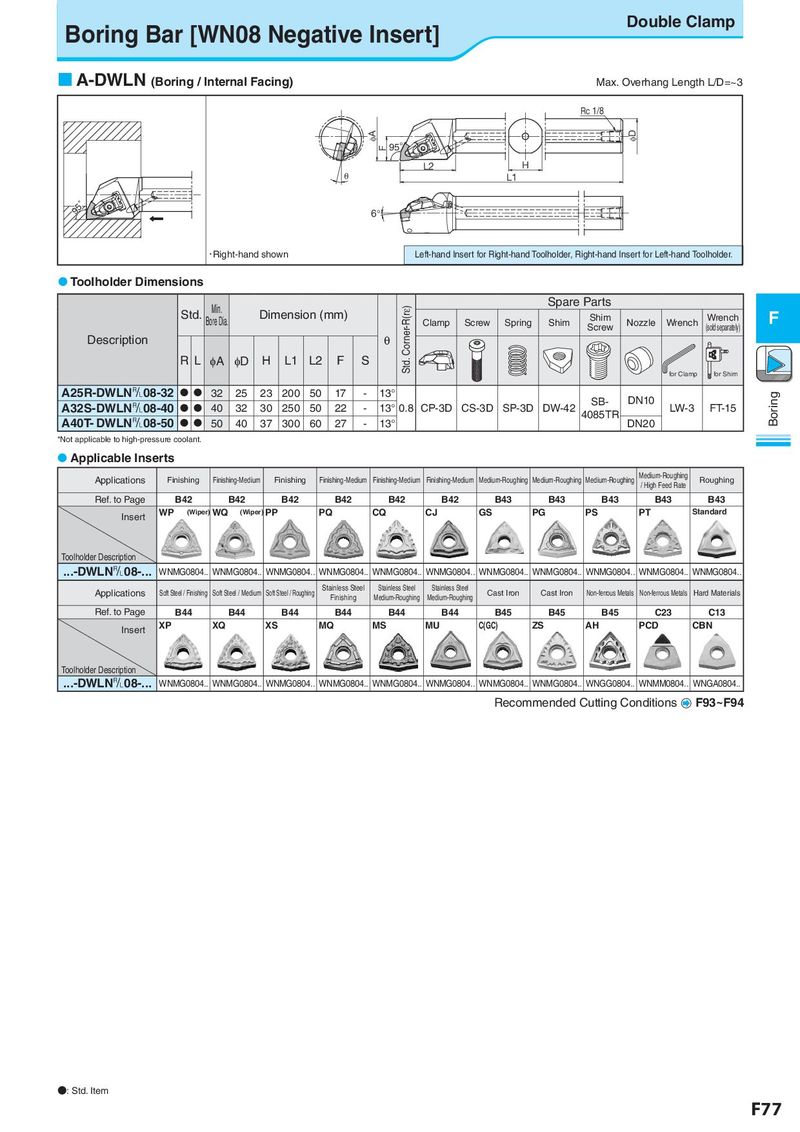

Boring Bar [WN08 Negative Insert] DouLbelveeCr lLaomcpk  A-DWLN (Boring / Internal Facing) Max. Overhang Length L/D=~3 Rc 1/8 φA φD F 95° L2 H θ L1 95ﾟ 6° • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Min. Std. Corner-R(rε) Spare Parts Std. Bore Dia. Dimension (mm) Clamp Screw Spring Shim Shim Nozzle Wrench Wrench F Screw (sold separately) Description θ RL φA φD H L1 L2 F S for Clamp for Shim A25R-DWLN&08-32   32 25 23 200 50 17 - 13° SB- DN10 Boring A32S- DWLN&08-40   40 32 30 250 50 22 - 13° 0.8 CP-3D CS-3D SP-3D DW-42 4085TR LW-3 FT-15 A40T- DWLN&08-50   50 40 37 300 60 27 - 13° DN20 *Not applicable to high-pressure coolant.  Applicable Inserts Applications Finishing Finishing-Medium Finishing Finishing-Medium Finishing-Medium Finishing-Medium Medium-Roughing Medium-Roughing Medium-Roughing Medium-Roughing Roughing / High Feed Rate Ref. to Page B42 B42 B42 B42 B42 B42 B43 B43 B43 B43 B43 Insert WP (Wiper) WQ (Wiper) PP PQ CQ CJ GS PG PS PT Standard Toolholder Description ...-DWLN&08-... WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. Applications Soft Steel / Finishing Soft Steel / Medium Soft Steel / Roughing Stainless Steel Stainless Steel Stainless Steel Cast Iron Cast Iron Non-ferrous Metals Non-ferrous Metals Hard Materials Finishing Medium-Roughing Medium-Roughing Ref. to Page B44 B44 B44 B44 B44 B44 B45 B45 B45 C23 C13 Insert XP XQ XS MQ MS MU C(GC) ZS AH PCD CBN Toolholder Description ...-DWLN&08-... WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNGG0804.. WNMM0804.. WNGA0804..  Recommended Cutting Conditions F93~F94 ●: Std. Item F77
