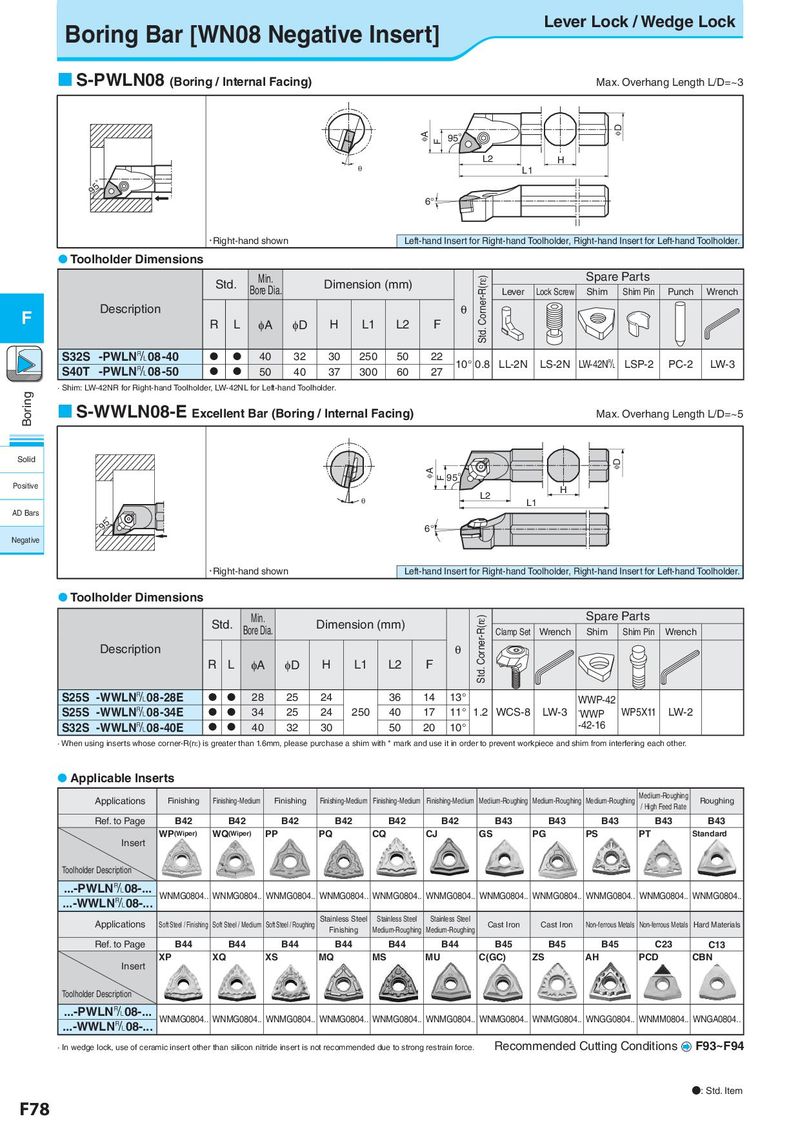

Boring Bar [WN08 Negative Insert] Lever Lock / Wedge Lock  S-PWLN08 (Boring / Internal Facing) Max. Overhang Length L/D=~3 φA 95° φD F L2 H θ L1 95ﾟ 6° • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Std. Min. Dimension (mm) Std. Corner-R(rε) Spare Parts Bore Dia. Lever Lock Screw Shim Shim Pin Punch Wrench F Description θ R L φA φD H L1 L2 F S32S -PWLN&08 -40   40 32 30 250 50 22 10° 0.8 LL-2N LS-2N LW-42N& LSP-2 PC-2 LW-3 S40T -PWLN&08 -50   50 40 37 300 60 27 Boring · Shim: LW-42NR for Right-hand Toolholder, LW-42NL for Left-hand Toolholder.  S-WWLN08-E Excellent Bar (Boring / Internal Facing) Max. Overhang Length L/D=~5 Solid φD φA F 95° Positive H θ L2 L1 AD Bars 95ﾟ 6° Negative • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Std. Min. Dimension (mm) Std. Corner-R(rε) Spare Parts Bore Dia. Clamp Set Wrench Shim Shim Pin Wrench Description θ R L φA φD H L1 L2 F S25S -WWLN&08 -28E   28 25 24 36 14 13° WWP-42 S25S -WWLN&08 -34E   34 25 24 250 40 17 11° 1.2 WCS-8 LW-3 *WWP WP5X11 LW-2 S32S -WWLN&08 -40E   40 32 30 50 20 10° -42-16 · When using inserts whose corner-R(rε) is greater than 1.6mm, please purchase a shim with * mark and use it in order to prevent workpiece and shim from interfering each other.  Applicable Inserts Applications Finishing Finishing-Medium Finishing Finishing-Medium Finishing-Medium Finishing-Medium Medium-Roughing Medium-Roughing Medium-Roughing Medium-Roughing Roughing / High Feed Rate Ref. to Page B42 B42 B42 B42 B42 B42 B43 B43 B43 B43 B43 WP(Wiper) WQ(Wiper) PP PQ CQ CJ GS PG PS PT Standard Insert Toolholder Description ...-PWLN&08-... WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. ...-WWLN&08-... Applications Soft Steel / Finishing Soft Steel / Medium Soft Steel / Roughing Stainless Steel Stainless Steel Stainless Steel Cast Iron Cast Iron Non-ferrous Metals Non-ferrous Metals Hard Materials Finishing Medium-Roughing Medium-Roughing Ref. to Page B44 B44 B44 B44 B44 B44 B45 B45 B45 C23 C13 XP XQ XS MQ MS MU C(GC) ZS AH PCD CBN Insert Toolholder Description ...-PWLN&08-... WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNMG0804.. WNGG0804.. WNMM0804.. WNGA0804.. ...-WWLN&08-... · In wedge lock, use of ceramic insert other than silicon nitride insert is not recommended due to strong restrain force. Recommended Cutting Conditions F93~F94 ●: Std. Item F78
