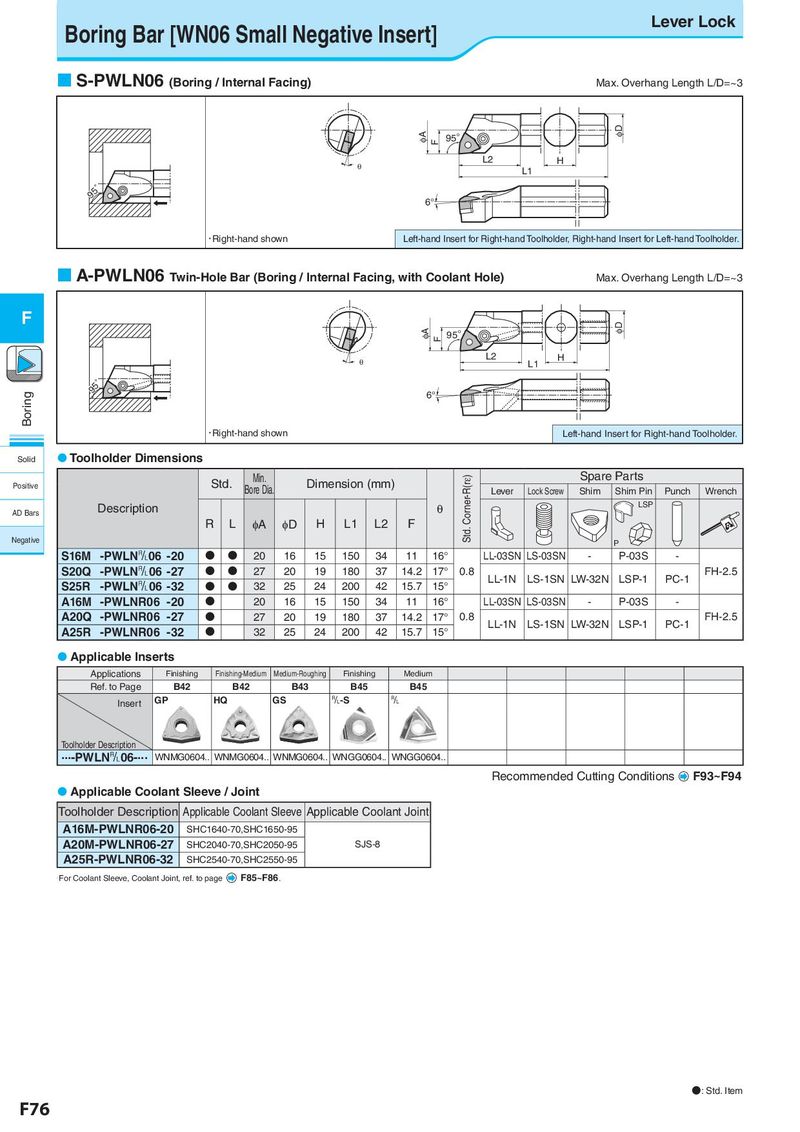

Boring Bar [WN06 Small Negative Insert] Lever Lock  S-PWLN06 (Boring / Internal Facing) Max. Overhang Length L/D=~3 φA 95° φD F θ L2 H L1 95ﾟ 6° • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  A-PWLN06 Twin-Hole Bar (Boring / Internal Facing, with Coolant Hole) Max. Overhang Length L/D=~3 F φD φA F 95° θ L2 L1 H Boring 95ﾟ 6° • Right-hand shown Left-hand Insert for Right-hand Toolholder. Solid  Toolholder Dimensions Std. Min. Dimension (mm) Std. Corner-R(rε) Spare Parts Positive Bore Dia. Lever Lock Screw Shim Shim Pin Punch Wrench Description θ LSP AD Bars R L φA φD H L1 L2 F Negative P S16M -PWLN&06 -20   20 16 15 150 34 11 16° LL-03SN LS-03SN - P-03S - S20Q -PWLN&06 -27   27 20 19 180 37 14.2 17° 0.8 LL-1N LS-1SN LW-32N LSP-1 PC-1 FH-2.5 S25R -PWLN&06 -32   32 25 24 200 42 15.7 15° A16M -PWLNR06 -20  20 16 15 150 34 11 16° LL-03SN LS-03SN - P-03S - A20Q -PWLNR06 -27  27 20 19 180 37 14.2 17° 0.8 LL-1N LS-1SN LW-32N LSP-1 PC-1 FH-2.5 A25R -PWLNR06 -32  32 25 24 200 42 15.7 15°  Applicable Inserts Applications Finishing Finishing-Medium Medium-Roughing Finishing Medium Ref. to Page B42 B42 B43 B45 B45 Insert GP HQ GS &-S & Toolholder Description ...-PWLN&06-... WNMG0604.. WNMG0604.. WNMG0604.. WNGG0604.. WNGG0604.. Recommended Cutting Conditions F93~F94  Applicable Coolant Sleeve / Joint Toolholder Description Applicable Coolant Sleeve Applicable Coolant Joint A16M-PWLNR06-20 SHC1640-70,SHC1650-95 A20M-PWLNR06-27 SHC2040-70,SHC2050-95 SJS-8 A25R-PWLNR06-32 SHC2540-70,SHC2550-95 · For Coolant Sleeve, Coolant Joint, ref. to page F85~F86. ●: Std. Item F76
