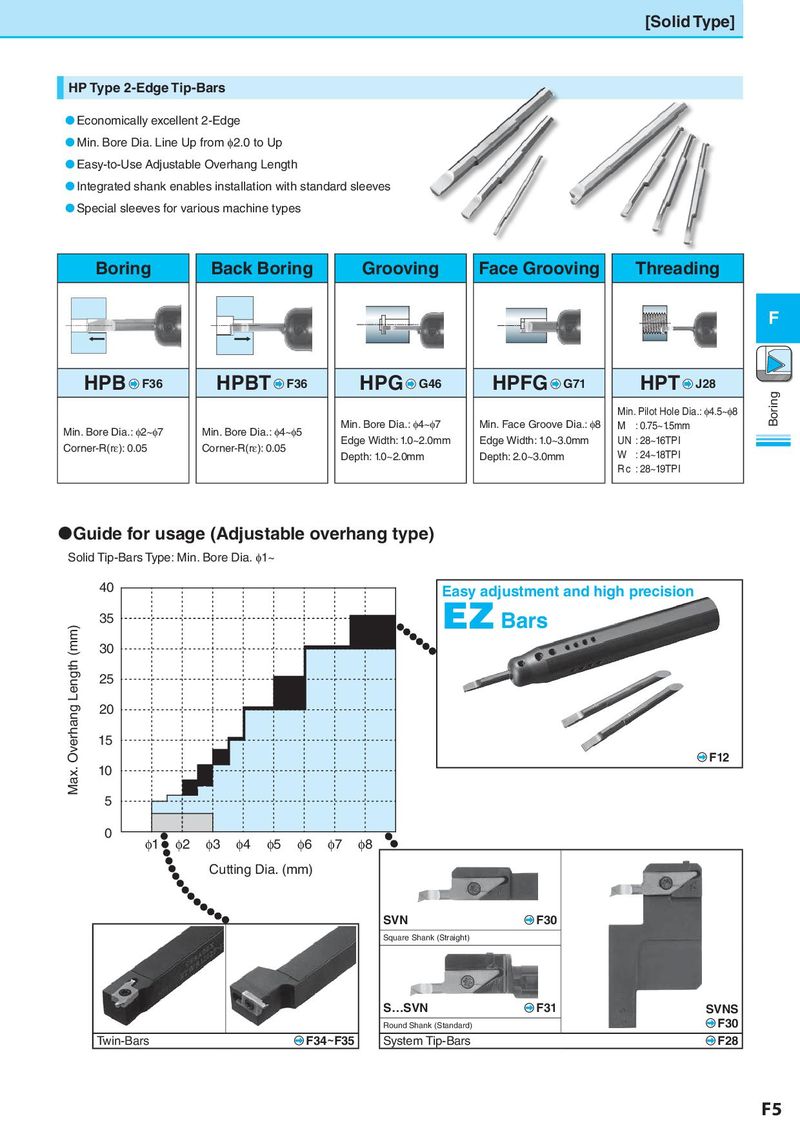

[Solid Type] HP Type 2-Edge Tip-Bars Economically excellent 2-Edge Min. Bore Dia. Line Up from φ2.0 to Up Easy-to-Use Adjustable Overhang Length Integrated shank enables installation with standard sleeves Special sleeves for various machine types Boring Back Boring Grooving Face Grooving Threading F HPB F36 HPBT F36 HPG G46 HPFG G71 HPT J28 Min. Pilot Hole Dia.: φ4.5~φ8 Boring Min. Bore Dia.: φ2~φ7 Min. Bore Dia.: φ4~φ5 Min. Bore Dia.: φ4~φ7 Min. Face Groove Dia.: φ8 M : 0.75~1.5mm Corner-R(rε): 0.05 Corner-R(rε): 0.05 Edge Width: 1.0~2.0mm Edge Width: 1.0~3.0mm UN : 28~16TPI Depth: 1.0~2.0mm Depth: 2.0~3.0mm W : 24~18TPI R c : 28~19TPI Guide for usage (Adjustable overhang type) Solid Tip-Bars Type: Min. Bore Dia. φ1~ 40 Easy adjustment and high precision Max. Overhang Length (mm) 35 EZ Bars 30 25 20 15 F12 10 5 0 φ1 φ2 φ3 φ4 φ5 φ6 φ7 φ8 Cutting Dia. (mm) SVN F30 Square Shank (Straight) S…SVN F31 SVNS Round Shank (Standard)  F30 Twin-Bars F34~F35 System Tip-Bars F28 F5
