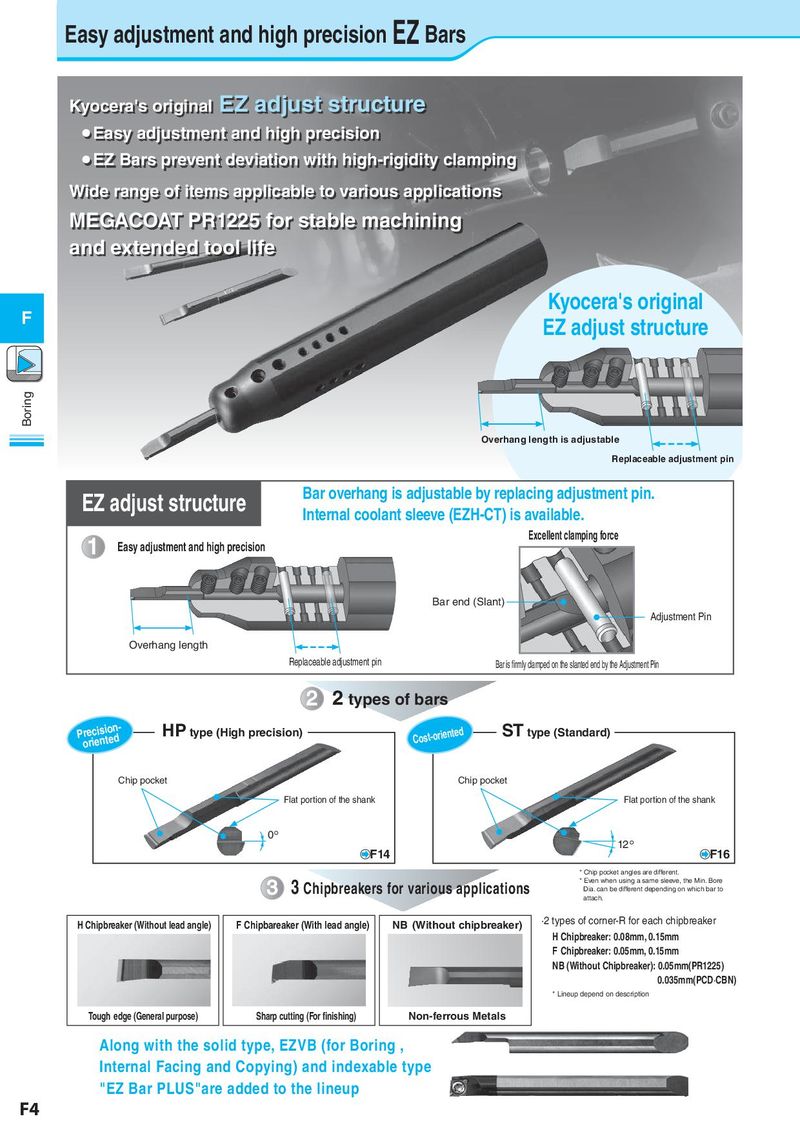

Easy adjustment and high precision EZ Bars Kyocera's original EZ adjust structure  Easy adjustment and high precision  EZ Bars prevent deviation with high-rigidity clamping Wide range of items applicable to various applications MEGACOAT PR1225 for stable machining and extended tool life F Kyocera's original EZ adjust structure Boring Overhang length is adjustable Replaceable adjustment pin EZ adjust structure Bar overhang is adjustable by replacing adjustment pin. Internal coolant sleeve (EZH-CT) is available. 1 Easy adjustment and high precision Excellent clamping force Bar end (Slant) Adjustment Pin Overhang length Replaceable adjustment pin Bar is firmly clamped on the slanted end by the Adjustment Pin 2 2 types of bars Porercieisnitoend- HP type (High precision) Cost-oriented ST type (Standard) Chip pocket Chip pocket Flat portion of the shank Flat portion of the shank 0° 12° F14 F16 * Chip pocket angles are different. 3 3 Chipbreakers for various applications * Even when using a same sleeve, the Min. Bore Dia. can be different depending on which bar to attach. H Chipbreaker (Without lead angle) F Chipbareaker (With lead angle) NB (Without chipbreaker) ·2 types of corner-R for each chipbreaker H Chipbreaker: 0.08mm, 0.15mm F Chipbreaker: 0.05mm, 0.15mm NB (Without Chipbreaker): 0.05mm(PR1225) 0.035mm(PCD·CBN) * Lineup depend on description Tough edge (General purpose) Sharp cutting (For finishing) Non-ferrous Metals Along with the solid type, EZVB (for Boring , Internal Facing and Copying) and indexable type "EZ Bar PLUS"are added to the lineup F4
