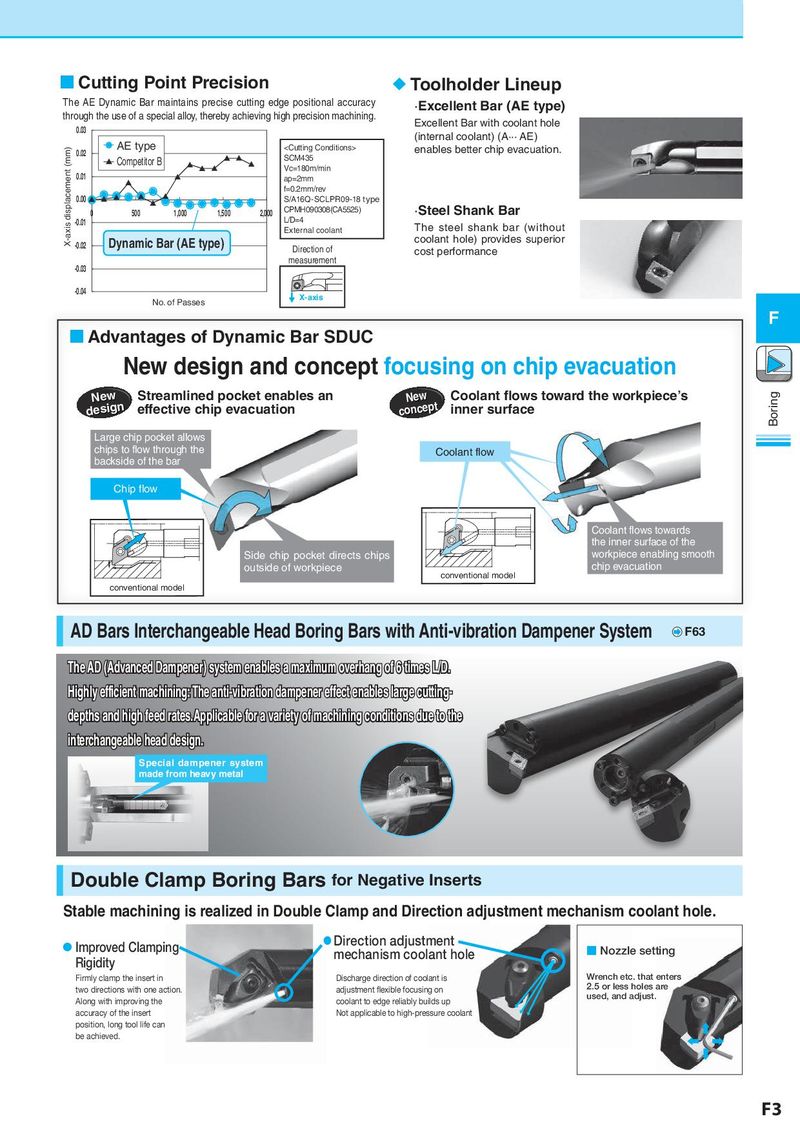

 Cutting Point Precision ︎ Toolholder Lineup The AE Dynamic Bar maintains precise cutting edge positional accuracy ·Excellent Bar (AE type) through the use of a special alloy, thereby achieving high precision machining. Excellent Bar with coolant hole 0.03 (internal coolant) (A··· AE) X-axis displacement (mm) 0.02 AE type enables better chip evacuation. Competitor B SCM435 Vc=180m/min 0.01 ap=2mm f=0.2mm/rev 0.00 S/A16Q-SCLPR09-18 type 0 500 1,000 1,500 2,000 CPMH090308(CA5525) ·Steel Shank Bar -0.01 L/D=4 The steel shank bar (without External coolant -0.02 Dynamic Bar (AE type) coolant hole) provides superior Direction of cost performance measurement -0.03 -0.04 X-axis No. of Passes F  Advantages of Dynamic Bar SDUC New design and concept focusing on chip evacuation New Streamlined pocket enables an New Coolant flows toward the workpiece’s Boring design concept effective chip evacuation inner surface Large chip pocket allows chips to flow through the Coolant flow backside of the bar Chip flow Coolant flows towards the inner surface of the Side chip pocket directs chips workpiece enabling smooth outside of workpiece chip evacuation conventional model conventional model AD Bars Interchangeable Head Boring Bars with Anti-vibration Dampener System F63 The AD (Advanced Dampener) system enables a maximum overhang of 6 times L/D. Highly efficient machining: The anti-vibration dampener effect enables large cutting- depths and high feed rates.Applicable for a variety of machining conditions due to the interchangeable head design. Special dampener system made from heavy metal Double Clamp Boring Bars for Negative Inserts Stable machining is realized in Double Clamp and Direction adjustment mechanism coolant hole. ● Improved Clamping ● Direction adjustment ■ Nozzle setting Rigidity mechanism coolant hole Firmly clamp the insert in Discharge direction of coolant is Wrench etc. that enters two directions with one action. adjustment exible focusing on 2.5 or less holes are Along with improving the coolant to edge reliably builds up used, and adjust. accuracy of the insert Not applicable to high-pressure coolant position, long tool life can be achieved. F3
