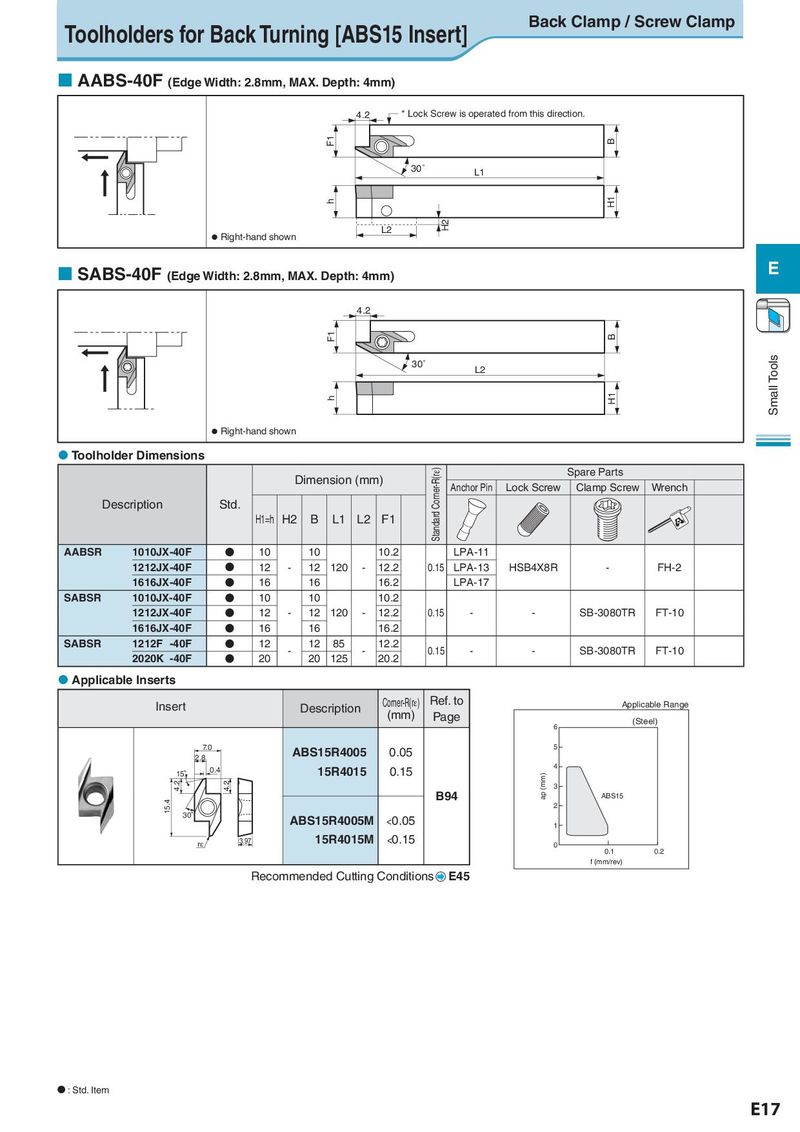

Toolholders for Back Turning [ABS15 Insert] Back Clamp / Screw Clamp ¢ AABS-40F (Edge Width: 2.8mm, MAX. Depth: 4mm) 4.2 * Lock Screw is operated from this direction. F1 B 30˚ L1 h H1 L2 H2 l Right-hand shown ¢ SABS-40F (Edge Width: 2.8mm, MAX. Depth: 4mm) E 4.2 F1 B 30˚ L2 Tools h H1 Small l Right-hand shown l Toolholder Dimensions Dimension (mm) Standard Corner-R(rε) Spare Parts Anchor Pin Lock Screw Clamp Screw Wrench Description Std. H1=h H2 B L1 L2 F1 AABSR 1010JX-40F N 10 10 10.2 LPA-11 1212JX-40F N 12 - 12 120 - 12.2 0.15 LPA-13 HSB4X8R - FH-2 1616JX-40F N 16 16 16.2 LPA-17 SABSR 1010JX-40F N 10 10 10.2 1212JX-40F N 12 - 12 120 - 12.2 0.15 - - SB-3080TR FT-10 1616JX-40F N 16 16 16.2 SABSR 1212F -40F N 12 12 85 12.2 0.15 - - SB-3080TR ˚ - - FT-10 2020K -40F N 20 20 125 20.2 l Applicable Inserts Insert Description Corner-R(rε) Ref. to Applicable Range (mm) Page (Steel) 6 7.0 ABS15R4005 0.05 5 2.8 0.4 15R4015 0.15 4 15° ap (mm) 4.2 4.2 3 15.4 B94 ABS15 2 30° ABS15R4005M <0.05 1 rH 3.97 15R4015M <0.15 0 0.1 0.2 f (mm/rev) Recommended Cutting Conditions E45 N : Std. Item E17
