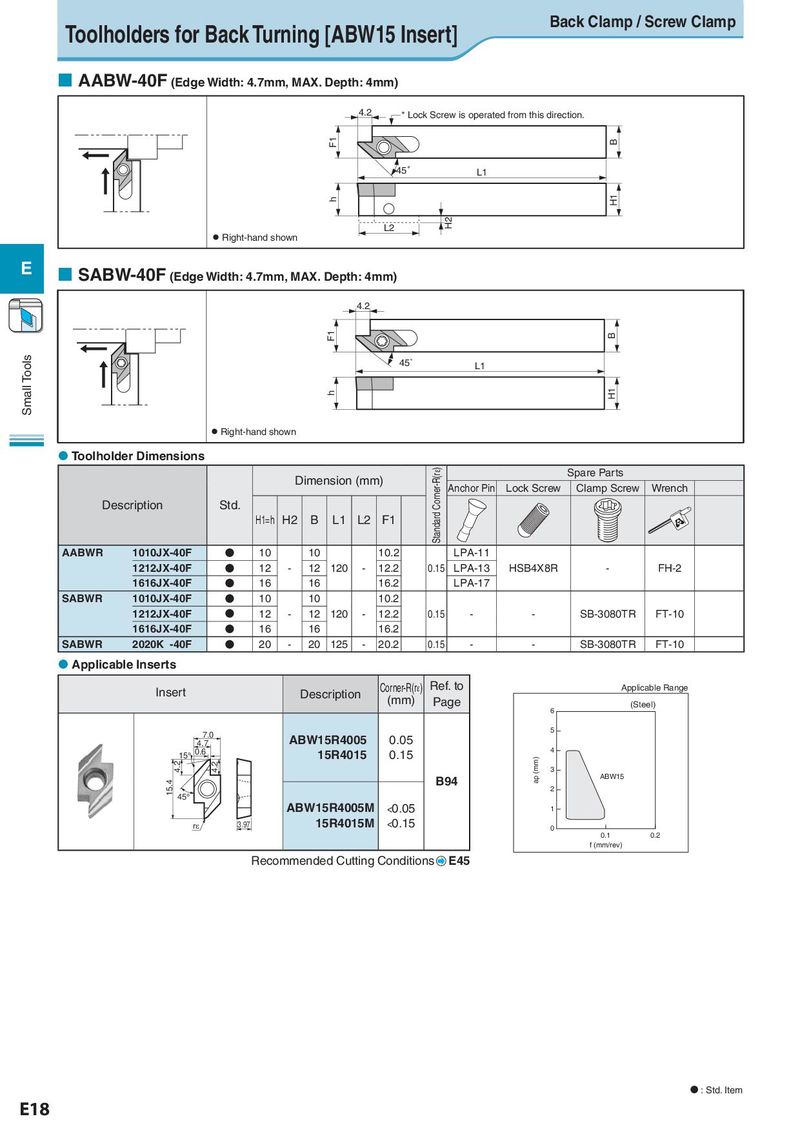

Toolholders for Back Turning [ABW15 Insert] Back Clamp / Screw Clamp ¢ AABW-40F (Edge Width: 4.7mm, MAX. Depth: 4mm) 4.2 * Lock Screw is operated from this direction. F1 B 45゜ L1 h H1 L2 H2 l Right-hand shown E ¢ SABW-40F (Edge Width: 4.7mm, MAX. Depth: 4mm) 4.2 F1 B Tools 45˚ L1 Small h H1 l Right-hand shown l Toolholder Dimensions Dimension (mm) Standard Corner-R(rε) Spare Parts Anchor Pin Lock Screw Clamp Screw Wrench Description Std. H1=h H2 B L1 L2 F1 AABWR 1010JX-40F N 10 10 10.2 LPA-11 1212JX-40F N 12 - 12 120 - 12.2 0.15 LPA-13 HSB4X8R - FH-2 1616JX-40F N 16 16 16.2 LPA-17 SABWR 1010JX-40F N 10 10 10.2 1212JX-40F N 12 - 12 120 - 12.2 0.15 - - SB-3080TR FT-10 1616JX-40F N 16 16 16.2 SABWR 2020K -40F N 20 - 20 125 - 20.2 0.15 - - SB-3080TR FT-10 l Applicable Inserts Insert Description Corner-R(rε) Ref. to Applicable Range (mm) Page (Steel) 6 7.0 5 4.7 ABW15R4005 0.05 15° 0.6 15R4015 0.15 4 4.2 4.2 (mm) 3 15.4 B94 ap ABW15 2 45° ABW15R4005M <0.05 1 rε 3.97 15R4015M <0.15 0 0.1 0.2 f (mm/rev) Recommended Cutting Conditions E45 N : Std. Item E18
