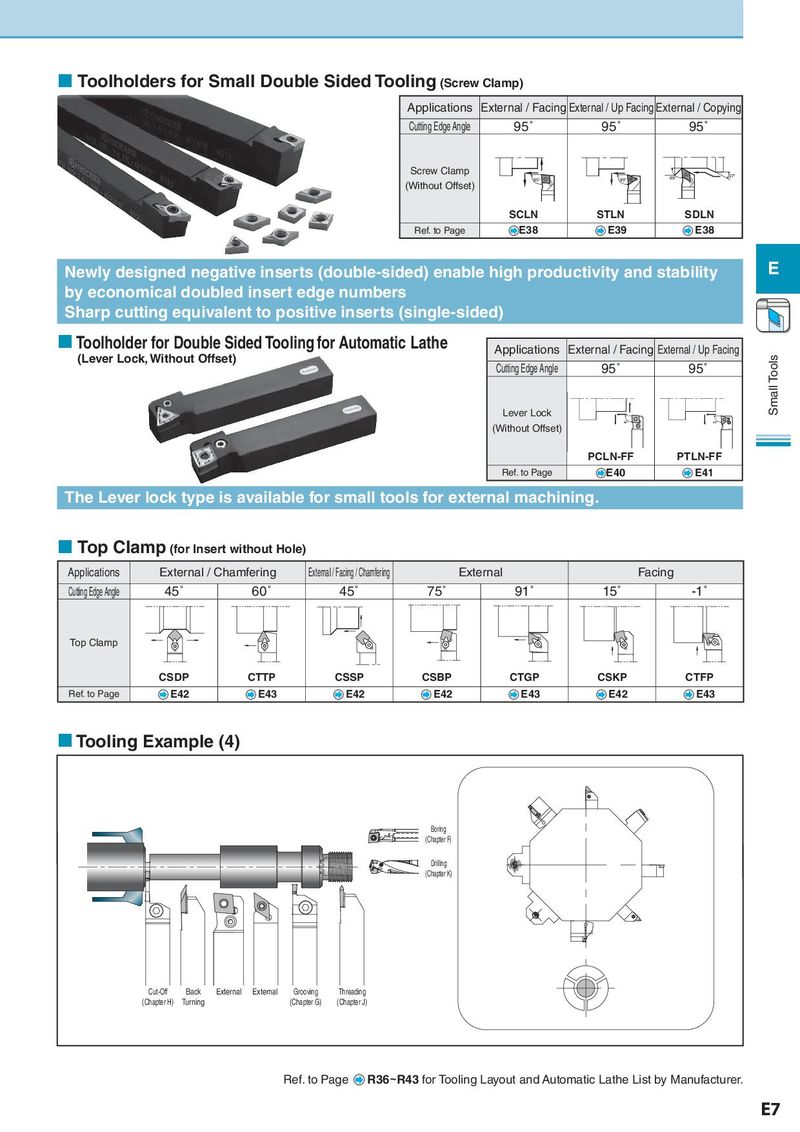

¢ Toolholders for Small Double Sided Tooling (Screw Clamp) Applications External / Facing External / Up Facing External / Copying Cutting Edge Angle 95˚ 95˚ 95˚ Screw Clamp 27° 95° 95° 95° (Without Offset) SCLN STLN SDLN Ref. to Page E38 E39 E38 Newly designed negative inserts (double-sided) enable high productivity and stability E by economical doubled insert edge numbers Sharp cutting equivalent to positive inserts (single-sided) ¢ Toolholder for Double Sided Tooling for Automatic Lathe Applications External / Facing External / Up Facing (Lever Lock, Without Offset) Cutting Edge Angle 95˚ 95˚ PCLNR1620JX-12FF Tools PTLNR1620JX-16FF 5° SSF1mall F1 B Lever Lock S 95° 95° 95° L2 95° L2 (Without Offset) L1 H1 PCLN-FF PTLN-FF Ref. to Page E40 E41 The Lever lock type is available for small tools for external machining. ¢ Top Clamp (for Insert without Hole) Applications External / Chamfering External / Facing / Chamfering External Facing Cutting Edge Angle 45˚ 60˚ 45˚ 75˚ 91˚ 15˚ -1˚ Top Clamp CSDP CTTP CSSP CSBP CTGP CSKP CTFP Ref. to Page E42 E43 E42 E42 E43 E42 E43 ¢ Tooling Example (4) Boring (Chapter F) Drilling (Chapter K) Cut-Off Back External External Grooving Threading (Chapter H) Turning (Chapter G) (Chapter J) Ref. to Page R36~R43 for Tooling Layout and Automatic Lathe List by Manufacturer. E7
