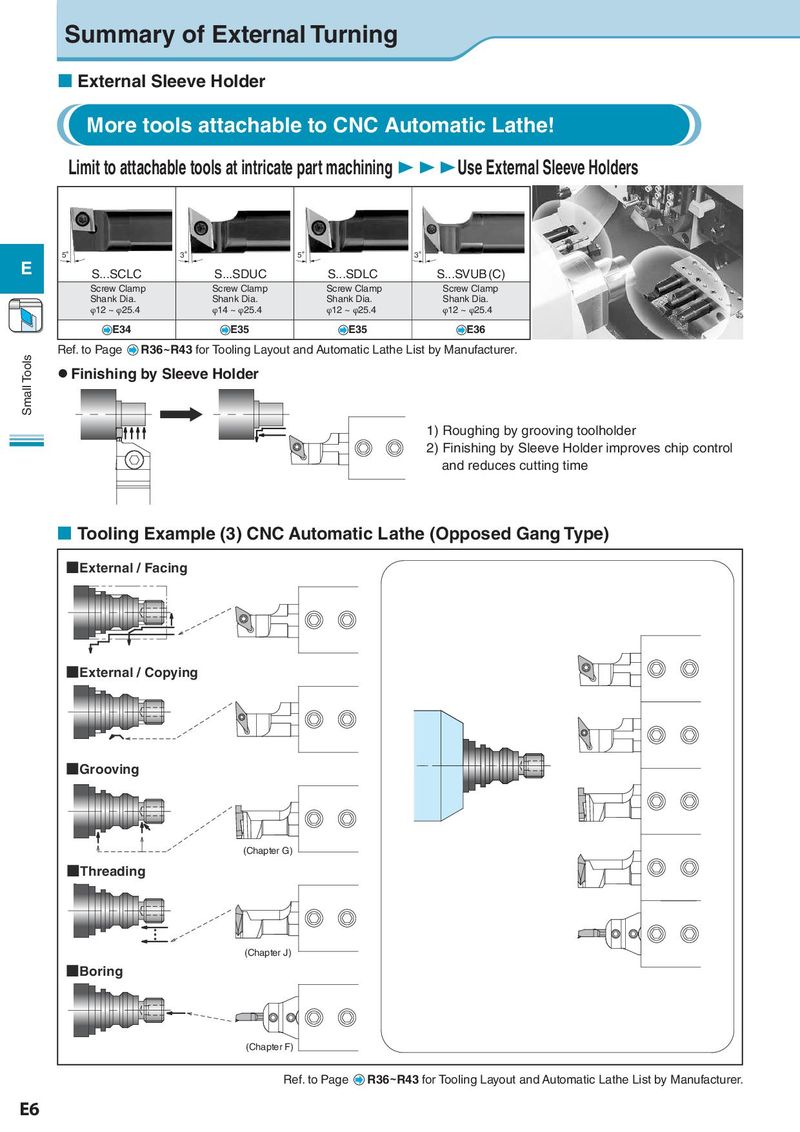

Summary of External Turning ¢ External Sleeve Holder More tools attachable to CNC Automatic Lathe! Limit to attachable tools at intricate part machining p p p Use External Sleeve Holders 5r 3r 5r 3r E S...SCLC S...SDUC S...SDLC S...SVUB (C) Screw Clamp Screw Clamp Screw Clamp Screw Clamp Shank Dia. Shank Dia. Shank Dia. Shank Dia. φ12 ~ φ25.4 φ14 ~ φ25.4 φ12 ~ φ25.4 φ12 ~ φ25.4 E34 E35 E35 E36 Small Tools Ref. to Page R36~R43 for Tooling Layout and Automatic Lathe List by Manufacturer. l Finishing by Sleeve Holder 1) Roughing by grooving toolholder 2) Finishing by Sleeve Holder improves chip control and reduces cutting time ¢ Tooling Example (3) CNC Automatic Lathe (Opposed Gang Type) ■External / Facing ■External / Copying ■Grooving (Chapter G) ■Threading (Chapter J) ■Boring (Chapter F) Ref. to Page R36~R43 for Tooling Layout and Automatic Lathe List by Manufacturer. E6
