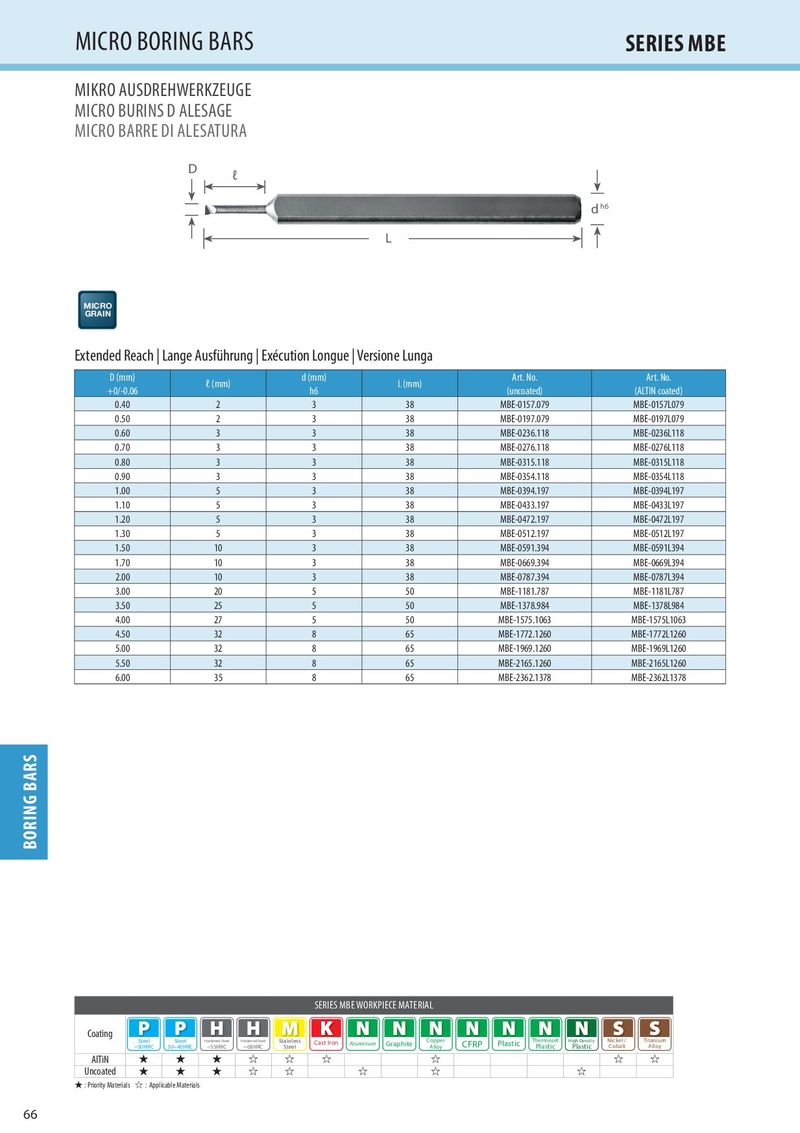

Каталог микроинструмента Kyocera 2015-2016 - страница 68

MICRO BORING BARS SERIES MBE MIKRO AUSDREHWERKZEUGE MICRO BURINS D ALESAGE MICRO BARRE DI ALESATURA D ℓ h6 d L MICRO GRAIN Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0/-0.06 h6 (uncoated) (ALTIN coated) 0.40 2 3 38 MBE-0157.079 MBE-0157L079 0.50 2 3 38 MBE-0197.079 MBE-0197L079 0.60 3 3 38 MBE-0236.118 MBE-0236L118 0.70 3 3 38 MBE-0276.118 MBE-0276L118 0.80 3 3 38 MBE-0315.118 MBE-0315L118 0.90 3 3 38 MBE-0354.118 MBE-0354L118 1.00 5 3 38 MBE-0394.197 MBE-0394L197 1.10 5 3 38 MBE-0433.197 MBE-0433L197 1.20 5 3 38 MBE-0472.197 MBE-0472L197 1.30 5 3 38 MBE-0512.197 MBE-0512L197 1.50 10 3 38 MBE-0591.394 MBE-0591L394 1.70 10 3 38 MBE-0669.394 MBE-0669L394 2.00 10 3 38 MBE-0787.394 MBE-0787L394 3.00 20 5 50 MBE-1181.787 MBE-1181L787 3.50 25 5 50 MBE-1378.984 MBE-1378L984 4.00 27 5 50 MBE-1575.1063 MBE-1575L1063 4.50 32 8 65 MBE-1772.1260 MBE-1772L1260 5.00 32 8 65 MBE-1969.1260 MBE-1969L1260 5.50 32 8 65 MBE-2165.1260 MBE-2165L1260 6.00 35 8 65 MBE-2362.1378 MBE-2362L1378 BORING BARS SERIES MBE WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Nickel / Titanium Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ☆ Uncoated ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 66 2015_KUTDE_MIT_Catalog_TZZ00058.indd 66 04.03.2016 07:53:40
