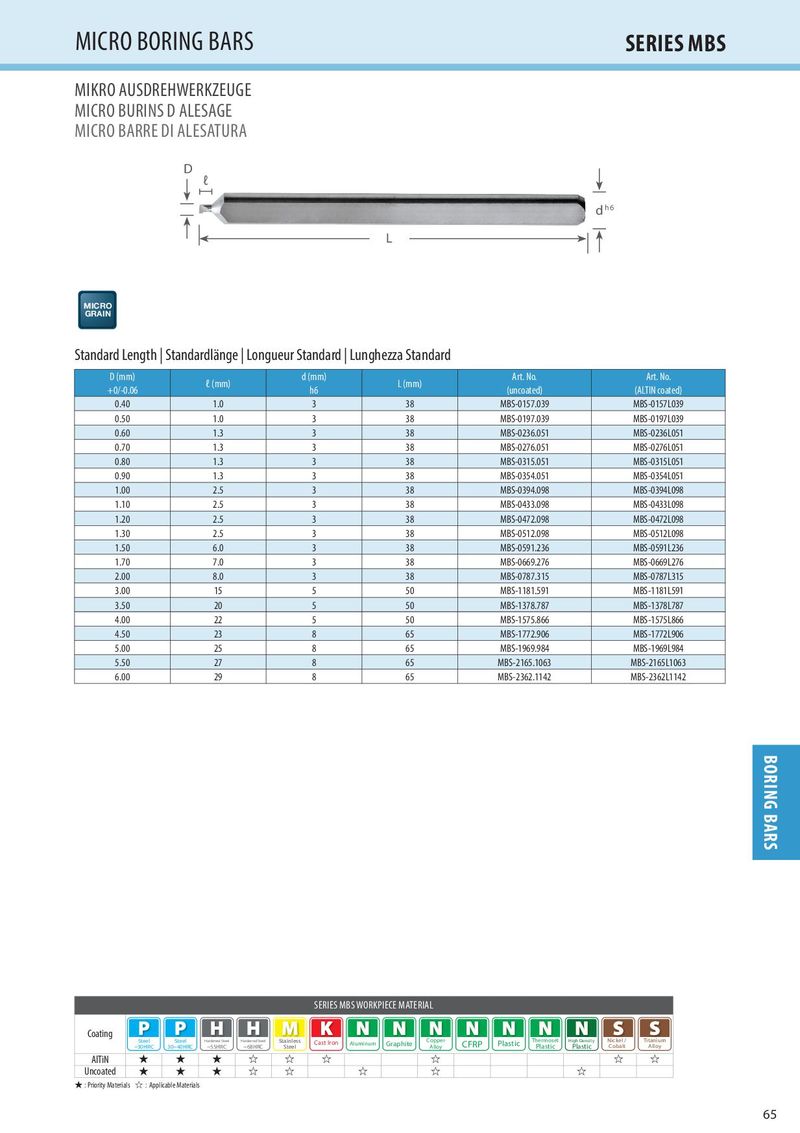

Каталог микроинструмента Kyocera 2015-2016 - страница 67

MICRO BORING BARS SERIES MBS MIKRO AUSDREHWERKZEUGE MICRO BURINS D ALESAGE MICRO BARRE DI ALESATURA D ℓ h6 d L MICRO GRAIN Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0/-0.06 h6 (uncoated) (ALTIN coated) 0.40 1.0 3 38 MBS-0157.039 MBS-0157L039 0.50 1.0 3 38 MBS-0197.039 MBS-0197L039 0.60 1.3 3 38 MBS-0236.051 MBS-0236L051 0.70 1.3 3 38 MBS-0276.051 MBS-0276L051 0.80 1.3 3 38 MBS-0315.051 MBS-0315L051 0.90 1.3 3 38 MBS-0354.051 MBS-0354L051 1.00 2.5 3 38 MBS-0394.098 MBS-0394L098 1.10 2.5 3 38 MBS-0433.098 MBS-0433L098 1.20 2.5 3 38 MBS-0472.098 MBS-0472L098 1.30 2.5 3 38 MBS-0512.098 MBS-0512L098 1.50 6.0 3 38 MBS-0591.236 MBS-0591L236 1.70 7.0 3 38 MBS-0669.276 MBS-0669L276 2.00 8.0 3 38 MBS-0787.315 MBS-0787L315 3.00 15 5 50 MBS-1181.591 MBS-1181L591 3.50 20 5 50 MBS-1378.787 MBS-1378L787 4.00 22 5 50 MBS-1575.866 MBS-1575L866 4.50 23 8 65 MBS-1772.906 MBS-1772L906 5.00 25 8 65 MBS-1969.984 MBS-1969L984 5.50 27 8 65 MBS-2165.1063 MBS-2165L1063 6.00 29 8 65 MBS-2362.1142 MBS-2362L1142 BORING BARS SERIES MBS WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Thermoset High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ☆ Uncoated ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 65 2015_KUTDE_MIT_Catalog_TZZ00058.indd 65 04.03.2016 07:53:38
