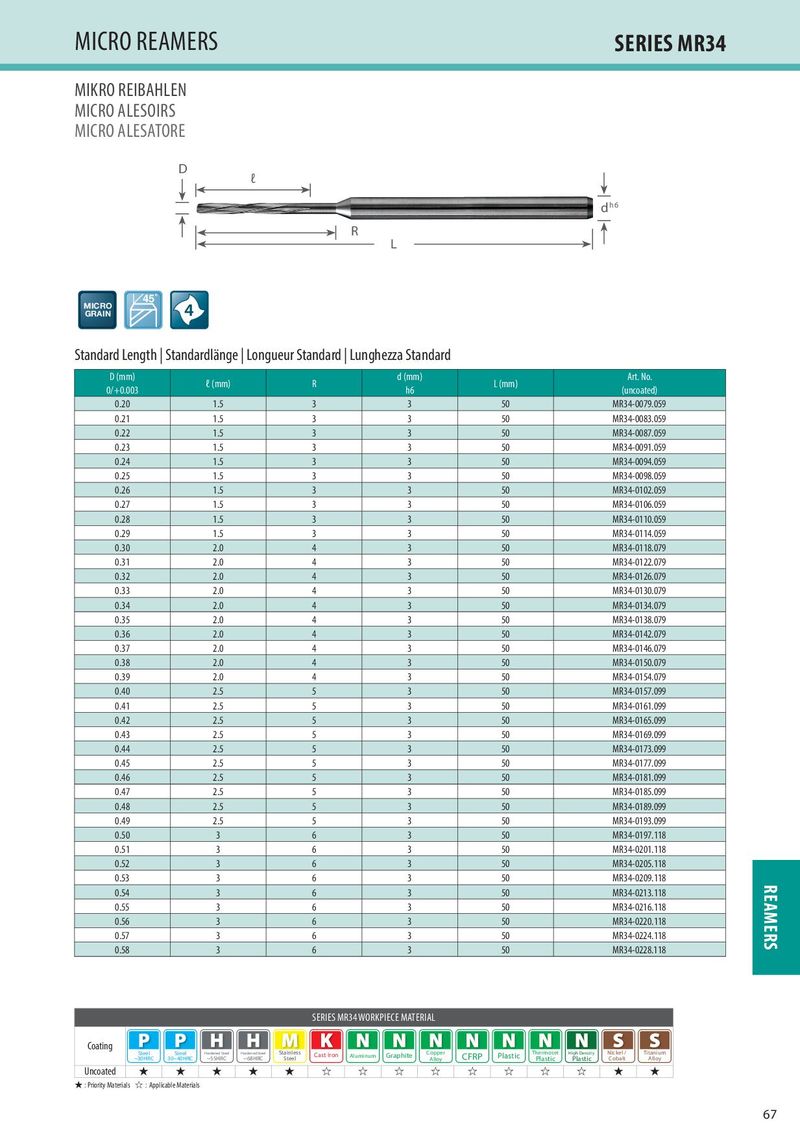

MICRO REAMERS SERIES MR34 MIKRO REIBAHLEN MICRO ALESOIRS MICRO ALESATORE D ℓ h6 d R L 45˚ MICRO GRAIN 4 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard D (mm) d (mm) Art. No. ℓ (mm) R L (mm) 0/+0.003 h6 (uncoated) 0.20 1.5 3 3 50 MR34-0079.059 0.21 1.5 3 3 50 MR34-0083.059 0.22 1.5 3 3 50 MR34-0087.059 0.23 1.5 3 3 50 MR34-0091.059 0.24 1.5 3 3 50 MR34-0094.059 0.25 1.5 3 3 50 MR34-0098.059 0.26 1.5 3 3 50 MR34-0102.059 0.27 1.5 3 3 50 MR34-0106.059 0.28 1.5 3 3 50 MR34-0110.059 0.29 1.5 3 3 50 MR34-0114.059 0.30 2.0 4 3 50 MR34-0118.079 0.31 2.0 4 3 50 MR34-0122.079 0.32 2.0 4 3 50 MR34-0126.079 0.33 2.0 4 3 50 MR34-0130.079 0.34 2.0 4 3 50 MR34-0134.079 0.35 2.0 4 3 50 MR34-0138.079 0.36 2.0 4 3 50 MR34-0142.079 0.37 2.0 4 3 50 MR34-0146.079 0.38 2.0 4 3 50 MR34-0150.079 0.39 2.0 4 3 50 MR34-0154.079 0.40 2.5 5 3 50 MR34-0157.099 0.41 2.5 5 3 50 MR34-0161.099 0.42 2.5 5 3 50 MR34-0165.099 0.43 2.5 5 3 50 MR34-0169.099 0.44 2.5 5 3 50 MR34-0173.099 0.45 2.5 5 3 50 MR34-0177.099 0.46 2.5 5 3 50 MR34-0181.099 0.47 2.5 5 3 50 MR34-0185.099 0.48 2.5 5 3 50 MR34-0189.099 0.49 2.5 5 3 50 MR34-0193.099 0.50 3 6 3 50 MR34-0197.118 0.51 3 6 3 50 MR34-0201.118 0.52 3 6 3 50 MR34-0205.118 0.53 3 6 3 50 MR34-0209.118 REAMERS 0.54 3 6 3 50 MR34-0213.118 0.55 3 6 3 50 MR34-0216.118 0.56 3 6 3 50 MR34-0220.118 0.57 3 6 3 50 MR34-0224.118 0.58 3 6 3 50 MR34-0228.118 SERIES MR34 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Copper High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy Uncoated ★ ★ ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ ★ ★ : Priority Materials ☆ : Applicable Materials 67 2015_KUTDE_MIT_Catalog_TZZ00058.indd 67 04.03.2016 07:53:42
