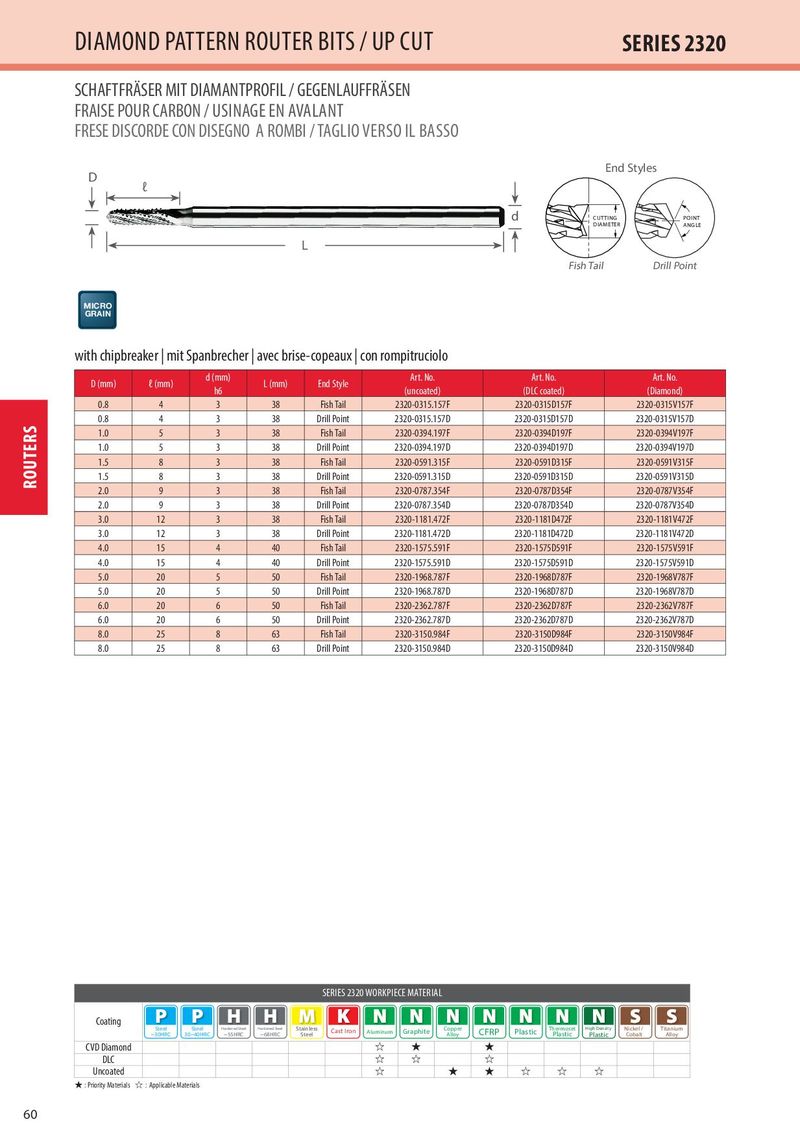

DIAMOND PATTERN ROUTER BITS / UP CUT SERIES 2320 SCHAFTFRÄSER MIT DIAMANTPROFIL / GEGENLAUFFRÄSEN FRAISE POUR CARBON / USINAGE EN AVALANT FRESE DISCORDE CON DISEGNO A ROMBI / TAGLIO VERSO IL BASSO End Styles D ℓ d CUTTING POINT DIAMETER ANGLE L Fish Tail Drill Point MICRO GRAIN with chipbreaker | mit Spanbrecher | avec brise-copeaux | con rompitruciolo d (mm) Art. No. Art. No. Art. No. D (mm) ℓ (mm) L (mm) End Style h6 (uncoated) (DLC coated) (Diamond) 0.8 4 3 38 Fish Tail 2320-0315.157F 2320-0315D157F 2320-0315V157F 0.8 4 3 38 Drill Point 2320-0315.157D 2320-0315D157D 2320-0315V157D 1.0 5 3 38 Fish Tail 2320-0394.197F 2320-0394D197F 2320-0394V197F 1.0 5 3 38 Drill Point 2320-0394.197D 2320-0394D197D 2320-0394V197D 1.5 8 3 38 Fish Tail 2320-0591.315F 2320-0591D315F 2320-0591V315F 1.5 8 3 38 Drill Point 2320-0591.315D 2320-0591D315D 2320-0591V315D ROUTERS 2.0 9 3 38 Fish Tail 2320-0787.354F 2320-0787D354F 2320-0787V354F 2.0 9 3 38 Drill Point 2320-0787.354D 2320-0787D354D 2320-0787V354D 3.0 12 3 38 Fish Tail 2320-1181.472F 2320-1181D472F 2320-1181V472F 3.0 12 3 38 Drill Point 2320-1181.472D 2320-1181D472D 2320-1181V472D 4.0 15 4 40 Fish Tail 2320-1575.591F 2320-1575D591F 2320-1575V591F 4.0 15 4 40 Drill Point 2320-1575.591D 2320-1575D591D 2320-1575V591D 5.0 20 5 50 Fish Tail 2320-1968.787F 2320-1968D787F 2320-1968V787F 5.0 20 5 50 Drill Point 2320-1968.787D 2320-1968D787D 2320-1968V787D 6.0 20 6 50 Fish Tail 2320-2362.787F 2320-2362D787F 2320-2362V787F 6.0 20 6 50 Drill Point 2320-2362.787D 2320-2362D787D 2320-2362V787D 8.0 25 8 63 Fish Tail 2320-3150.984F 2320-3150D984F 2320-3150V984F 8.0 25 8 63 Drill Point 2320-3150.984D 2320-3150D984D 2320-3150V984D SERIES 2320 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Copper High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy CVD Diamond ☆ ★ ★ DLC ☆ ☆ ☆ Uncoated ☆ ★ ★ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 60 2015_KUTDE_MIT_Catalog_TZZ00058.indd 60 04.03.2016 07:53:27
