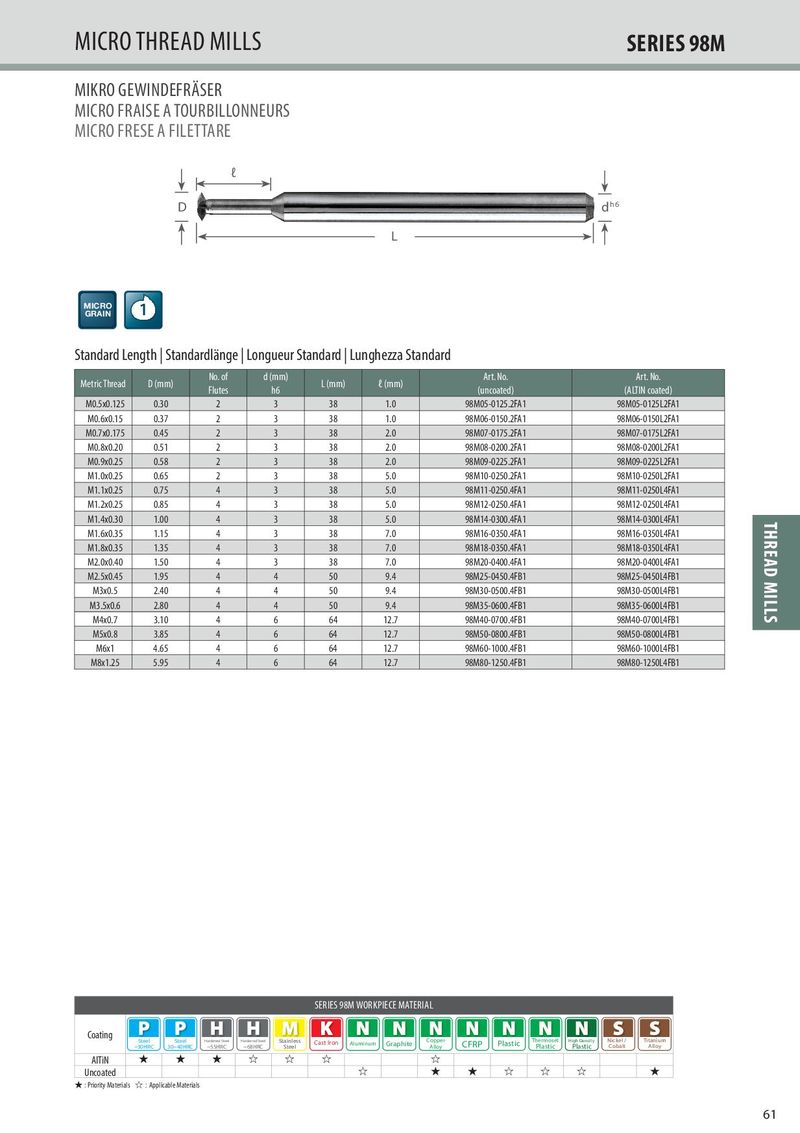

Каталог микроинструмента Kyocera 2015-2016 - страница 63

MICRO THREAD MILLS SERIES 98M MIKRO GEWINDEFRÄSER MICRO FRAISE A TOURBILLONNEURS MICRO FRESE A FILETTARE ℓ h6 D d L MICRO GRAIN 1 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard No. of d (mm) Art. No. Art. No. Metric Thread D (mm) L (mm) ℓ (mm) Flutes h6 (uncoated) (ALTIN coated) M0.5x0.125 0.30 2 3 38 1.0 98M05-0125.2FA1 98M05-0125L2FA1 M0.6x0.15 0.37 2 3 38 1.0 98M06-0150.2FA1 98M06-0150L2FA1 M0.7x0.175 0.45 2 3 38 2.0 98M07-0175.2FA1 98M07-0175L2FA1 M0.8x0.20 0.51 2 3 38 2.0 98M08-0200.2FA1 98M08-0200L2FA1 M0.9x0.25 0.58 2 3 38 2.0 98M09-0225.2FA1 98M09-0225L2FA1 M1.0x0.25 0.65 2 3 38 5.0 98M10-0250.2FA1 98M10-0250L2FA1 M1.1x0.25 0.75 4 3 38 5.0 98M11-0250.4FA1 98M11-0250L4FA1 M1.2x0.25 0.85 4 3 38 5.0 98M12-0250.4FA1 98M12-0250L4FA1 M1.4x0.30 1.00 4 3 38 5.0 98M14-0300.4FA1 98M14-0300L4FA1 THREAD MILLS M1.6x0.35 1.15 4 3 38 7.0 98M16-0350.4FA1 98M16-0350L4FA1 M1.8x0.35 1.35 4 3 38 7.0 98M18-0350.4FA1 98M18-0350L4FA1 M2.0x0.40 1.50 4 3 38 7.0 98M20-0400.4FA1 98M20-0400L4FA1 M2.5x0.45 1.95 4 4 50 9.4 98M25-0450.4FB1 98M25-0450L4FB1 M3x0.5 2.40 4 4 50 9.4 98M30-0500.4FB1 98M30-0500L4FB1 M3.5x0.6 2.80 4 4 50 9.4 98M35-0600.4FB1 98M35-0600L4FB1 M4x0.7 3.10 4 6 64 12.7 98M40-0700.4FB1 98M40-0700L4FB1 M5x0.8 3.85 4 6 64 12.7 98M50-0800.4FB1 98M50-0800L4FB1 M6x1 4.65 4 6 64 12.7 98M60-1000.4FB1 98M60-1000L4FB1 M8x1.25 5.95 4 6 64 12.7 98M80-1250.4FB1 98M80-1250L4FB1 SERIES 98M WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Thermoset High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ Uncoated ☆ ★ ★ ☆ ☆ ☆ ★ ★ : Priority Materials ☆ : Applicable Materials 61 2015_KUTDE_MIT_Catalog_TZZ00058.indd 61 04.03.2016 07:53:29
