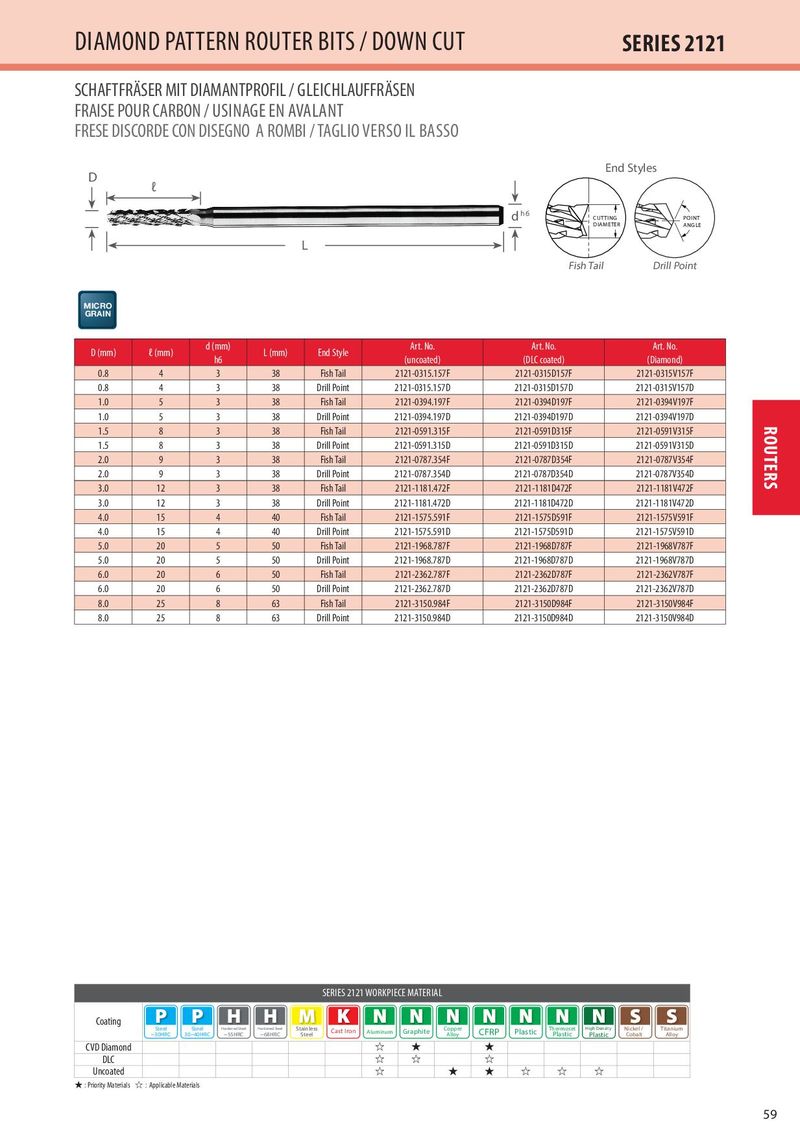

Каталог микроинструмента Kyocera 2015-2016 - страница 61

DIAMOND PATTERN ROUTER BITS / DOWN CUT SERIES 2121 SCHAFTFRÄSER MIT DIAMANTPROFIL / GLEICHLAUFFRÄSEN FRAISE POUR CARBON / USINAGE EN AVALANT FRESE DISCORDE CON DISEGNO A ROMBI / TAGLIO VERSO IL BASSO End Styles D ℓ h6 d CUTTING POINT DIAMETER ANGLE L Fish Tail Drill Point MICRO GRAIN d (mm) Art. No. Art. No. Art. No. D (mm) ℓ (mm) L (mm) End Style h6 (uncoated) (DLC coated) (Diamond) 0.8 4 3 38 Fish Tail 2121-0315.157F 2121-0315D157F 2121-0315V157F 0.8 4 3 38 Drill Point 2121-0315.157D 2121-0315D157D 2121-0315V157D 1.0 5 3 38 Fish Tail 2121-0394.197F 2121-0394D197F 2121-0394V197F 1.0 5 3 38 Drill Point 2121-0394.197D 2121-0394D197D 2121-0394V197D ROUTERS 1.5 8 3 38 Fish Tail 2121-0591.315F 2121-0591D315F 2121-0591V315F 1.5 8 3 38 Drill Point 2121-0591.315D 2121-0591D315D 2121-0591V315D 2.0 9 3 38 Fish Tail 2121-0787.354F 2121-0787D354F 2121-0787V354F 2.0 9 3 38 Drill Point 2121-0787.354D 2121-0787D354D 2121-0787V354D 3.0 12 3 38 Fish Tail 2121-1181.472F 2121-1181D472F 2121-1181V472F 3.0 12 3 38 Drill Point 2121-1181.472D 2121-1181D472D 2121-1181V472D 4.0 15 4 40 Fish Tail 2121-1575.591F 2121-1575D591F 2121-1575V591F 4.0 15 4 40 Drill Point 2121-1575.591D 2121-1575D591D 2121-1575V591D 5.0 20 5 50 Fish Tail 2121-1968.787F 2121-1968D787F 2121-1968V787F 5.0 20 5 50 Drill Point 2121-1968.787D 2121-1968D787D 2121-1968V787D 6.0 20 6 50 Fish Tail 2121-2362.787F 2121-2362D787F 2121-2362V787F 6.0 20 6 50 Drill Point 2121-2362.787D 2121-2362D787D 2121-2362V787D 8.0 25 8 63 Fish Tail 2121-3150.984F 2121-3150D984F 2121-3150V984F 8.0 25 8 63 Drill Point 2121-3150.984D 2121-3150D984D 2121-3150V984D SERIES 2121 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper High Density Nickel / Titanium Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy CVD Diamond ☆ ★ ★ DLC ☆ ☆ ☆ Uncoated ☆ ★ ★ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 59 2015_KUTDE_MIT_Catalog_TZZ00058.indd 59 04.03.2016 07:53:25
