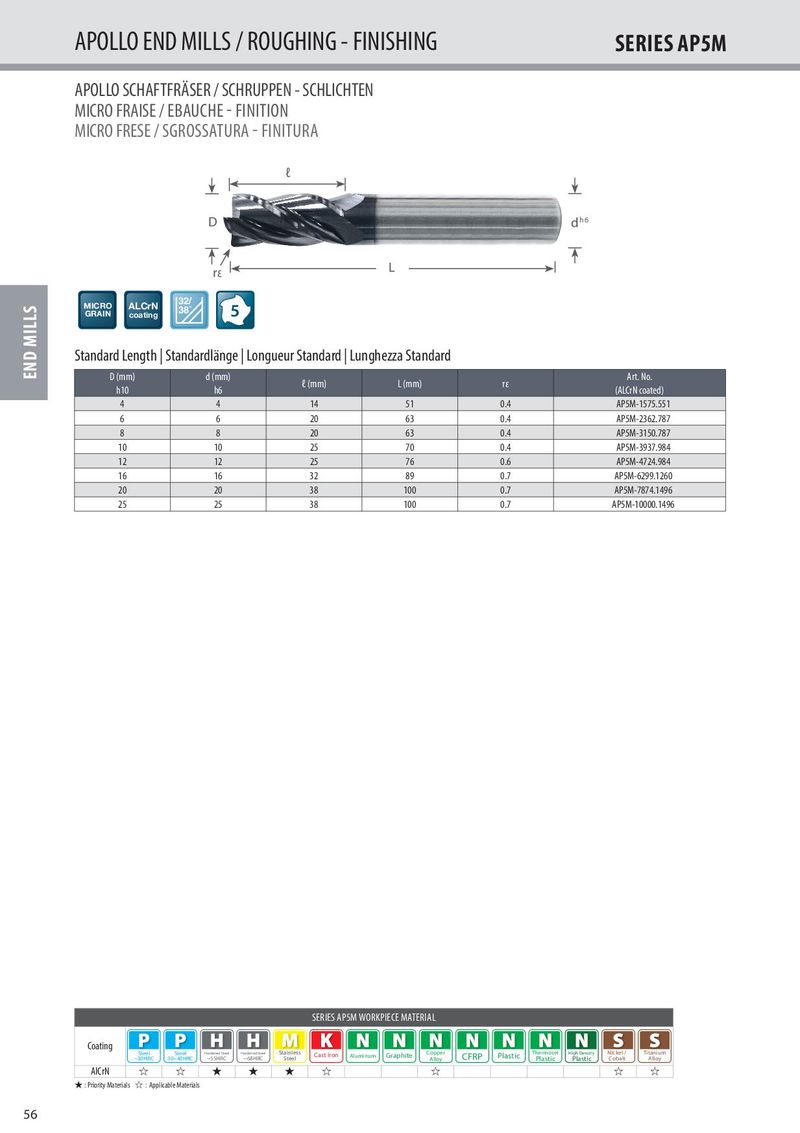

APOLLO END MILLS / ROUGHING - FINISHING SERIES AP5M APOLLO SCHAFTFRÄSER / SCHRUPPEN - SCHLICHTEN MICRO FRAISE / EBAUCHE - FINITION MICRO FRESE / SGROSSATURA - FINITURA ℓ D h6 d L rε 32/ MICRO ALCrN GRAIN 38˚ coating 5 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard END MILLS D (mm) d (mm) Art. No. ℓ (mm) L (mm) rε h10 h6 (ALCrN coated) 4 4 14 51 0.4 AP5M-1575.551 6 6 20 63 0.4 AP5M-2362.787 8 8 20 63 0.4 AP5M-3150.787 10 10 25 70 0.4 AP5M-3937.984 12 12 25 76 0.6 AP5M-4724.984 16 16 32 89 0.7 AP5M-6299.1260 20 20 38 100 0.7 AP5M-7874.1496 25 25 38 100 0.7 AP5M-10000.1496 SERIES AP5M WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Copper Thermoset High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlCrN ☆ ☆ ★ ★ ★ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 56 2015_KUTDE_MIT_Catalog_TZZ00058.indd 56 04.03.2016 07:53:19
