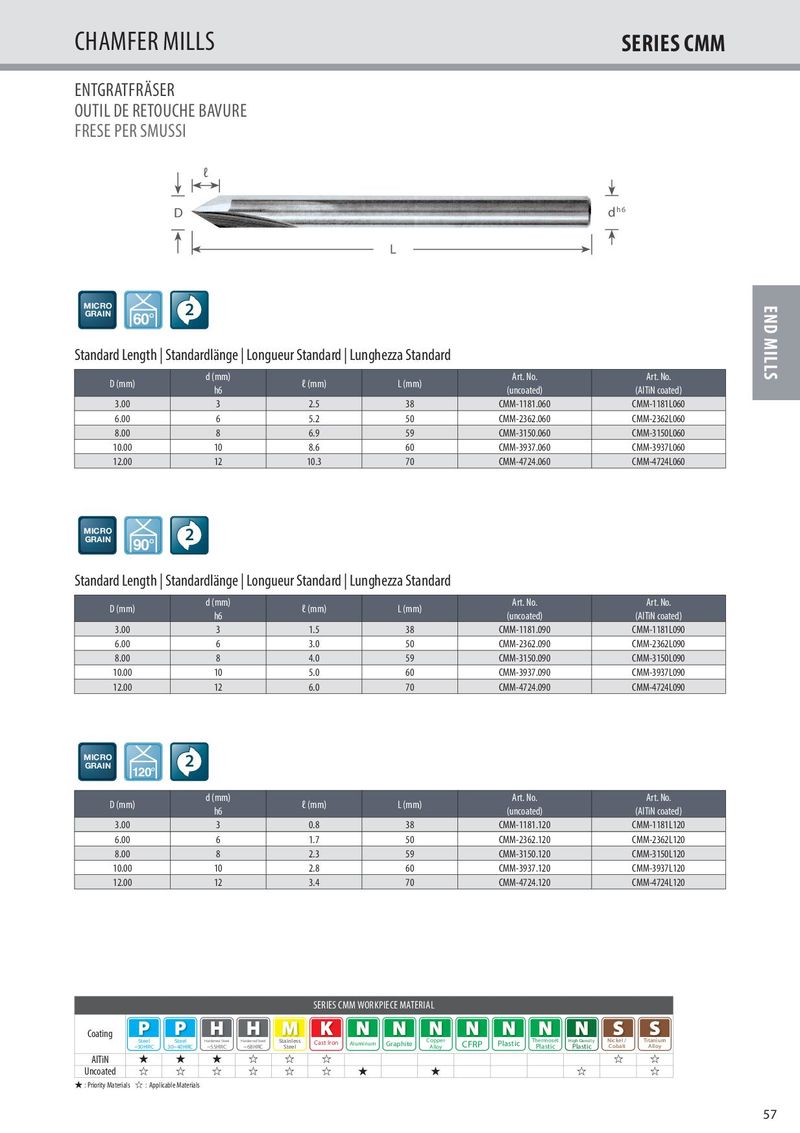

Каталог микроинструмента Kyocera 2015-2016 - страница 59

CHAMFER MILLS SERIES CMM ENTGRATFRÄSER OUTIL DE RETOUCHE BAVURE FRESE PER SMUSSI ℓ h6 D d L MICRO END MILLS GRAIN 2 60° Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard d (mm) Art. No. Art. No. D (mm) ℓ (mm) L (mm) h6 (uncoated) (AlTiN coated) 3.00 3 2.5 38 CMM-1181.060 CMM-1181L060 6.00 6 5.2 50 CMM-2362.060 CMM-2362L060 8.00 8 6.9 59 CMM-3150.060 CMM-3150L060 10.00 10 8.6 60 CMM-3937.060 CMM-3937L060 12.00 12 10.3 70 CMM-4724.060 CMM-4724L060 MICRO GRAIN 2 90° Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard d (mm) Art. No. Art. No. D (mm) ℓ (mm) L (mm) h6 (uncoated) (AlTiN coated) 3.00 3 1.5 38 CMM-1181.090 CMM-1181L090 6.00 6 3.0 50 CMM-2362.090 CMM-2362L090 8.00 8 4.0 59 CMM-3150.090 CMM-3150L090 10.00 10 5.0 60 CMM-3937.090 CMM-3937L090 12.00 12 6.0 70 CMM-4724.090 CMM-4724L090 MICRO GRAIN 2 120° d (mm) Art. No. Art. No. D (mm) ℓ (mm) L (mm) h6 (uncoated) (AlTiN coated) 3.00 3 0.8 38 CMM-1181.120 CMM-1181L120 6.00 6 1.7 50 CMM-2362.120 CMM-2362L120 8.00 8 2.3 59 CMM-3150.120 CMM-3150L120 10.00 10 2.8 60 CMM-3937.120 CMM-3937L120 12.00 12 3.4 70 CMM-4724.120 CMM-4724L120 SERIES CMM WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ★ ★ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 57 2015_KUTDE_MIT_Catalog_TZZ00058.indd 57 04.03.2016 07:53:21
