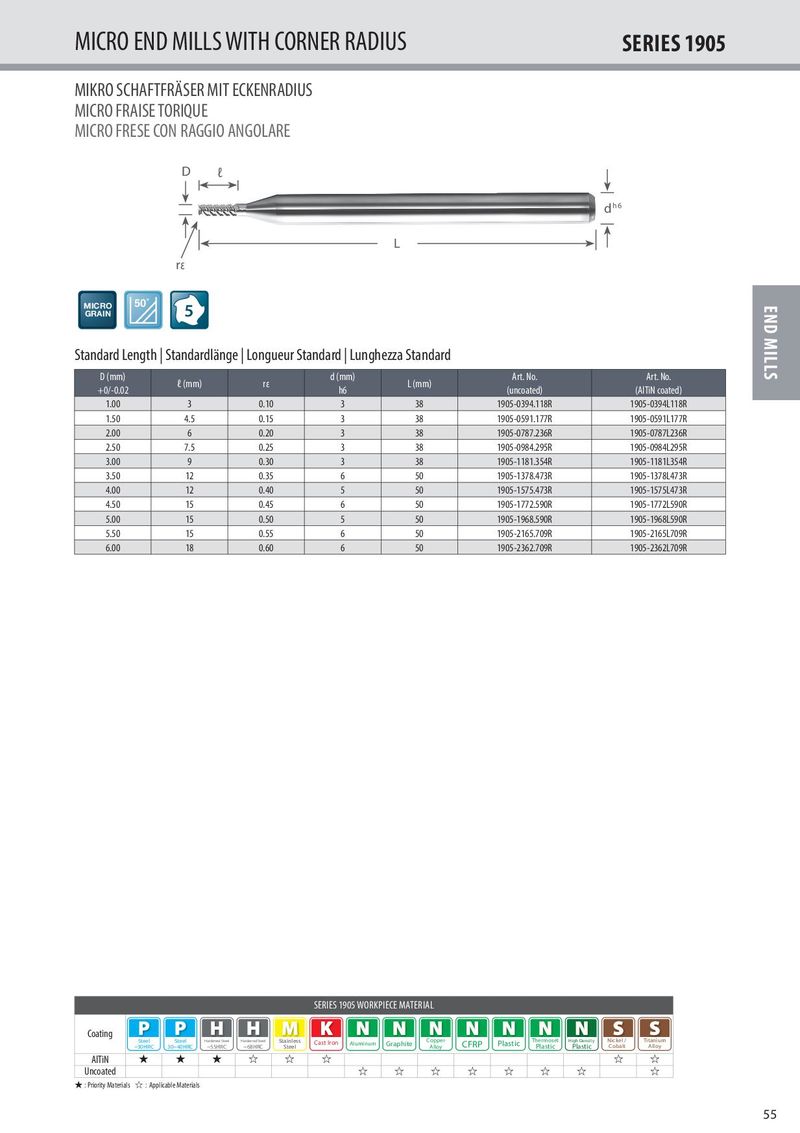

MICRO END MILLS WITH CORNER RADIUS SERIES 1905 MIKRO SCHAFTFRÄSER MIT ECKENRADIUS MICRO FRAISE TORIQUE MICRO FRESE CON RAGGIO ANGOLARE D ℓ h6 d L rε MICRO 50˚ END MILLS GRAIN 5 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard D (mm) d (mm) Art. No. Art. No. ℓ (mm) rε L (mm) +0/-0.02 h6 (uncoated) (AlTiN coated) 1.00 3 0.10 3 38 1905-0394.118R 1905-0394L118R 1.50 4.5 0.15 3 38 1905-0591.177R 1905-0591L177R 2.00 6 0.20 3 38 1905-0787.236R 1905-0787L236R 2.50 7.5 0.25 3 38 1905-0984.295R 1905-0984L295R 3.00 9 0.30 3 38 1905-1181.354R 1905-1181L354R 3.50 12 0.35 6 50 1905-1378.473R 1905-1378L473R 4.00 12 0.40 5 50 1905-1575.473R 1905-1575L473R 4.50 15 0.45 6 50 1905-1772.590R 1905-1772L590R 5.00 15 0.50 5 50 1905-1968.590R 1905-1968L590R 5.50 15 0.55 6 50 1905-2165.709R 1905-2165L709R 6.00 18 0.60 6 50 1905-2362.709R 1905-2362L709R SERIES 1905 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Thermoset High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 55 2015_KUTDE_MIT_Catalog_TZZ00058.indd 55 04.03.2016 07:53:17
