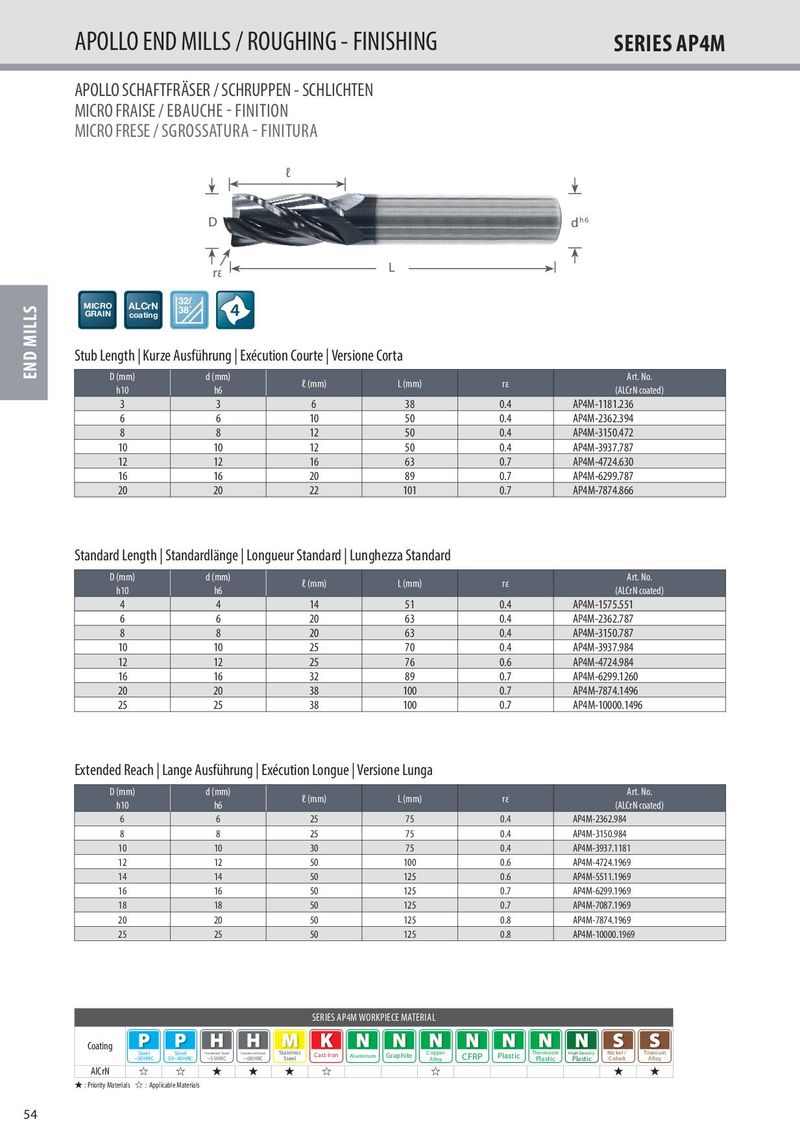

APOLLO END MILLS / ROUGHING - FINISHING SERIES AP4M APOLLO SCHAFTFRÄSER / SCHRUPPEN - SCHLICHTEN MICRO FRAISE / EBAUCHE - FINITION MICRO FRESE / SGROSSATURA - FINITURA ℓ D h6 d L rε 32/ MICRO ALCrN GRAIN 38˚ coating 4 Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta END MILLS D (mm) d (mm) Art. No. ℓ (mm) L (mm) rε h10 h6 (ALCrN coated) 3 3 6 38 0.4 AP4M-1181.236 6 6 10 50 0.4 AP4M-2362.394 8 8 12 50 0.4 AP4M-3150.472 10 10 12 50 0.4 AP4M-3937.787 12 12 16 63 0.7 AP4M-4724.630 16 16 20 89 0.7 AP4M-6299.787 20 20 22 101 0.7 AP4M-7874.866 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard D (mm) d (mm) Art. No. ℓ (mm) L (mm) rε h10 h6 (ALCrN coated) 4 4 14 51 0.4 AP4M-1575.551 6 6 20 63 0.4 AP4M-2362.787 8 8 20 63 0.4 AP4M-3150.787 10 10 25 70 0.4 AP4M-3937.984 12 12 25 76 0.6 AP4M-4724.984 16 16 32 89 0.7 AP4M-6299.1260 20 20 38 100 0.7 AP4M-7874.1496 25 25 38 100 0.7 AP4M-10000.1496 Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga D (mm) d (mm) Art. No. ℓ (mm) L (mm) rε h10 h6 (ALCrN coated) 6 6 25 75 0.4 AP4M-2362.984 8 8 25 75 0.4 AP4M-3150.984 10 10 30 75 0.4 AP4M-3937.1181 12 12 50 100 0.6 AP4M-4724.1969 14 14 50 125 0.6 AP4M-5511.1969 16 16 50 125 0.7 AP4M-6299.1969 18 18 50 125 0.7 AP4M-7087.1969 20 20 50 125 0.8 AP4M-7874.1969 25 25 50 125 0.8 AP4M-10000.1969 SERIES AP4M WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Copper High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AlCrN ☆ ☆ ★ ★ ★ ☆ ☆ ★ ★ ★ : Priority Materials ☆ : Applicable Materials 54 2015_KUTDE_MIT_Catalog_TZZ00058.indd 54 04.03.2016 07:53:15
