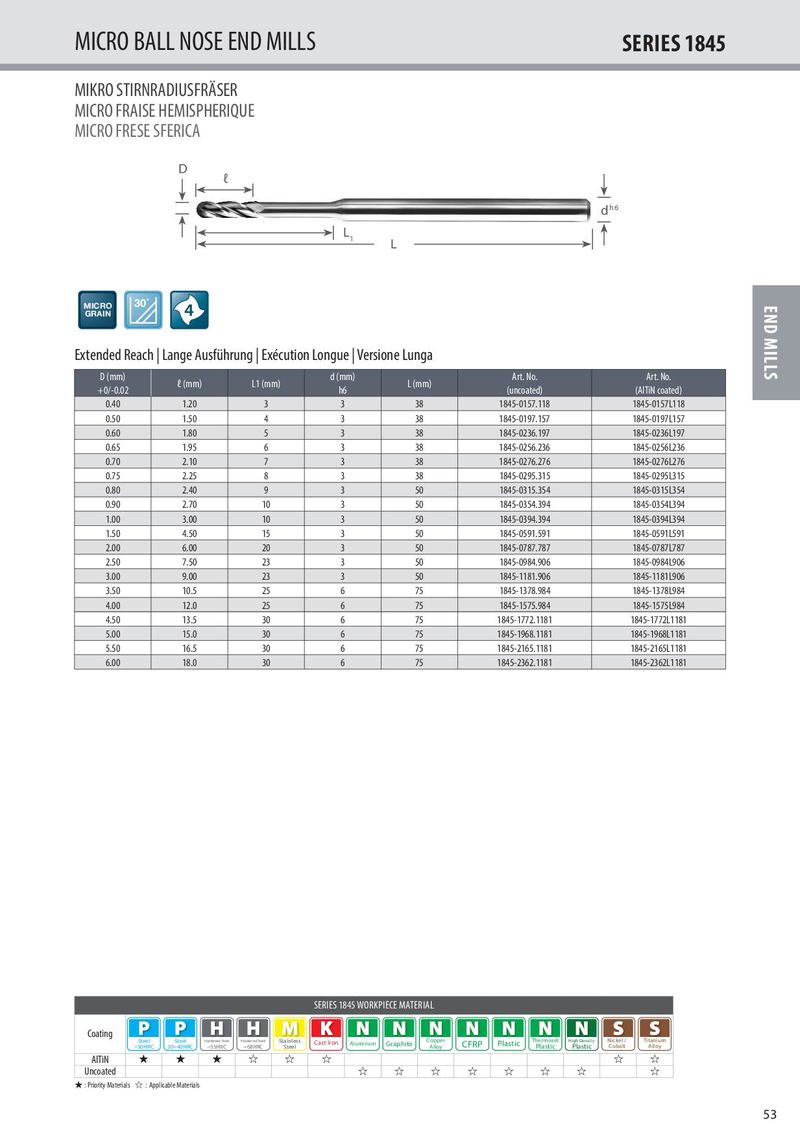

MICRO BALL NOSE END MILLS SERIES 1845 MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA D ℓ h6 d L 1 L MICRO 30˚ END MILLS GRAIN 4 Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga D (mm) d (mm) Art. No. Art. No. ℓ (mm) L1 (mm) L (mm) +0/-0.02 h6 (uncoated) (AlTiN coated) 0.40 1.20 3 3 38 1845-0157.118 1845-0157L118 0.50 1.50 4 3 38 1845-0197.157 1845-0197L157 0.60 1.80 5 3 38 1845-0236.197 1845-0236L197 0.65 1.95 6 3 38 1845-0256.236 1845-0256L236 0.70 2.10 7 3 38 1845-0276.276 1845-0276L276 0.75 2.25 8 3 38 1845-0295.315 1845-0295L315 0.80 2.40 9 3 50 1845-0315.354 1845-0315L354 0.90 2.70 10 3 50 1845-0354.394 1845-0354L394 1.00 3.00 10 3 50 1845-0394.394 1845-0394L394 1.50 4.50 15 3 50 1845-0591.591 1845-0591L591 2.00 6.00 20 3 50 1845-0787.787 1845-0787L787 2.50 7.50 23 3 50 1845-0984.906 1845-0984L906 3.00 9.00 23 3 50 1845-1181.906 1845-1181L906 3.50 10.5 25 6 75 1845-1378.984 1845-1378L984 4.00 12.0 25 6 75 1845-1575.984 1845-1575L984 4.50 13.5 30 6 75 1845-1772.1181 1845-1772L1181 5.00 15.0 30 6 75 1845-1968.1181 1845-1968L1181 5.50 16.5 30 6 75 1845-2165.1181 1845-2165L1181 6.00 18.0 30 6 75 1845-2362.1181 1845-2362L1181 SERIES 1845 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 53 2015_KUTDE_MIT_Catalog_TZZ00058.indd 53 04.03.2016 07:53:12
