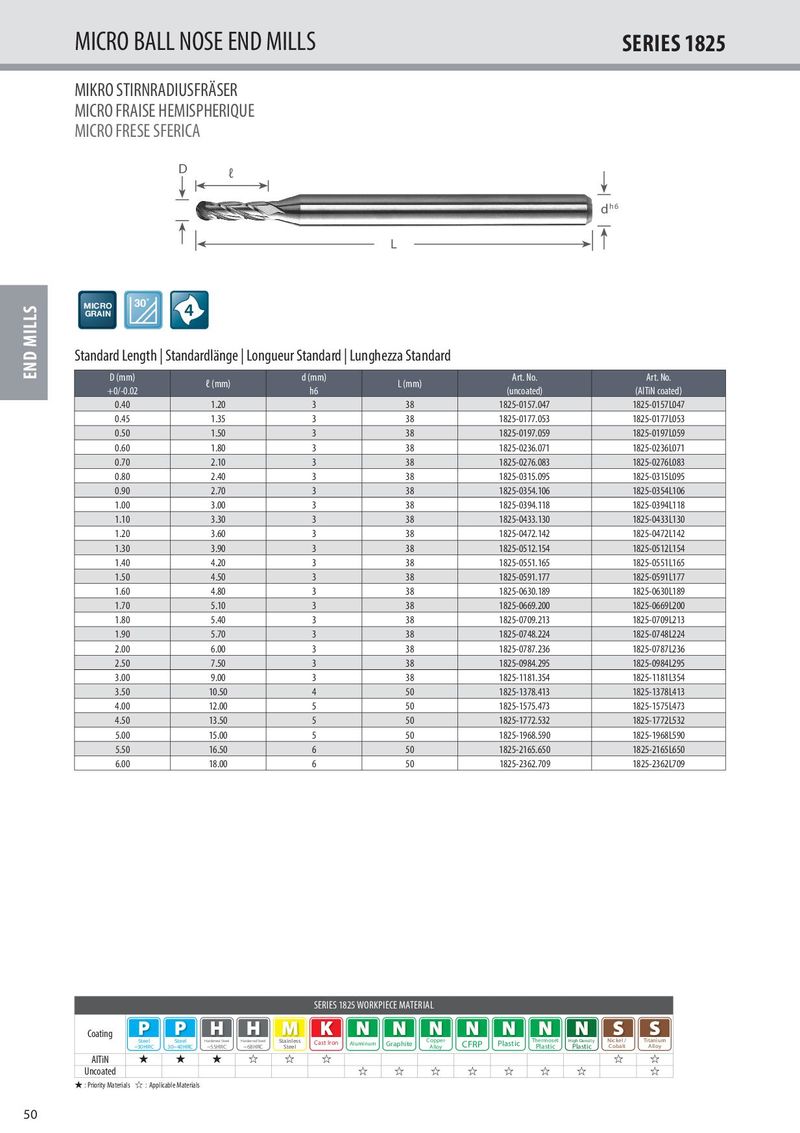

Каталог микроинструмента Kyocera 2015-2016 - страница 52

MICRO BALL NOSE END MILLS SERIES 1825 MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA D ℓ h6 d L MICRO 30˚ GRAIN 4 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard END MILLS D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0/-0.02 h6 (uncoated) (AlTiN coated) 0.40 1.20 3 38 1825-0157.047 1825-0157L047 0.45 1.35 3 38 1825-0177.053 1825-0177L053 0.50 1.50 3 38 1825-0197.059 1825-0197L059 0.60 1.80 3 38 1825-0236.071 1825-0236L071 0.70 2.10 3 38 1825-0276.083 1825-0276L083 0.80 2.40 3 38 1825-0315.095 1825-0315L095 0.90 2.70 3 38 1825-0354.106 1825-0354L106 1.00 3.00 3 38 1825-0394.118 1825-0394L118 1.10 3.30 3 38 1825-0433.130 1825-0433L130 1.20 3.60 3 38 1825-0472.142 1825-0472L142 1.30 3.90 3 38 1825-0512.154 1825-0512L154 1.40 4.20 3 38 1825-0551.165 1825-0551L165 1.50 4.50 3 38 1825-0591.177 1825-0591L177 1.60 4.80 3 38 1825-0630.189 1825-0630L189 1.70 5.10 3 38 1825-0669.200 1825-0669L200 1.80 5.40 3 38 1825-0709.213 1825-0709L213 1.90 5.70 3 38 1825-0748.224 1825-0748L224 2.00 6.00 3 38 1825-0787.236 1825-0787L236 2.50 7.50 3 38 1825-0984.295 1825-0984L295 3.00 9.00 3 38 1825-1181.354 1825-1181L354 3.50 10.50 4 50 1825-1378.413 1825-1378L413 4.00 12.00 5 50 1825-1575.473 1825-1575L473 4.50 13.50 5 50 1825-1772.532 1825-1772L532 5.00 15.00 5 50 1825-1968.590 1825-1968L590 5.50 16.50 6 50 1825-2165.650 1825-2165L650 6.00 18.00 6 50 1825-2362.709 1825-2362L709 SERIES 1825 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 50 2015_KUTDE_MIT_Catalog_TZZ00058.indd 50 04.03.2016 07:53:06
