Каталог микроинструмента Kyocera 2015-2016 - страница 53

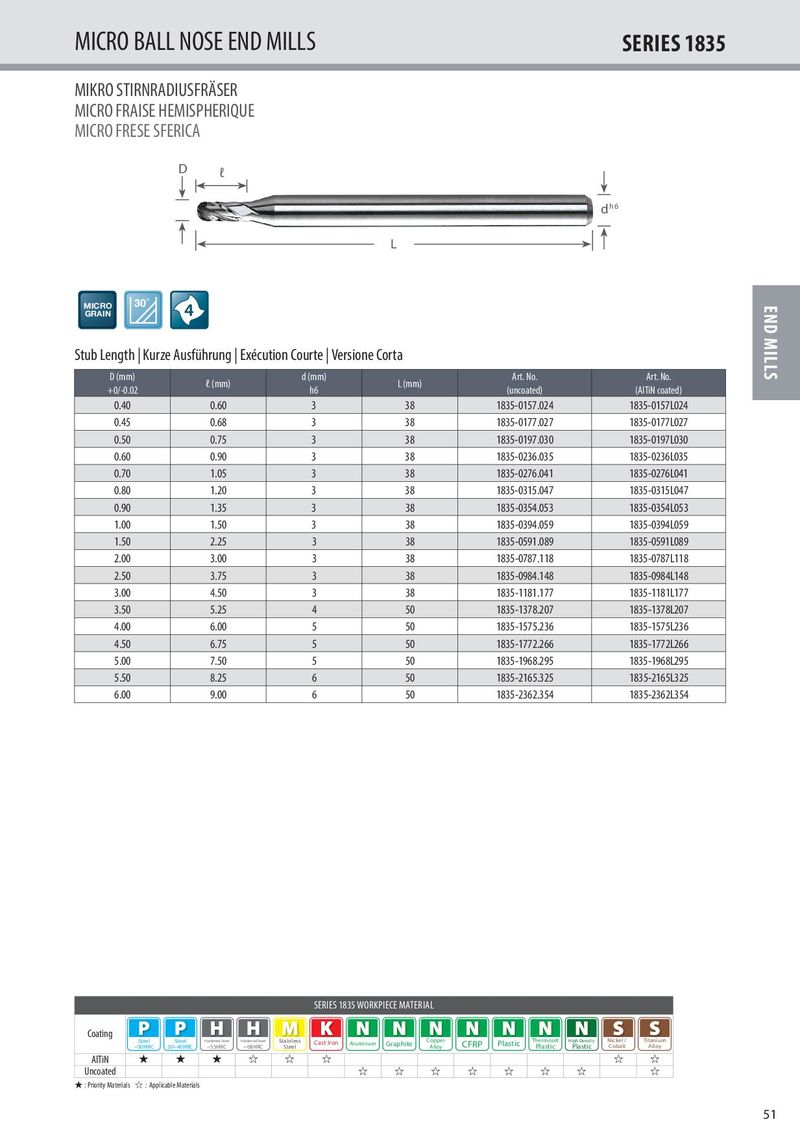

MICRO BALL NOSE END MILLS SERIES 1835 MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA D ℓ h6 d L MICRO 30˚ END MILLS GRAIN 4 Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0/-0.02 h6 (uncoated) (AlTiN coated) 0.40 0.60 3 38 1835-0157.024 1835-0157L024 0.45 0.68 3 38 1835-0177.027 1835-0177L027 0.50 0.75 3 38 1835-0197.030 1835-0197L030 0.60 0.90 3 38 1835-0236.035 1835-0236L035 0.70 1.05 3 38 1835-0276.041 1835-0276L041 0.80 1.20 3 38 1835-0315.047 1835-0315L047 0.90 1.35 3 38 1835-0354.053 1835-0354L053 1.00 1.50 3 38 1835-0394.059 1835-0394L059 1.50 2.25 3 38 1835-0591.089 1835-0591L089 2.00 3.00 3 38 1835-0787.118 1835-0787L118 2.50 3.75 3 38 1835-0984.148 1835-0984L148 3.00 4.50 3 38 1835-1181.177 1835-1181L177 3.50 5.25 4 50 1835-1378.207 1835-1378L207 4.00 6.00 5 50 1835-1575.236 1835-1575L236 4.50 6.75 5 50 1835-1772.266 1835-1772L266 5.00 7.50 5 50 1835-1968.295 1835-1968L295 5.50 8.25 6 50 1835-2165.325 1835-2165L325 6.00 9.00 6 50 1835-2362.354 1835-2362L354 SERIES 1835 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 51 2015_KUTDE_MIT_Catalog_TZZ00058.indd 51 04.03.2016 07:53:08
