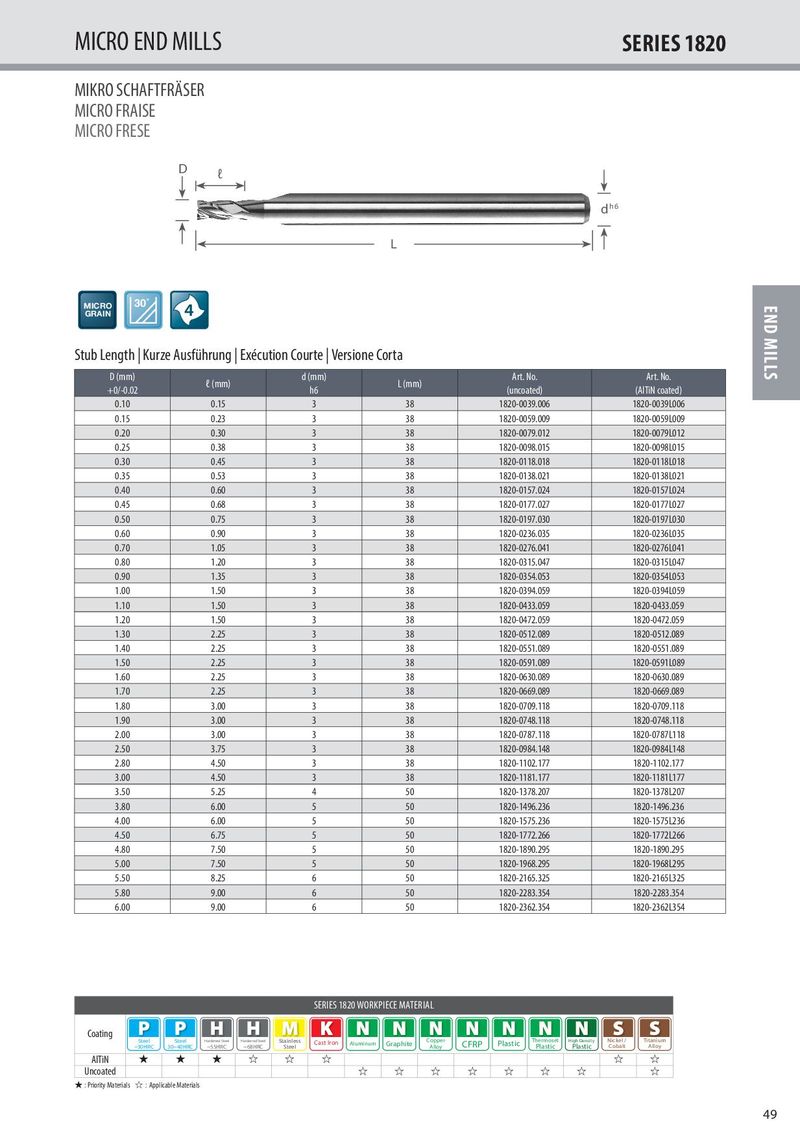

MICRO END MILLS SERIES 1820 MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE D ℓ h6 d L MICRO 30˚ END MILLS GRAIN 4 Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0/-0.02 h6 (uncoated) (AlTiN coated) 0.10 0.15 3 38 1820-0039.006 1820-0039L006 0.15 0.23 3 38 1820-0059.009 1820-0059L009 0.20 0.30 3 38 1820-0079.012 1820-0079L012 0.25 0.38 3 38 1820-0098.015 1820-0098L015 0.30 0.45 3 38 1820-0118.018 1820-0118L018 0.35 0.53 3 38 1820-0138.021 1820-0138L021 0.40 0.60 3 38 1820-0157.024 1820-0157L024 0.45 0.68 3 38 1820-0177.027 1820-0177L027 0.50 0.75 3 38 1820-0197.030 1820-0197L030 0.60 0.90 3 38 1820-0236.035 1820-0236L035 0.70 1.05 3 38 1820-0276.041 1820-0276L041 0.80 1.20 3 38 1820-0315.047 1820-0315L047 0.90 1.35 3 38 1820-0354.053 1820-0354L053 1.00 1.50 3 38 1820-0394.059 1820-0394L059 1.10 1.50 3 38 1820-0433.059 1820-0433.059 1.20 1.50 3 38 1820-0472.059 1820-0472.059 1.30 2.25 3 38 1820-0512.089 1820-0512.089 1.40 2.25 3 38 1820-0551.089 1820-0551.089 1.50 2.25 3 38 1820-0591.089 1820-0591L089 1.60 2.25 3 38 1820-0630.089 1820-0630.089 1.70 2.25 3 38 1820-0669.089 1820-0669.089 1.80 3.00 3 38 1820-0709.118 1820-0709.118 1.90 3.00 3 38 1820-0748.118 1820-0748.118 2.00 3.00 3 38 1820-0787.118 1820-0787L118 2.50 3.75 3 38 1820-0984.148 1820-0984L148 2.80 4.50 3 38 1820-1102.177 1820-1102.177 3.00 4.50 3 38 1820-1181.177 1820-1181L177 3.50 5.25 4 50 1820-1378.207 1820-1378L207 3.80 6.00 5 50 1820-1496.236 1820-1496.236 4.00 6.00 5 50 1820-1575.236 1820-1575L236 4.50 6.75 5 50 1820-1772.266 1820-1772L266 4.80 7.50 5 50 1820-1890.295 1820-1890.295 5.00 7.50 5 50 1820-1968.295 1820-1968L295 5.50 8.25 6 50 1820-2165.325 1820-2165L325 5.80 9.00 6 50 1820-2283.354 1820-2283.354 6.00 9.00 6 50 1820-2362.354 1820-2362L354 SERIES 1820 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Thermoset High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 49 2015_KUTDE_MIT_Catalog_TZZ00058.indd 49 04.03.2016 07:53:04
