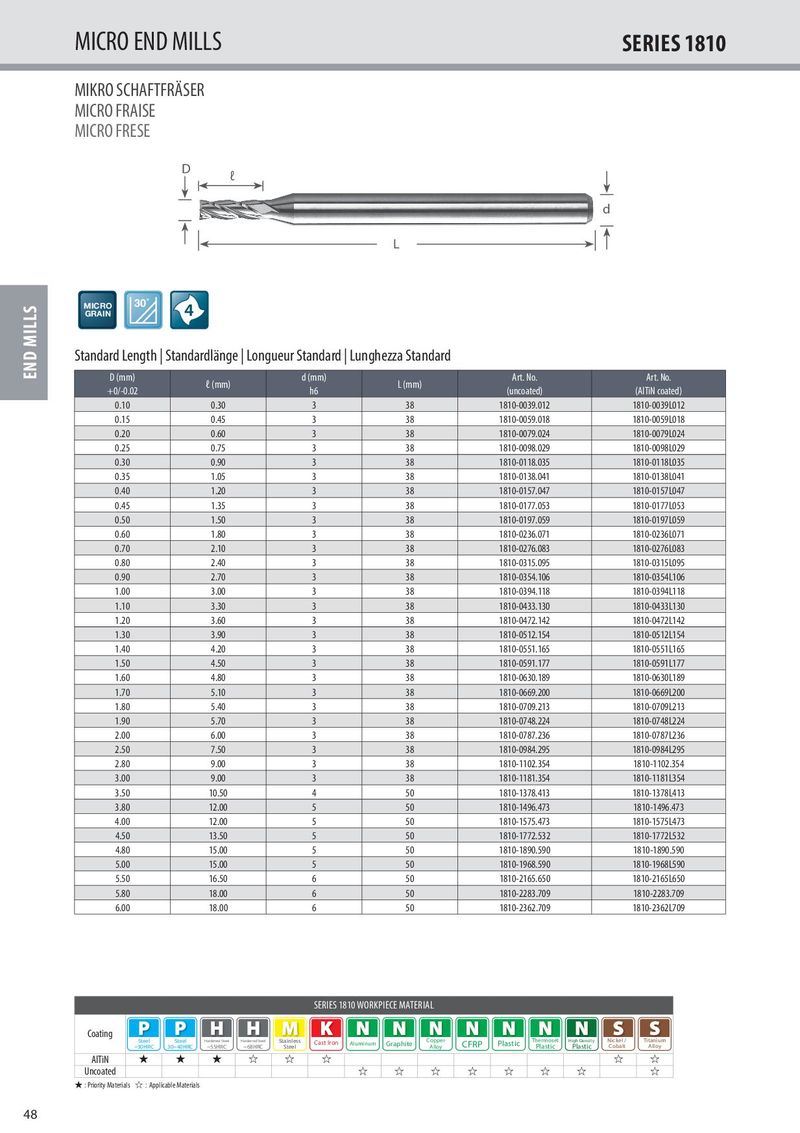

MICRO END MILLS SERIES 1810 MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE D ℓ d L MICRO 30˚ GRAIN 4 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard END MILLS D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0/-0.02 h6 (uncoated) (AlTiN coated) 0.10 0.30 3 38 1810-0039.012 1810-0039L012 0.15 0.45 3 38 1810-0059.018 1810-0059L018 0.20 0.60 3 38 1810-0079.024 1810-0079L024 0.25 0.75 3 38 1810-0098.029 1810-0098L029 0.30 0.90 3 38 1810-0118.035 1810-0118L035 0.35 1.05 3 38 1810-0138.041 1810-0138L041 0.40 1.20 3 38 1810-0157.047 1810-0157L047 0.45 1.35 3 38 1810-0177.053 1810-0177L053 0.50 1.50 3 38 1810-0197.059 1810-0197L059 0.60 1.80 3 38 1810-0236.071 1810-0236L071 0.70 2.10 3 38 1810-0276.083 1810-0276L083 0.80 2.40 3 38 1810-0315.095 1810-0315L095 0.90 2.70 3 38 1810-0354.106 1810-0354L106 1.00 3.00 3 38 1810-0394.118 1810-0394L118 1.10 3.30 3 38 1810-0433.130 1810-0433L130 1.20 3.60 3 38 1810-0472.142 1810-0472L142 1.30 3.90 3 38 1810-0512.154 1810-0512L154 1.40 4.20 3 38 1810-0551.165 1810-0551L165 1.50 4.50 3 38 1810-0591.177 1810-0591L177 1.60 4.80 3 38 1810-0630.189 1810-0630L189 1.70 5.10 3 38 1810-0669.200 1810-0669L200 1.80 5.40 3 38 1810-0709.213 1810-0709L213 1.90 5.70 3 38 1810-0748.224 1810-0748L224 2.00 6.00 3 38 1810-0787.236 1810-0787L236 2.50 7.50 3 38 1810-0984.295 1810-0984L295 2.80 9.00 3 38 1810-1102.354 1810-1102.354 3.00 9.00 3 38 1810-1181.354 1810-1181L354 3.50 10.50 4 50 1810-1378.413 1810-1378L413 3.80 12.00 5 50 1810-1496.473 1810-1496.473 4.00 12.00 5 50 1810-1575.473 1810-1575L473 4.50 13.50 5 50 1810-1772.532 1810-1772L532 4.80 15.00 5 50 1810-1890.590 1810-1890.590 5.00 15.00 5 50 1810-1968.590 1810-1968L590 5.50 16.50 6 50 1810-2165.650 1810-2165L650 5.80 18.00 6 50 1810-2283.709 1810-2283.709 6.00 18.00 6 50 1810-2362.709 1810-2362L709 SERIES 1810 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Thermoset High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 48 2015_KUTDE_MIT_Catalog_TZZ00058.indd 48 04.03.2016 07:53:02
