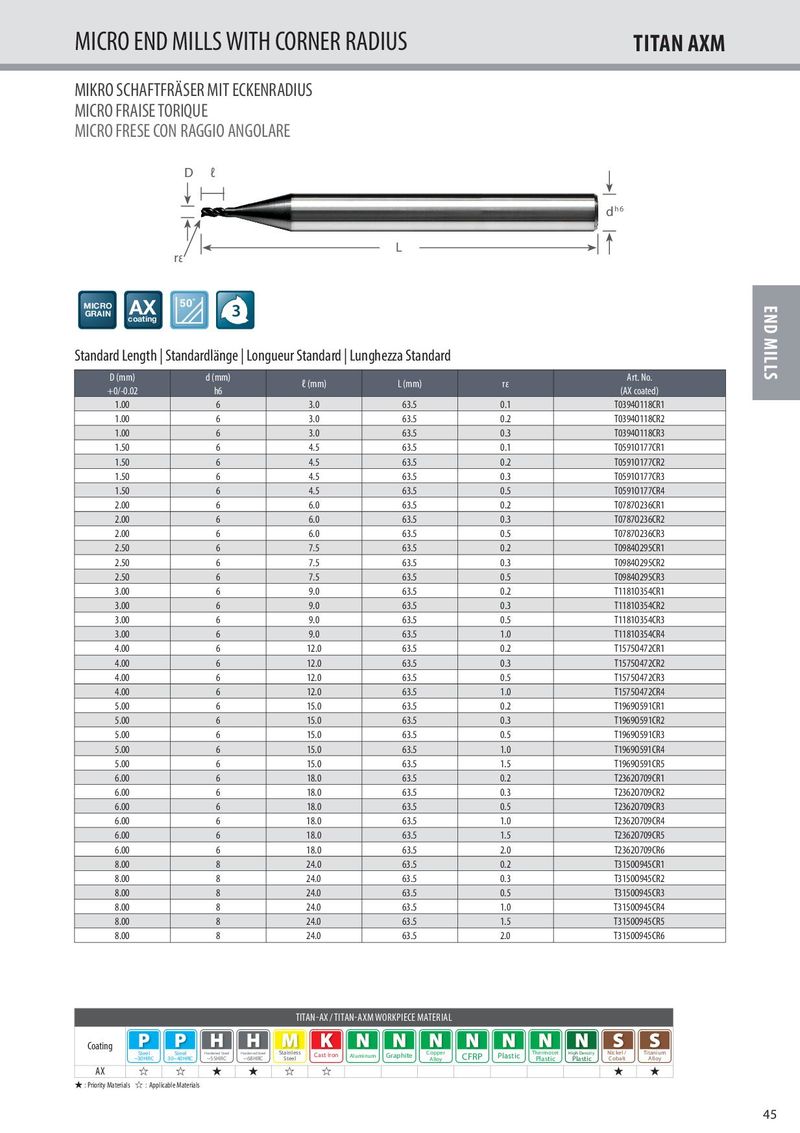

MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
D ℓ
d h6
L
rε
AX 50˚ 3
MICRO GRAIN coating Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
| D (mm) +0/-0.02 | d (mm) h6 | ℓ (mm) | L (mm) | rε | Art. No. (AX coated) |
| 1.00 | 6 | 3.0 | 63.5 | 0.1 | T0394O118CR1 |
| 1.00 | 6 | 3.0 | 63.5 | 0.2 | T0394O118CR2 |
| 1.00 | 6 | 3.0 | 63.5 | 0.3 | T0394O118CR3 |
| 1.50 | 6 | 4.5 | 63.5 | 0.1 | T0591O177CR1 |
| 1.50 | 6 | 4.5 | 63.5 | 0.2 | T0591O177CR2 |
| 1.50 | 6 | 4.5 | 63.5 | 0.3 | T0591O177CR3 |
| 1.50 | 6 | 4.5 | 63.5 | 0.5 | T0591O177CR4 |
| 2.00 | 6 | 6.0 | 63.5 | 0.2 | T0787O236CR1 |
| 2.00 | 6 | 6.0 | 63.5 | 0.3 | T0787O236CR2 |
| 2.00 | 6 | 6.0 | 63.5 | 0.5 | T0787O236CR3 |
| 2.50 | 6 | 7.5 | 63.5 | 0.2 | T0984O295CR1 |
| 2.50 | 6 | 7.5 | 63.5 | 0.3 | T0984O295CR2 |
| 2.50 | 6 | 7.5 | 63.5 | 0.5 | T0984O295CR3 |
| 3.00 | 6 | 9.0 | 63.5 | 0.2 | T1181O354CR1 |
| 3.00 | 6 | 9.0 | 63.5 | 0.3 | T1181O354CR2 |
| 3.00 | 6 | 9.0 | 63.5 | 0.5 | T1181O354CR3 |
| 3.00 | 6 | 9.0 | 63.5 | 1.0 | T1181O354CR4 |
| 4.00 | 6 | 12.0 | 63.5 | 0.2 | T1575O472CR1 |
| 4.00 | 6 | 12.0 | 63.5 | 0.3 | T1575O472CR2 |
| 4.00 | 6 | 12.0 | 63.5 | 0.5 | T1575O472CR3 |
| 4.00 | 6 | 12.0 | 63.5 | 1.0 | T1575O472CR4 |
| 5.00 | 6 | 15.0 | 63.5 | 0.2 | T1969O591CR1 |
| 5.00 | 6 | 15.0 | 63.5 | 0.3 | T1969O591CR2 |
| 5.00 | 6 | 15.0 | 63.5 | 0.5 | T1969O591CR3 |
| 5.00 | 6 | 15.0 | 63.5 | 1.0 | T1969O591CR4 |
| 5.00 | 6 | 15.0 | 63.5 | 1.5 | T1969O591CR5 |
| 6.00 | 6 | 18.0 | 63.5 | 0.2 | T2362O709CR1 |
| 6.00 | 6 | 18.0 | 63.5 | 0.3 | T2362O709CR2 |
| 6.00 | 6 | 18.0 | 63.5 | 0.5 | T2362O709CR3 |
| 6.00 | 6 | 18.0 | 63.5 | 1.0 | T2362O709CR4 |
| 6.00 | 6 | 18.0 | 63.5 | 1.5 | T2362O709CR5 |
| 6.00 | 6 | 18.0 | 63.5 | 2.0 | T2362O709CR6 |
| 8.00 | 8 | 24.0 | 63.5 | 0.2 | T3150O945CR1 |
| 8.00 | 8 | 24.0 | 63.5 | 0.3 | T3150O945CR2 |
| 8.00 | 8 | 24.0 | 63.5 | 0.5 | T3150O945CR3 |
| 8.00 | 8 | 24.0 | 63.5 | 1.0 | T3150O945CR4 |
| 8.00 | 8 | 24.0 | 63.5 | 1.5 | T3150O945CR5 |
| 8.00 | 8 | 24.0 | 63.5 | 2.0 | T3150O945CR6 |
TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating
| Steel | Steel | Hardened Steel | Hardened Steel | Stainless | Cast Iron | Graphite | Copper | CFRP | Plastic | Thermoset | High Density | Nickel / | Titanium | |
| ~30HRC | 30~40HRC | ~55HRC | ~68HRC | Steel | Aluminum | Alloy | Plastic | Plastic | Cobalt | Alloy |
