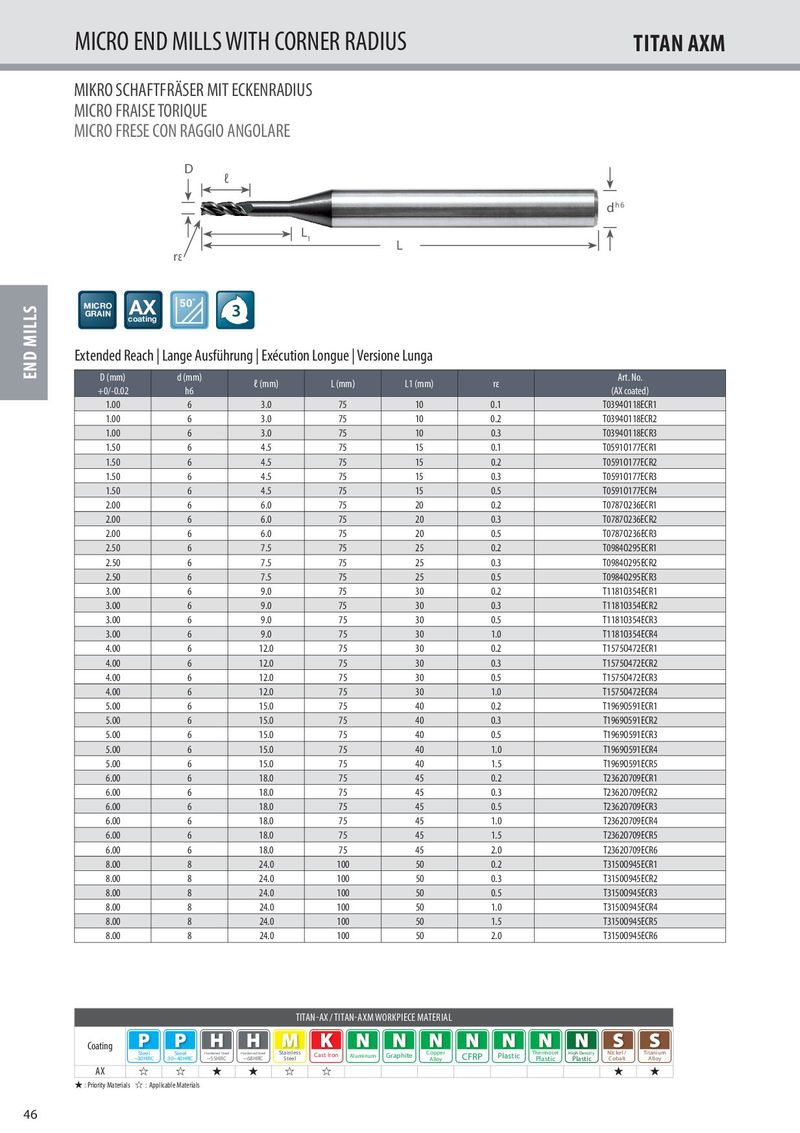

MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
D
ℓ
d h6
L
1 L
rε
AX 50˚ 3
MICRO GRAIN coating Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
| D (mm) +0/-0.02 | d (mm) h6 | ℓ (mm) | L (mm) | L1 (mm) | rε | Art. No. (AX coated) |
| 1.00 | 6 | 3.0 | 75 | 10 | 0.1 | T0394O118ECR1 |
| 1.00 | 6 | 3.0 | 75 | 10 | 0.2 | T0394O118ECR2 |
| 1.00 | 6 | 3.0 | 75 | 10 | 0.3 | T0394O118ECR3 |
| 1.50 | 6 | 4.5 | 75 | 15 | 0.1 | T0591O177ECR1 |
| 1.50 | 6 | 4.5 | 75 | 15 | 0.2 | T0591O177ECR2 |
| 1.50 | 6 | 4.5 | 75 | 15 | 0.3 | T0591O177ECR3 |
| 1.50 | 6 | 4.5 | 75 | 15 | 0.5 | T0591O177ECR4 |
| 2.00 | 6 | 6.0 | 75 | 20 | 0.2 | T0787O236ECR1 |
| 2.00 | 6 | 6.0 | 75 | 20 | 0.3 | T0787O236ECR2 |
| 2.00 | 6 | 6.0 | 75 | 20 | 0.5 | T0787O236ECR3 |
| 2.50 | 6 | 7.5 | 75 | 25 | 0.2 | T0984O295ECR1 |
| 2.50 | 6 | 7.5 | 75 | 25 | 0.3 | T0984O295ECR2 |
| 2.50 | 6 | 7.5 | 75 | 25 | 0.5 | T0984O295ECR3 |
| 3.00 | 6 | 9.0 | 75 | 30 | 0.2 | T1181O354ECR1 |
| 3.00 | 6 | 9.0 | 75 | 30 | 0.3 | T1181O354ECR2 |
| 3.00 | 6 | 9.0 | 75 | 30 | 0.5 | T1181O354ECR3 |
| 3.00 | 6 | 9.0 | 75 | 30 | 1.0 | T1181O354ECR4 |
| 4.00 | 6 | 12.0 | 75 | 30 | 0.2 | T1575O472ECR1 |
| 4.00 | 6 | 12.0 | 75 | 30 | 0.3 | T1575O472ECR2 |
| 4.00 | 6 | 12.0 | 75 | 30 | 0.5 | T1575O472ECR3 |
| 4.00 | 6 | 12.0 | 75 | 30 | 1.0 | T1575O472ECR4 |
| 5.00 | 6 | 15.0 | 75 | 40 | 0.2 | T1969O591ECR1 |
| 5.00 | 6 | 15.0 | 75 | 40 | 0.3 | T1969O591ECR2 |
| 5.00 | 6 | 15.0 | 75 | 40 | 0.5 | T1969O591ECR3 |
| 5.00 | 6 | 15.0 | 75 | 40 | 1.0 | T1969O591ECR4 |
| 5.00 | 6 | 15.0 | 75 | 40 | 1.5 | T1969O591ECR5 |
| 6.00 | 6 | 18.0 | 75 | 45 | 0.2 | T2362O709ECR1 |
| 6.00 | 6 | 18.0 | 75 | 45 | 0.3 | T2362O709ECR2 |
| 6.00 | 6 | 18.0 | 75 | 45 | 0.5 | T2362O709ECR3 |
| 6.00 | 6 | 18.0 | 75 | 45 | 1.0 | T2362O709ECR4 |
| 6.00 | 6 | 18.0 | 75 | 45 | 1.5 | T2362O709ECR5 |
| 6.00 | 6 | 18.0 | 75 | 45 | 2.0 | T2362O709ECR6 |
| 8.00 | 8 | 24.0 | 100 | 50 | 0.2 | T3150O945ECR1 |
| 8.00 | 8 | 24.0 | 100 | 50 | 0.3 | T3150O945ECR2 |
| 8.00 | 8 | 24.0 | 100 | 50 | 0.5 | T3150O945ECR3 |
| 8.00 | 8 | 24.0 | 100 | 50 | 1.0 | T3150O945ECR4 |
| 8.00 | 8 | 24.0 | 100 | 50 | 1.5 | T3150O945ECR5 |
| 8.00 | 8 | 24.0 | 100 | 50 | 2.0 | T3150O945ECR6 |
TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating
| Steel | Steel | Hardened Steel | Hardened Steel | Stainless | Cast Iron | Graphite | Copper | CFRP | Plastic | Thermoset | High Density | Nickel / | Titanium | |
| ~30HRC | 30~40HRC | ~55HRC | ~68HRC | Steel | Aluminum | Alloy | Plastic | Plastic | Cobalt | Alloy |
