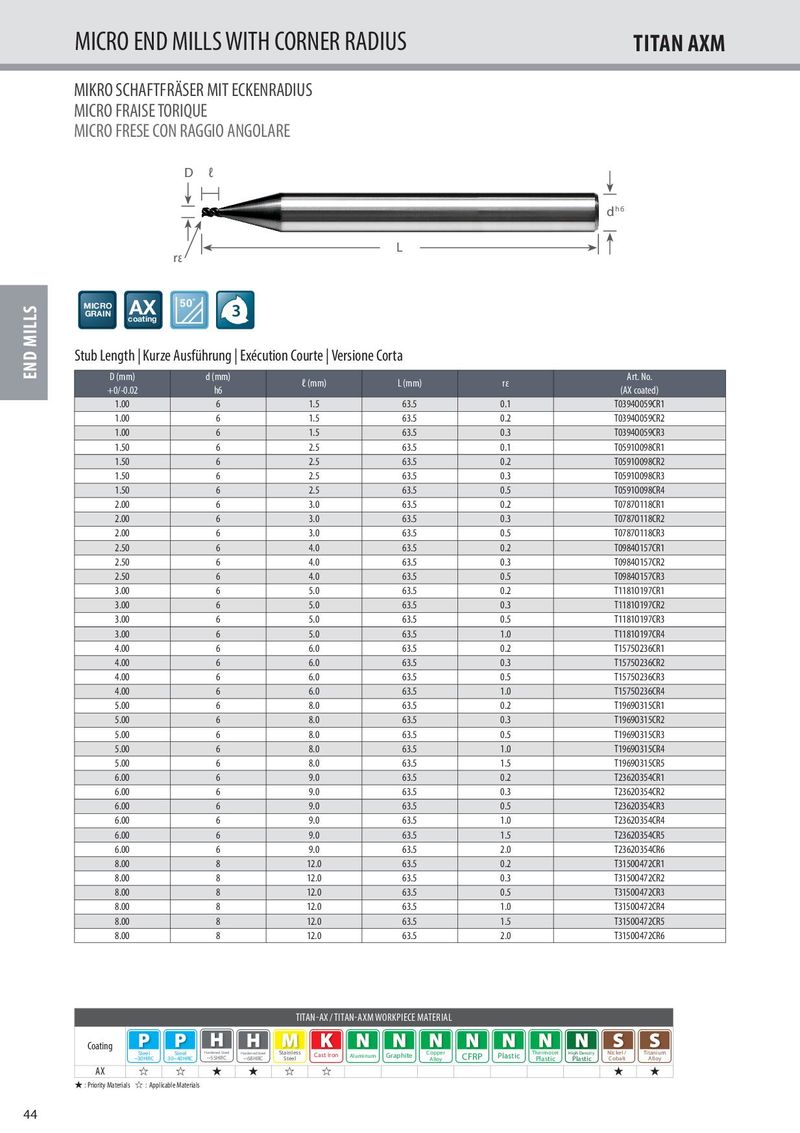

MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
D ℓ
d h6
L
rε
AX 50˚ 3
MICRO GRAIN coating Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta
| D (mm) | d (mm) | ℓ (mm) | L (mm) | rε | Art. No. |
| +0/-0.02 | h6 | (AX coated) | |||
| 1.00 | 6 | 1.5 | 63.5 | 0.1 | T0394O059CR1 |
| 1.00 | 6 | 1.5 | 63.5 | 0.2 | T0394O059CR2 |
| 1.00 | 6 | 1.5 | 63.5 | 0.3 | T0394O059CR3 |
| 1.50 | 6 | 2.5 | 63.5 | 0.1 | T0591O098CR1 |
| 1.50 | 6 | 2.5 | 63.5 | 0.2 | T0591O098CR2 |
| 1.50 | 6 | 2.5 | 63.5 | 0.3 | T0591O098CR3 |
| 1.50 | 6 | 2.5 | 63.5 | 0.5 | T0591O098CR4 |
| 2.00 | 6 | 3.0 | 63.5 | 0.2 | T0787O118CR1 |
| 2.00 | 6 | 3.0 | 63.5 | 0.3 | T0787O118CR2 |
| 2.00 | 6 | 3.0 | 63.5 | 0.5 | T0787O118CR3 |
| 2.50 | 6 | 4.0 | 63.5 | 0.2 | T0984O157CR1 |
| 2.50 | 6 | 4.0 | 63.5 | 0.3 | T0984O157CR2 |
| 2.50 | 6 | 4.0 | 63.5 | 0.5 | T0984O157CR3 |
| 3.00 | 6 | 5.0 | 63.5 | 0.2 | T1181O197CR1 |
| 3.00 | 6 | 5.0 | 63.5 | 0.3 | T1181O197CR2 |
| 3.00 | 6 | 5.0 | 63.5 | 0.5 | T1181O197CR3 |
| 3.00 | 6 | 5.0 | 63.5 | 1.0 | T1181O197CR4 |
| 4.00 | 6 | 6.0 | 63.5 | 0.2 | T1575O236CR1 |
| 4.00 | 6 | 6.0 | 63.5 | 0.3 | T1575O236CR2 |
| 4.00 | 6 | 6.0 | 63.5 | 0.5 | T1575O236CR3 |
| 4.00 | 6 | 6.0 | 63.5 | 1.0 | T1575O236CR4 |
| 5.00 | 6 | 8.0 | 63.5 | 0.2 | T1969O315CR1 |
| 5.00 | 6 | 8.0 | 63.5 | 0.3 | T1969O315CR2 |
| 5.00 | 6 | 8.0 | 63.5 | 0.5 | T1969O315CR3 |
| 5.00 | 6 | 8.0 | 63.5 | 1.0 | T1969O315CR4 |
| 5.00 | 6 | 8.0 | 63.5 | 1.5 | T1969O315CR5 |
| 6.00 | 6 | 9.0 | 63.5 | 0.2 | T2362O354CR1 |
| 6.00 | 6 | 9.0 | 63.5 | 0.3 | T2362O354CR2 |
| 6.00 | 6 | 9.0 | 63.5 | 0.5 | T2362O354CR3 |
| 6.00 | 6 | 9.0 | 63.5 | 1.0 | T2362O354CR4 |
| 6.00 | 6 | 9.0 | 63.5 | 1.5 | T2362O354CR5 |
| 6.00 | 6 | 9.0 | 63.5 | 2.0 | T2362O354CR6 |
| 8.00 | 8 | 12.0 | 63.5 | 0.2 | T3150O472CR1 |
| 8.00 | 8 | 12.0 | 63.5 | 0.3 | T3150O472CR2 |
| 8.00 | 8 | 12.0 | 63.5 | 0.5 | T3150O472CR3 |
| 8.00 | 8 | 12.0 | 63.5 | 1.0 | T3150O472CR4 |
| 8.00 | 8 | 12.0 | 63.5 | 1.5 | T3150O472CR5 |
| 8.00 | 8 | 12.0 | 63.5 | 2.0 | T3150O472CR6 |
TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating
| Steel | Steel | Hardened Steel | Hardened Steel | Stainless | Cast Iron | Graphite | Copper | CFRP | Plastic | Thermoset | High Density | Nickel / | Titanium | |
| ~30HRC | 30~40HRC | ~55HRC | ~68HRC | Steel | Aluminum | Alloy | Plastic | Plastic | Cobalt | Alloy |
