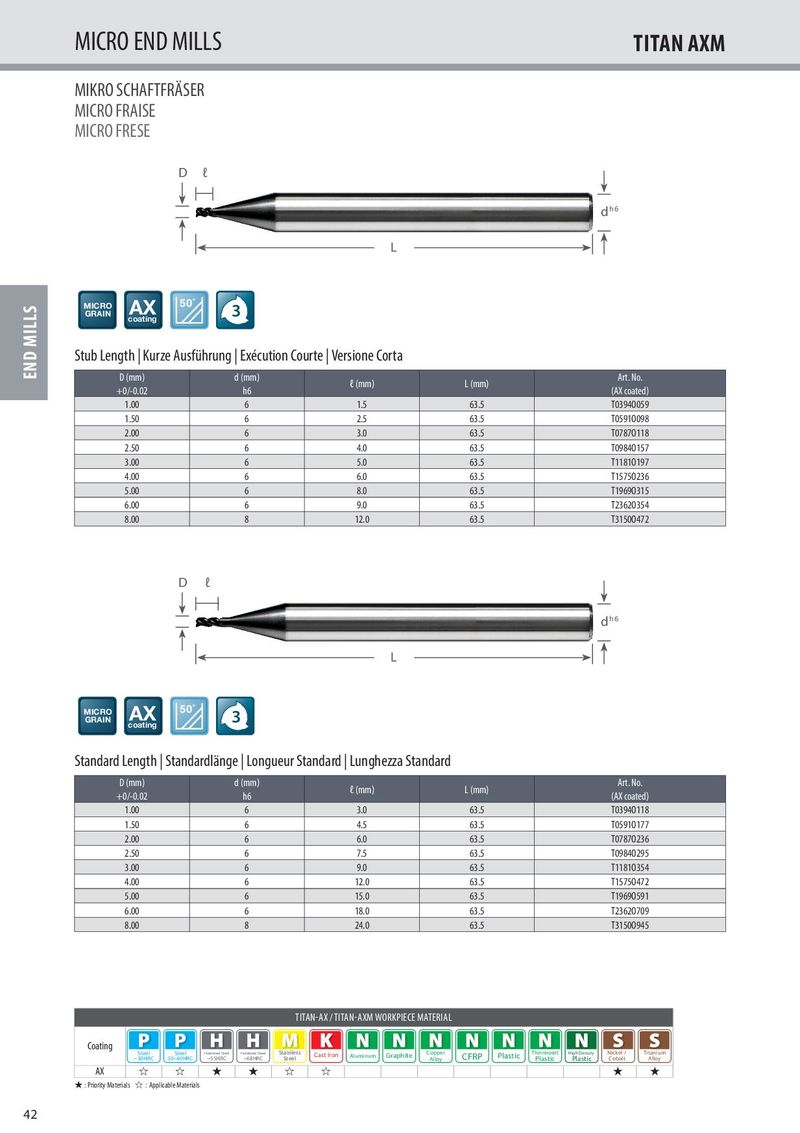

Каталог микроинструмента Kyocera 2015-2016 - страница 44

MICRO END MILLS TITAN AXM MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE D ℓ h6 d L MICRO 50˚ GRAIN AX 3 coating Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta END MILLS D (mm) d (mm) Art. No. ℓ (mm) L (mm) +0/-0.02 h6 (AX coated) 1.00 6 1.5 63.5 T0394O059 1.50 6 2.5 63.5 T0591O098 2.00 6 3.0 63.5 T0787O118 2.50 6 4.0 63.5 T0984O157 3.00 6 5.0 63.5 T1181O197 4.00 6 6.0 63.5 T1575O236 5.00 6 8.0 63.5 T1969O315 6.00 6 9.0 63.5 T2362O354 8.00 8 12.0 63.5 T3150O472 D ℓ h6 d L MICRO 50˚ GRAIN AX 3 coating Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard D (mm) d (mm) Art. No. ℓ (mm) L (mm) +0/-0.02 h6 (AX coated) 1.00 6 3.0 63.5 T0394O118 1.50 6 4.5 63.5 T0591O177 2.00 6 6.0 63.5 T0787O236 2.50 6 7.5 63.5 T0984O295 3.00 6 9.0 63.5 T1181O354 4.00 6 12.0 63.5 T1575O472 5.00 6 15.0 63.5 T1969O591 6.00 6 18.0 63.5 T2362O709 8.00 8 24.0 63.5 T3150O945 TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Copper High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AX ☆ ☆ ★ ★ ☆ ☆ ★ ★ ★ : Priority Materials ☆ : Applicable Materials 42 2015_KUTDE_MIT_Catalog_TZZ00058.indd 42 04.03.2016 07:52:50
