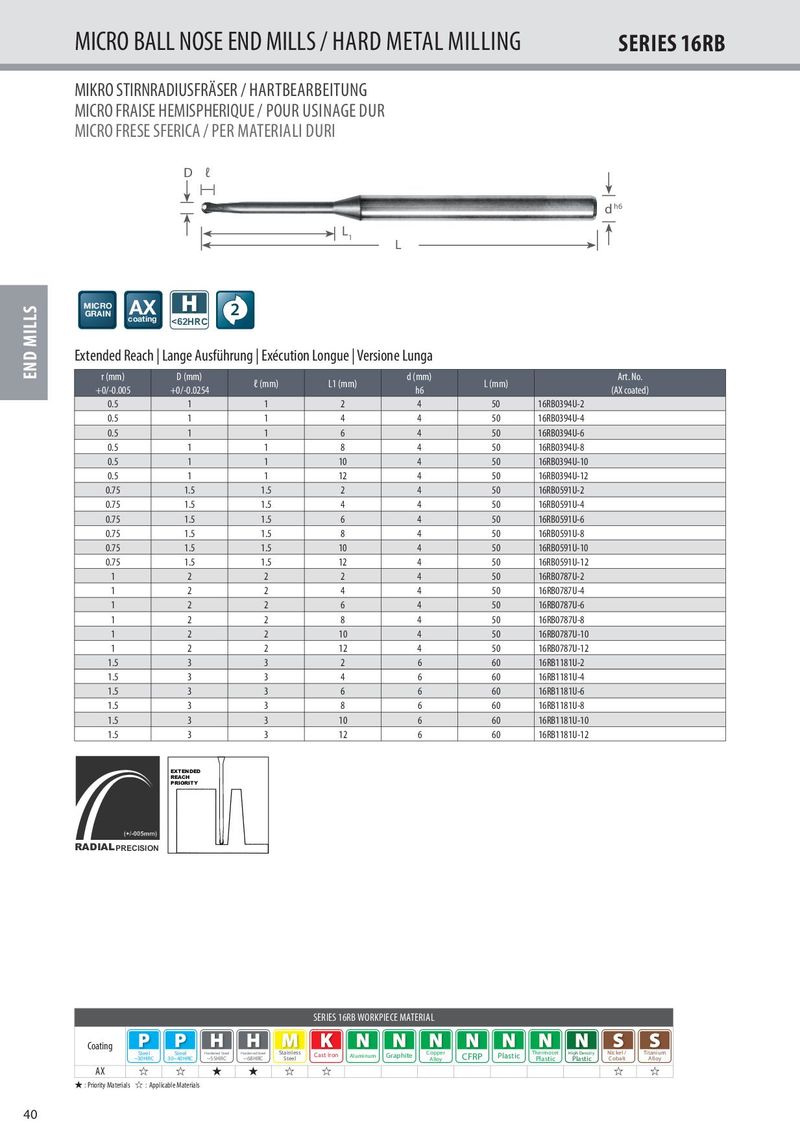

MICRO BALL NOSE END MILLS / HARD METAL MILLING SERIES 16RB MIKRO STIRNRADIUSFRÄSER / HARTBEARBEITUNG MICRO FRAISE HEMISPHERIQUE / POUR USINAGE DUR MICRO FRESE SFERICA / PER MATERIALI DURI D ℓ h6 d L 1 L MICRO GRAIN AX 2 coating <62HRC Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga END MILLS r (mm) D (mm) d (mm) Art. No. ℓ (mm) L1 (mm) L (mm) +0/-0.005 +0/-0.0254 h6 (AX coated) 0.5 1 1 2 4 50 16RB0394U-2 0.5 1 1 4 4 50 16RB0394U-4 0.5 1 1 6 4 50 16RB0394U-6 0.5 1 1 8 4 50 16RB0394U-8 0.5 1 1 10 4 50 16RB0394U-10 0.5 1 1 12 4 50 16RB0394U-12 0.75 1.5 1.5 2 4 50 16RB0591U-2 0.75 1.5 1.5 4 4 50 16RB0591U-4 0.75 1.5 1.5 6 4 50 16RB0591U-6 0.75 1.5 1.5 8 4 50 16RB0591U-8 0.75 1.5 1.5 10 4 50 16RB0591U-10 0.75 1.5 1.5 12 4 50 16RB0591U-12 1 2 2 2 4 50 16RB0787U-2 1 2 2 4 4 50 16RB0787U-4 1 2 2 6 4 50 16RB0787U-6 1 2 2 8 4 50 16RB0787U-8 1 2 2 10 4 50 16RB0787U-10 1 2 2 12 4 50 16RB0787U-12 1.5 3 3 2 6 60 16RB1181U-2 1.5 3 3 4 6 60 16RB1181U-4 1.5 3 3 6 6 60 16RB1181U-6 1.5 3 3 8 6 60 16RB1181U-8 1.5 3 3 10 6 60 16RB1181U-10 1.5 3 3 12 6 60 16RB1181U-12 EXTENDED REACH PRIORITY RADIAL PRECISION SERIES 16RB WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AX ☆ ☆ ★ ★ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 40 2015_KUTDE_MIT_Catalog_TZZ00058.indd 40 04.03.2016 07:52:45
