Каталог микроинструмента Kyocera 2015-2016 - страница 41

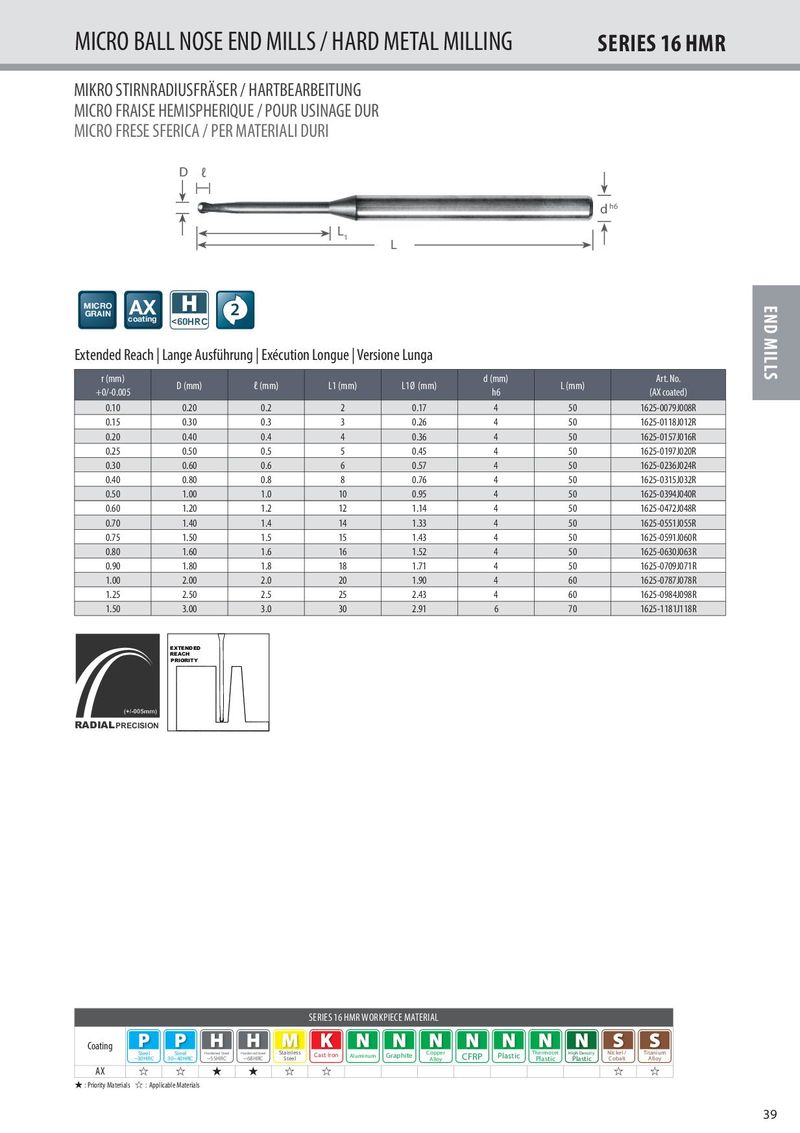

MICRO BALL NOSE END MILLS / HARD METAL MILLING SERIES 16 HMR MIKRO STIRNRADIUSFRÄSER / HARTBEARBEITUNG MICRO FRAISE HEMISPHERIQUE / POUR USINAGE DUR MICRO FRESE SFERICA / PER MATERIALI DURI D ℓ h6 d L 1 L MICRO END MILLS GRAIN AX 2 coating <60HRC Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga r (mm) d (mm) Art. No. D (mm) ℓ (mm) L1 (mm) L1Ø (mm) L (mm) +0/-0.005 h6 (AX coated) 0.10 0.20 0.2 2 0.17 4 50 1625-0079J008R 0.15 0.30 0.3 3 0.26 4 50 1625-0118J012R 0.20 0.40 0.4 4 0.36 4 50 1625-0157J016R 0.25 0.50 0.5 5 0.45 4 50 1625-0197J020R 0.30 0.60 0.6 6 0.57 4 50 1625-0236J024R 0.40 0.80 0.8 8 0.76 4 50 1625-0315J032R 0.50 1.00 1.0 10 0.95 4 50 1625-0394J040R 0.60 1.20 1.2 12 1.14 4 50 1625-0472J048R 0.70 1.40 1.4 14 1.33 4 50 1625-0551J055R 0.75 1.50 1.5 15 1.43 4 50 1625-0591J060R 0.80 1.60 1.6 16 1.52 4 50 1625-0630J063R 0.90 1.80 1.8 18 1.71 4 50 1625-0709J071R 1.00 2.00 2.0 20 1.90 4 60 1625-0787J078R 1.25 2.50 2.5 25 2.43 4 60 1625-0984J098R 1.50 3.00 3.0 30 2.91 6 70 1625-1181J118R EXTENDED REACH PRIORITY RADIAL PRECISION SERIES 16 HMR WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper High Density Nickel / Titanium Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AX ☆ ☆ ★ ★ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 39 2015_KUTDE_MIT_Catalog_TZZ00058.indd 39 04.03.2016 07:52:43
